Pro Audio AM860 - 1 Description and Technical Specifications; Operating Elements and Connections

3AM860
8
9 10 11 12 13 14 15 16 17

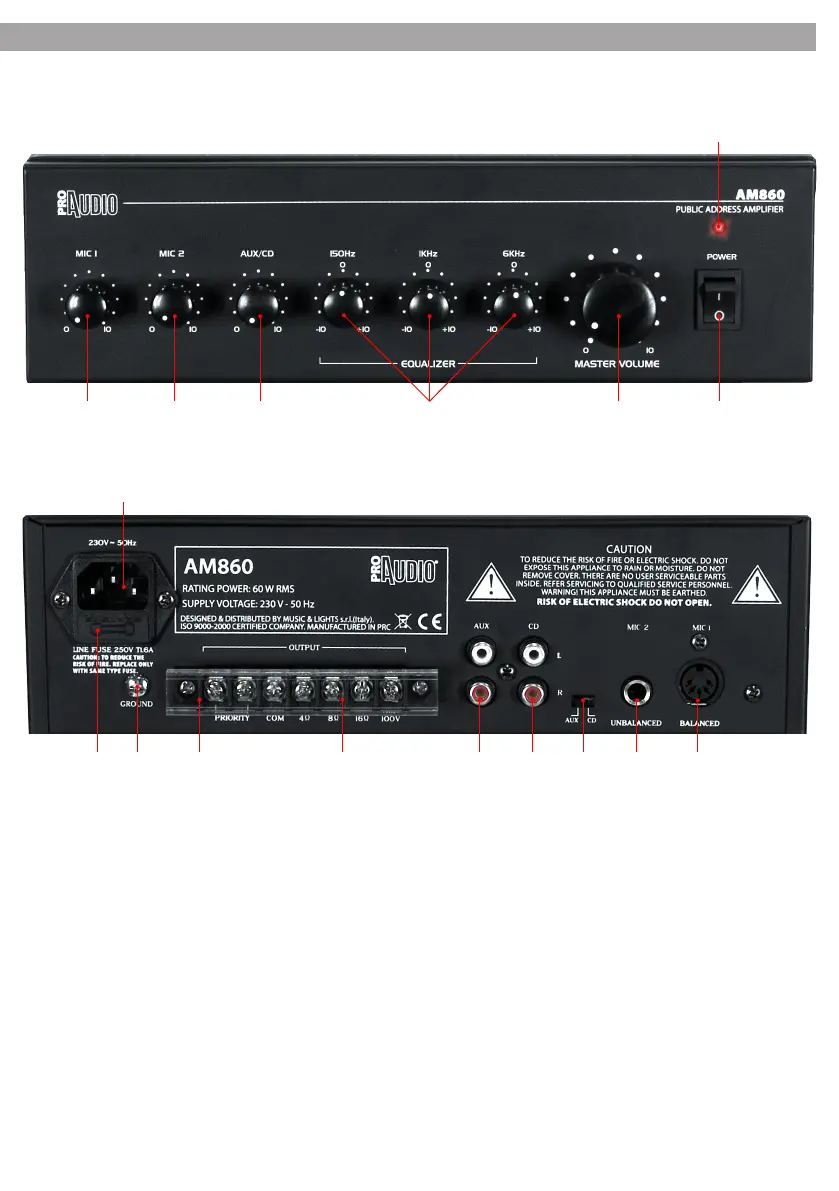

1.1 Operating elements and connections
1. Mic 1 Volume control.
2. Mic 2 Volume control.
3. Aux/CD Volume control.
4. Equalizer control.
5. Master Volume.
6. Power On/Off Switch.
7. Power On/Off switch.
8. Mains input socket.
9. AC fuse holder.
10. Ground connection screw.
11. Manual priority terminals.
12. Loudspeaker output terminals.
13. Aux input( 2 x RCA phono).
14. CD input ( 2 x RCA phono).
15. Aux/CD Selector.
16. Mic 2 input (1/4” mono jack/unbalanced).
17. Mic 1 input (DIN / balanced)
- 1 - DESCRIPTION AND TECHNICAL SPECIFICATIONS
FRONT VIEW
REAR VIEW
321 4 5 6
7
