10. Tighten the previously installed 9/16” and 3/8”
hardware.
11. Install the U-bolt around the rear end axle tube
and secure to the rear track bar relocation
bracket (91-5841) using the supplied 1/2”
washer and nut. See ILLUSTRATION 2.
12. Torque the 3/8”, 1/2” U-bolt and 9/16” track
bar hardware according to the torque chart on
page 9.
13. Install the rear bump stop (91-5289) onto the
axle pad. Secure through the existing holes in
the axle pad using the (2) supplied 5/16” X
1” bolts and hardware. Torque bolts
accord-
ing to the torque chart on page 9.
14. Carefully lower the rear axle to ease in the
new rear coil spring installation. Using the
factory isolators install the Pro Comp rear
coil springs (55207) into the spring buckets
and raise the rear axle into place. Make sure
the coil spring seats properly on the lower
spring perch.
NOTE: Be sure to reinstall the factory
isolators before raising the springs into place.
15. Install your new Pro Comp rear shocks
(MX6155 w/body end up or 924507 w/shaft
end up) using the OE hardware. Torque the
upper mounting hardware to 20 ft./lbs. and
the lower to 35 ft./lbs.
16. Reinstall the sway bar end links using the
previously removed OE hardware.
17. Reinstall the rear brake line brackets to the
vehicle using the previously removed OE
hardware.
18. On both sides of the vehicle, check the routing
of the brake lines and the ABS wire harnesses.
There must be no pinching, rubbing, or
stretching of either component. Ensure lines
are also clear of any moving parts. Reposition
lines if needed.
19. Reinstall the rear wheels and lower the vehi-
cle to the ground. Torque the lug nuts ac-
cording to the wheel manufacturers recom-
mendations.
Rear Axle
Rear
Track
Bar
91-5841 Rear Track
Bar Relocation Bracket
13-90496
U-Bolt
9/16” X 3
1/4” Bolt
90-3718
Cam Bolt
1/2” U-Bolt Hardware
OE Track
Bar Mount
Pocket
Rear Track
Bar Spacer
90-2650
Cam
Hardware
3/8” X
1” Bolts

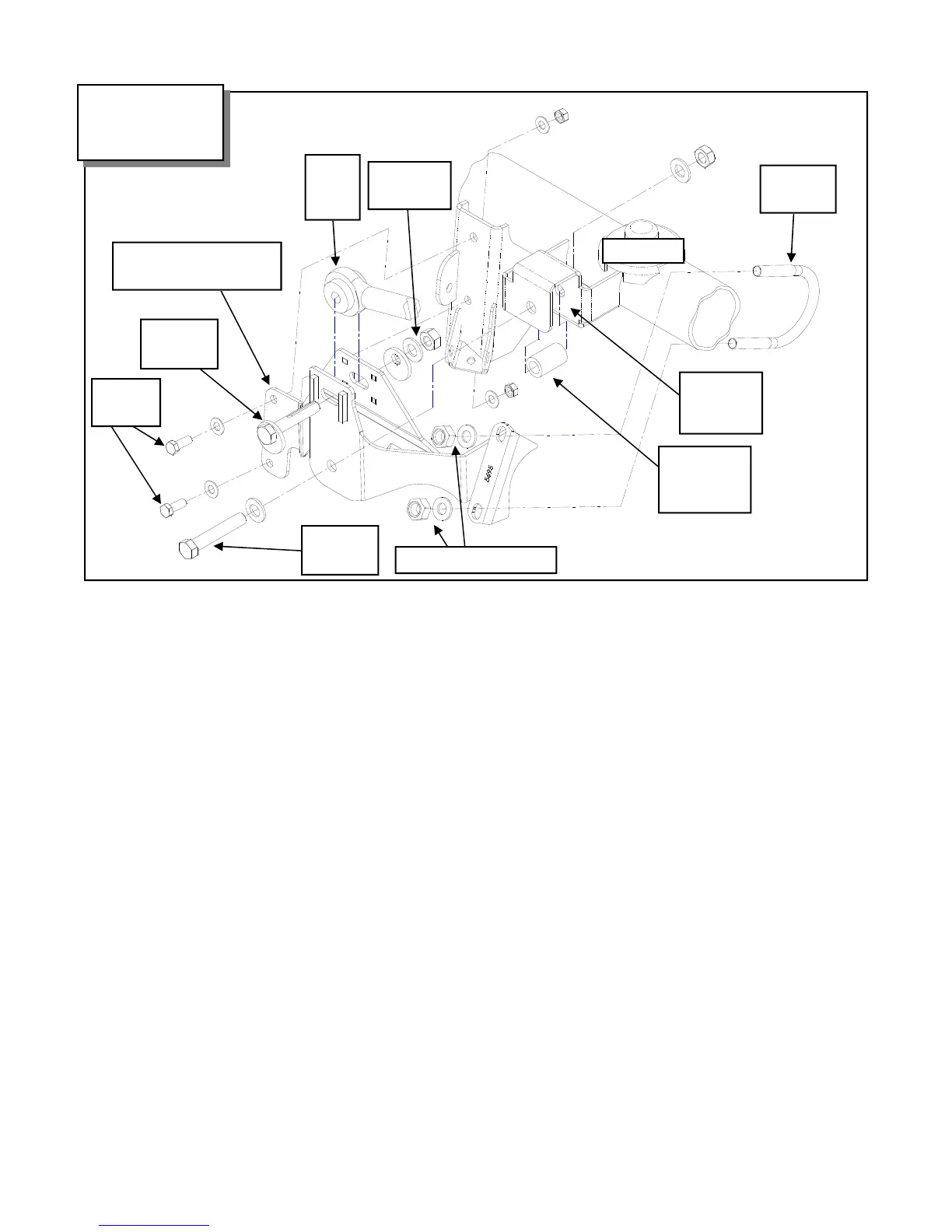

Illustration 2
Rear Track Bar
Relocation Bracket
To Next Page
