GP4000 Series Hardware Manual
55
Interfit bracket is #4-40 (UNC).
Recommendations:
z Cable Connector: XM2D-0901 manufactured by OMRON Corporation.
z Cable Cover: XM2S-0913 manufactured by OMRON Corporation.
z Jack Screw (#4-40 UNC): XM2Z-0073 manufactured by OMRON Corporation.
GP-4203T: D-Sub 9 pin socket connector via a RS-485, PROFIBUS, or MPI cable.
NOTE:
*1
You can supply power to the Siemens PROFIBUS connector only. You
cannot supply power to the device/PLC.
*2
The SG and FG terminals are isolated.
Interfit bracket is #4-40 (UNC).
Recommendations:
z Cable Connector: XM2A-0901 manufactured by OMRON Corporation.
z Cable Cover: XM2S-0913 manufactured by OMRON Corporation.
z Jack Screw (#4-40 UNC): XM2Z-0073 manufactured by OMRON Corporation.
NOTICE
EQUIPMENT DAMAGE
Use only the rated current.
Failure to follow these instructions can result in equipment damage.
CAUTION
LOSS OF COMMUNICATION
z All connections to the communication ports must not put excessive stress on the
ports.
z Securely attach communication cables to the panel wall or cabinet.
z Use only D-Sub 9 pin cables with a locking tab in good condition.
Failure to follow these instructions can result in injury or equipment damage.

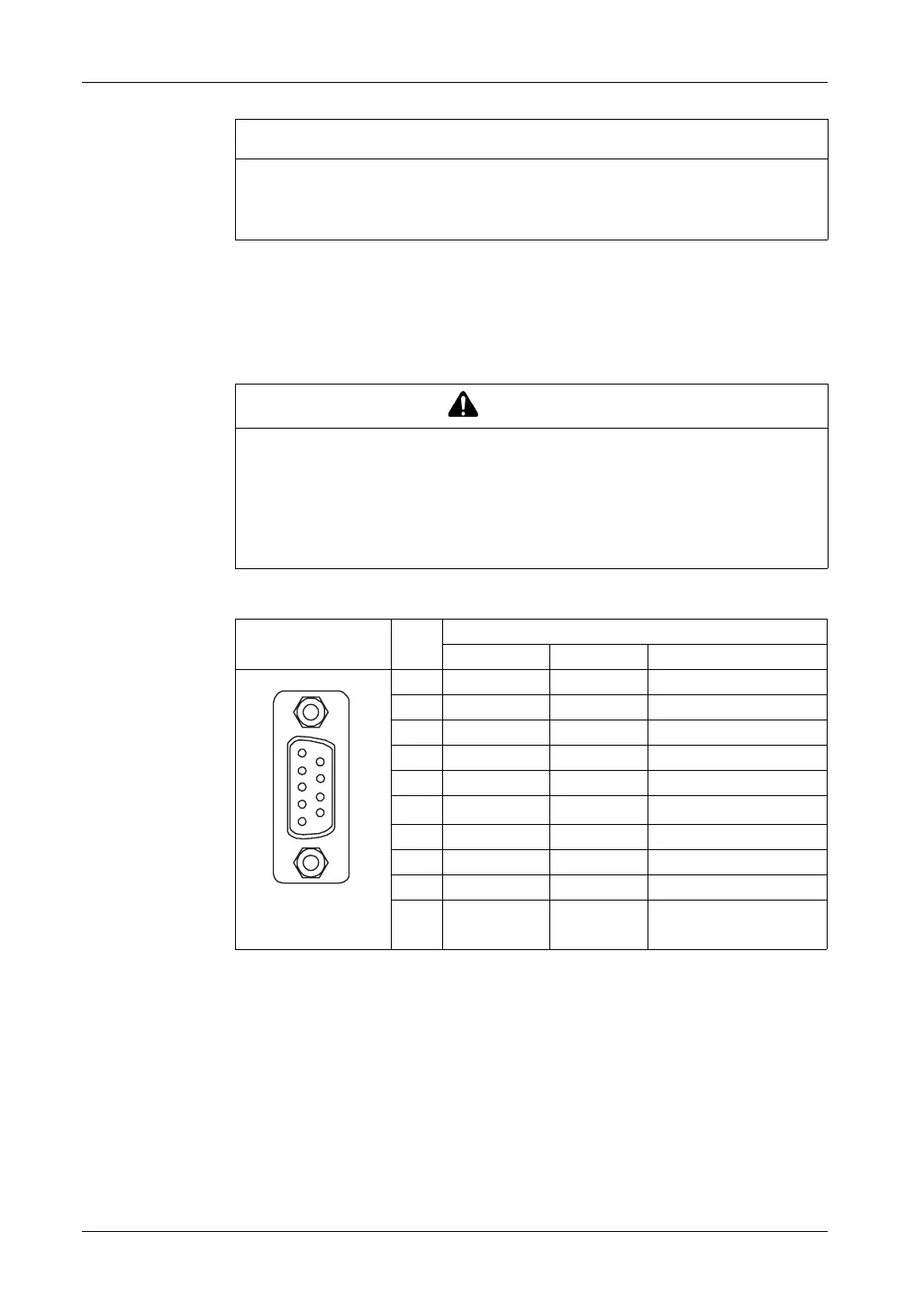

Pin Connection Pin
No.
RS-485 (isolation)
Signal Name Direction Meaning
1 NC – no connection
2 NC – no connection
3 Line A Input/Output Data A (+)
4 RS(RTS) Output Request to Send
5 SG – Signal Ground
6VCC –
+5V±5% External Output
*1
7 NC – no connection
8 Line B Input/Output Data B (-)
9 NC – no connection
Shell FG –
Frame Ground
*2
(Not
connected with SG)
6
9
1
5
(GP unit side)
To Next Page
