Pro-Form 625 Treadmill - Page 23

103 4 U-nut
104 2 Base Endcap
105 1 Shock
106 1 Choke
107 2 3 1/2” Bolt
108 4 1” Tek Screw
109 1 Pulse Bar
110 1 Left Foam Grip
111 1 Trim Guard
112 1 Shield
113 1 Small Bolt
114* 2 Extension Leg Assembly
115 1 Base
116 1 Console Base Bottom
117 2 Upright Cap
118 2 Incline Motor Spacer
119 2 Base Pad
120 1 Right Frame Guide
121 1 Pulse Wire
122 1 Left Upright
123 4 Upright Washer
124 4 2 1/2” Bolt
# 1 8” White Wire, 2F
# 1 4” White Wire, M/F
# 1 8” Blue Wire, 2F
# 1 4” Blue Wire, 2F
# 1 4” Black Wire, 2F
# 1 12” Green Wire, F/Ring
# 1 4” Green Wire, F/Ring
# 1 8” Green Wire, 2 Ring
# 1 4” Red Wire, M/F
# 1 User's Manual
# These parts are not illustrated
* Includes all parts shown in the box
Key No. Qty. Description Key No. Qty. Description
1/2” Tek Screw (76)–8
Wheel Nut (15)–2
Washer (123)–4
1 1/4” Tek Screw (79)–4
1/2” Screw (46)–7
1” Tek Screw
(108)–4
3 1/2” Bolt (107)–2
Wheel Bolt (86)–2
2 1/2” Bolt (124)–4
3/4” Tek Screw
(101)–2

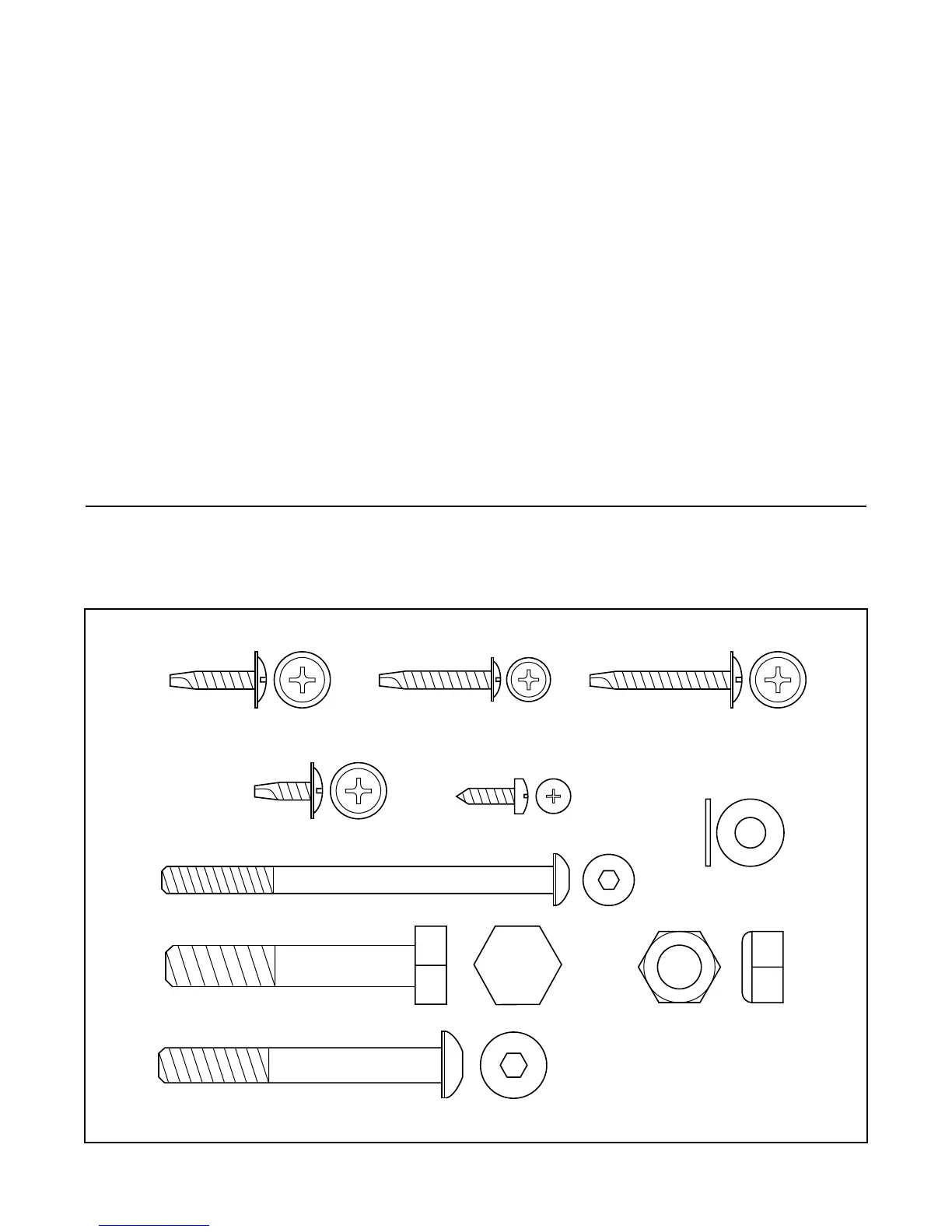

Use the drawings below to identify small parts used during the assembly process (see pages 6–9).
PART IDENTIFICATION CHART
23
