8

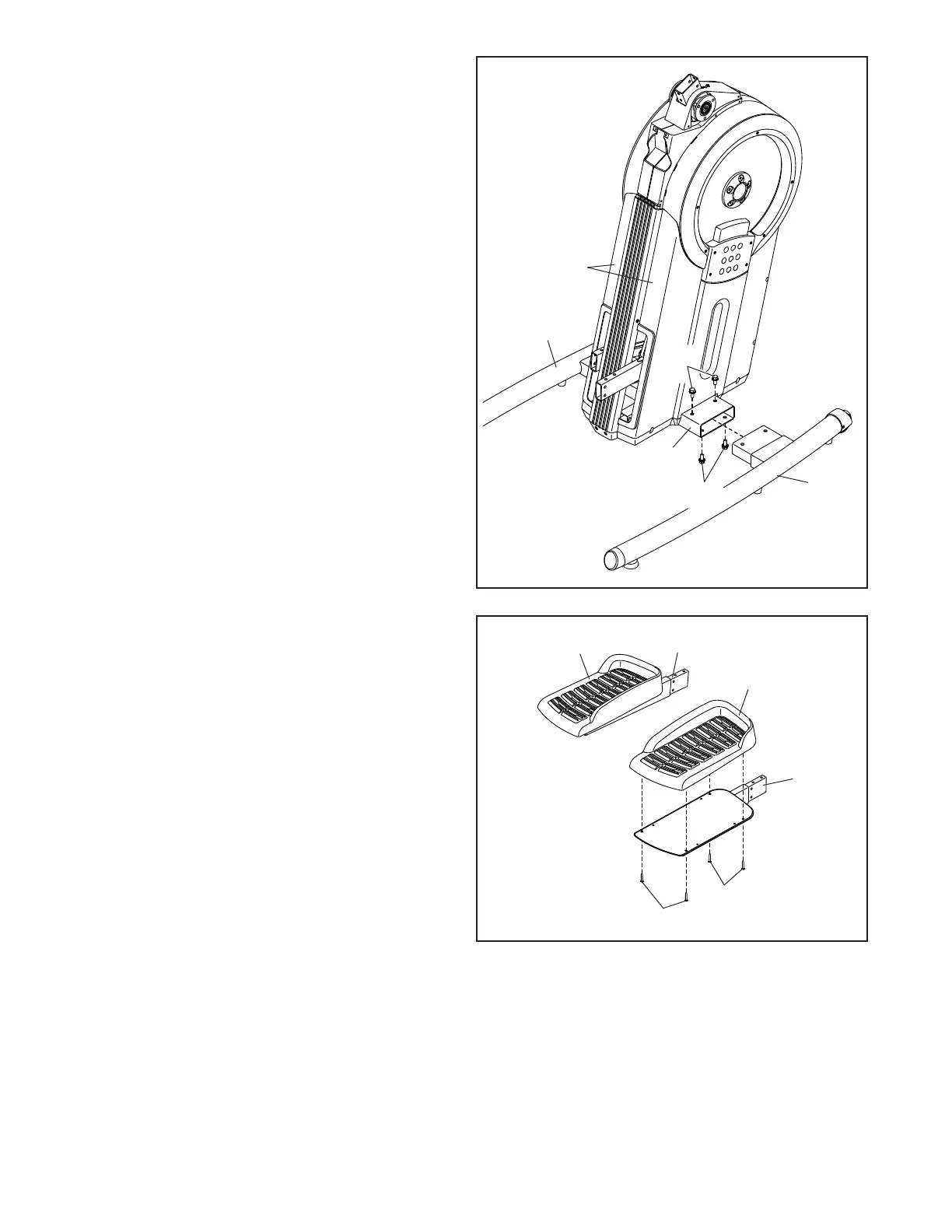

3. Identify the Right and Left Pedal Bases (2, 3)
and the Right and Left Pedals (22, 23), and ori-
ent them as shown.
Attach the Right Pedal (22) to the Right Pedal
Base (2) with four M6 x 12mm Screws (108);
start all the Screws, and then tighten them.
Attach the Left Pedal (23) to the Left Pedal
Base (3) in the same way.
3
2
23
22
2
3
108
108
1
8
9
110
50, 51
2. Identify the Right and Left Stabilizers (8, 9) and
orient them as shown.
Have a second person hold the Frame (1) and
tip it to the left. IMPORTANT: Be careful not to
damage the Shields (50, 51).
Attach the Right Stabilizer (8) to the Frame
(1) with four M10 x 20mm Screws (110); start
all the Screws, and then tighten them.
Note: Disregard the two unthreaded holes in the
underside of the Frame.
IMPORTANT: Make sure to tighten the
M10 x 20mm Screws (110) firmly and
completely.
Have the second person lower the Frame (1)
to the floor. IMPORTANT: Be careful not to
damage the Shields (50, 51).
Attach the Left Stabilizer (9) in the same way.
110
