HOW TO CONNECT YOUR VCR
N
ote: If your VCR has an unused AUDIO OUT jack,
see instruction A below. If the AUDIO OUT jack is
b
eing used, see instruction B. If you have a TV
with a built-in VCR, see instruction B. If your VCR
is connected to your home stereo, see HOW TO
CONNECT YOUR HOME STEREO on page 16.

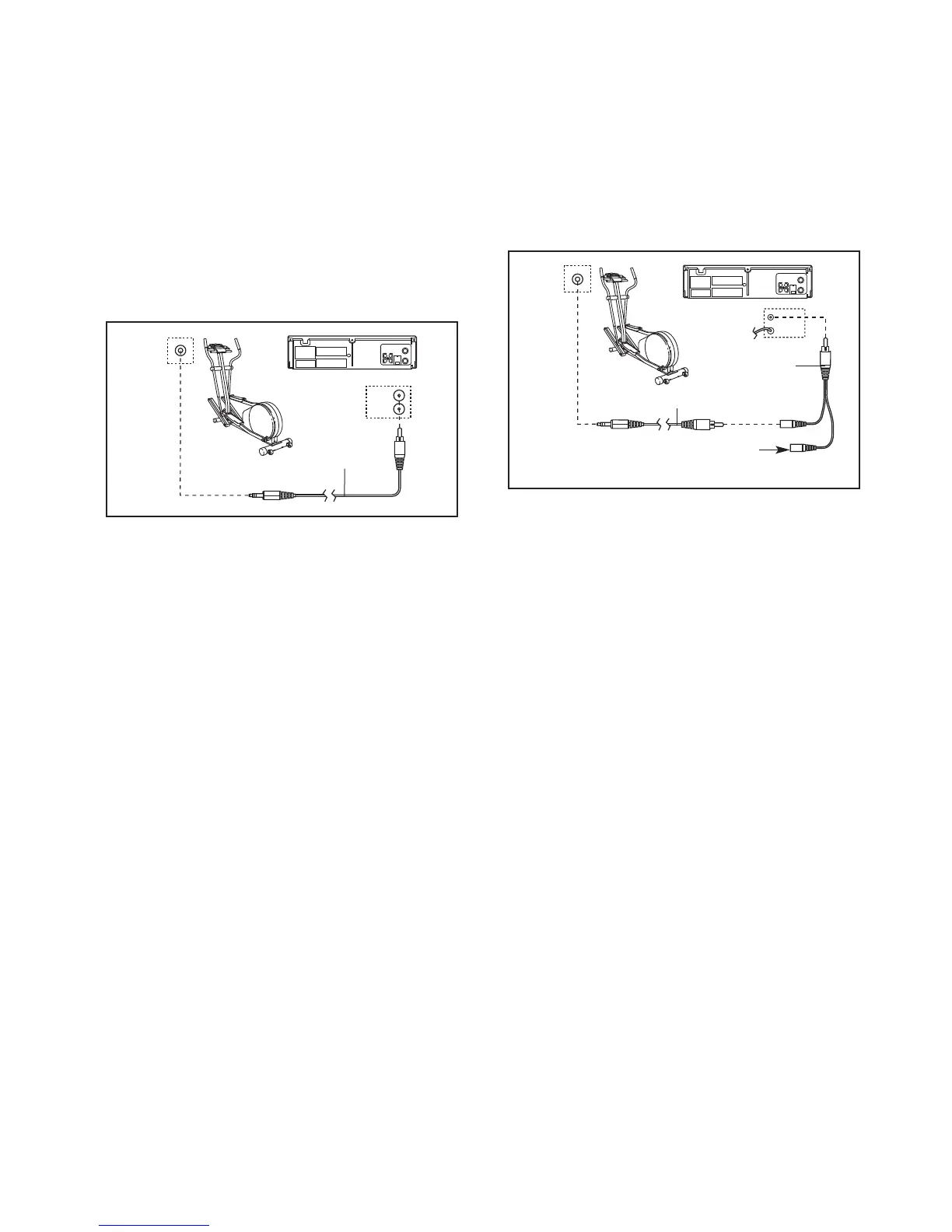

A. Plug one end of a 1/8” to RCA stereo audio cable
(available at electronics stores) into the jack
beneath the console. Plug the other end of the
cable into the AUDIO OUT jack on your VCR.
B. Plug one end of a 1/8” to RCA stereo audio cable
(available at electronics stores) into the jack
b
eneath the console. Plug the other end of the
cable into an RCA Y-adapter (available at electron-
i
cs stores). Next, remove the wire that is currently
plugged into the AUDIO OUT jack on your VCR
and plug the wire into the unused side of the Y-
adapter. Plug the Y-adapter into the AUDIO OUT
jack on your VCR.
AUDIO OUT
RIGHT
LEFT
VIDEO AUDIO
A
NT. IN
RF OUT
IN
O
UT
CH
3
4
Audio
Cable
A
V
IDEO AUDIO
ANT. IN
R
F OUT
I
N
OUT
CH
34
A
Audio Cable
B
Wire removed from
AUDIO OUT jack
RCA
Y-adapter
