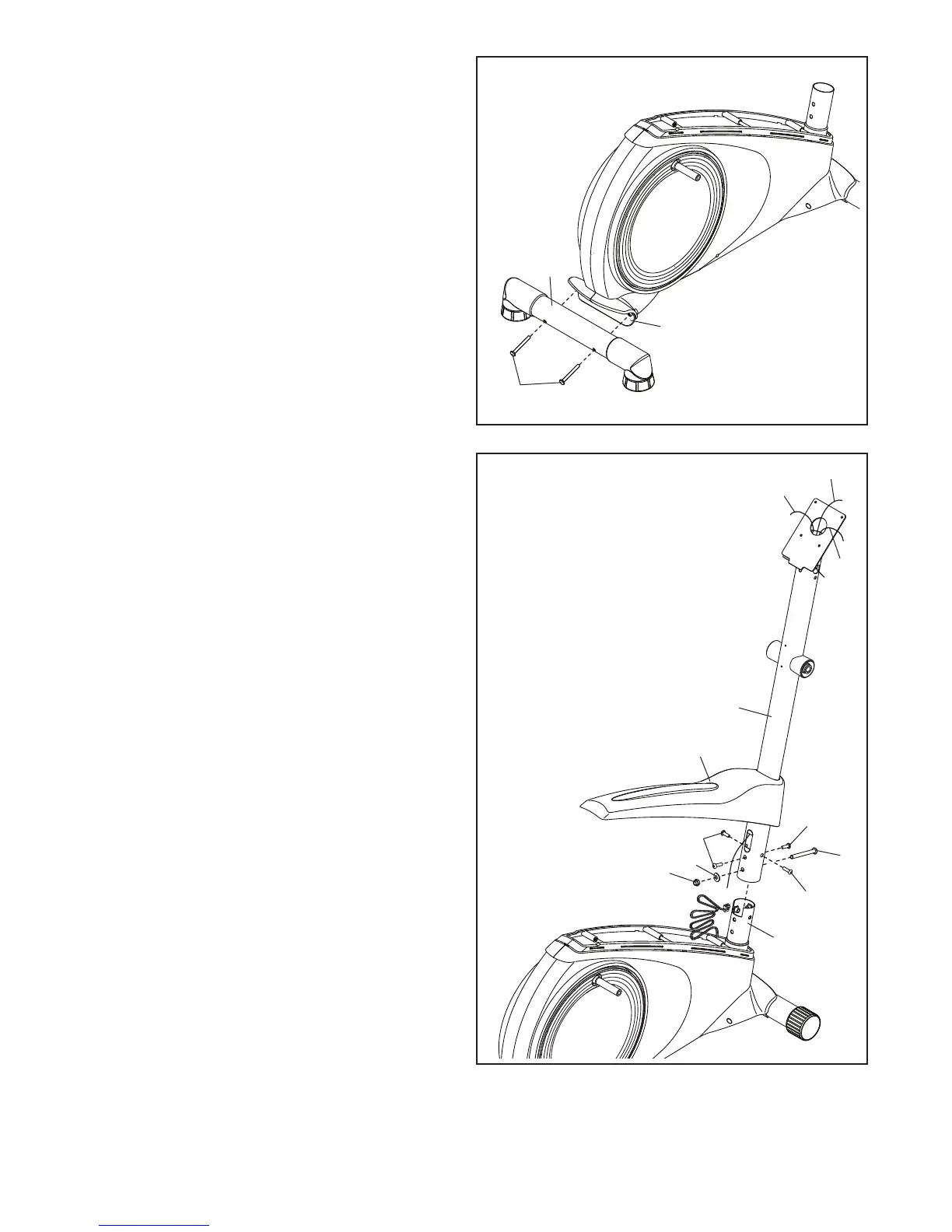

3. Orient the Rear Stabilizer (9) as indicated by the
sticker.
While a second person lifts the rear of the Frame
(1), attach the Rear Stabilizer (9) to the Frame
with two M10 x 68mm Screws (34).
34
9
1
3
4
4. Orient the Upright (2) and the Top Shield (41)
as shown. Slide the Top Shield upward onto the
Upright. Do not remove the wire ties (B, C)
from the Upright.
Next, slide the Upright (2) onto the Frame (1).
Attach the Upright (2) with four M10 x 20mm
Screws (40), an M10 x 77mm Bolt (7), an M10
Curved Washer (90), and an M10 Locknut (33);
do not tighten the Screws and the Bolt yet.
2
41
B
B
C
1
40
40
7
33
90
40
