6.1
General
Warning!
To
guarantee
that
the
equipment
functions
properly,
the
following
points
must
be
ensured:
-
The
gate
or
door
is
installed
and
operational.
-
The
com
mand
and
safety
devices
are
installed
and
ready
for
operation.
-
The
control
housing
with
the
CS
300
FU
control
is
installed.
Information:
For
the
installation
of
the
gate!door,
the
MFZ
drive
motor
and
the
command
and
safety
devices,
the
re
leva
nt
manufacturer's
instructions
are
to
be
adhered
to.

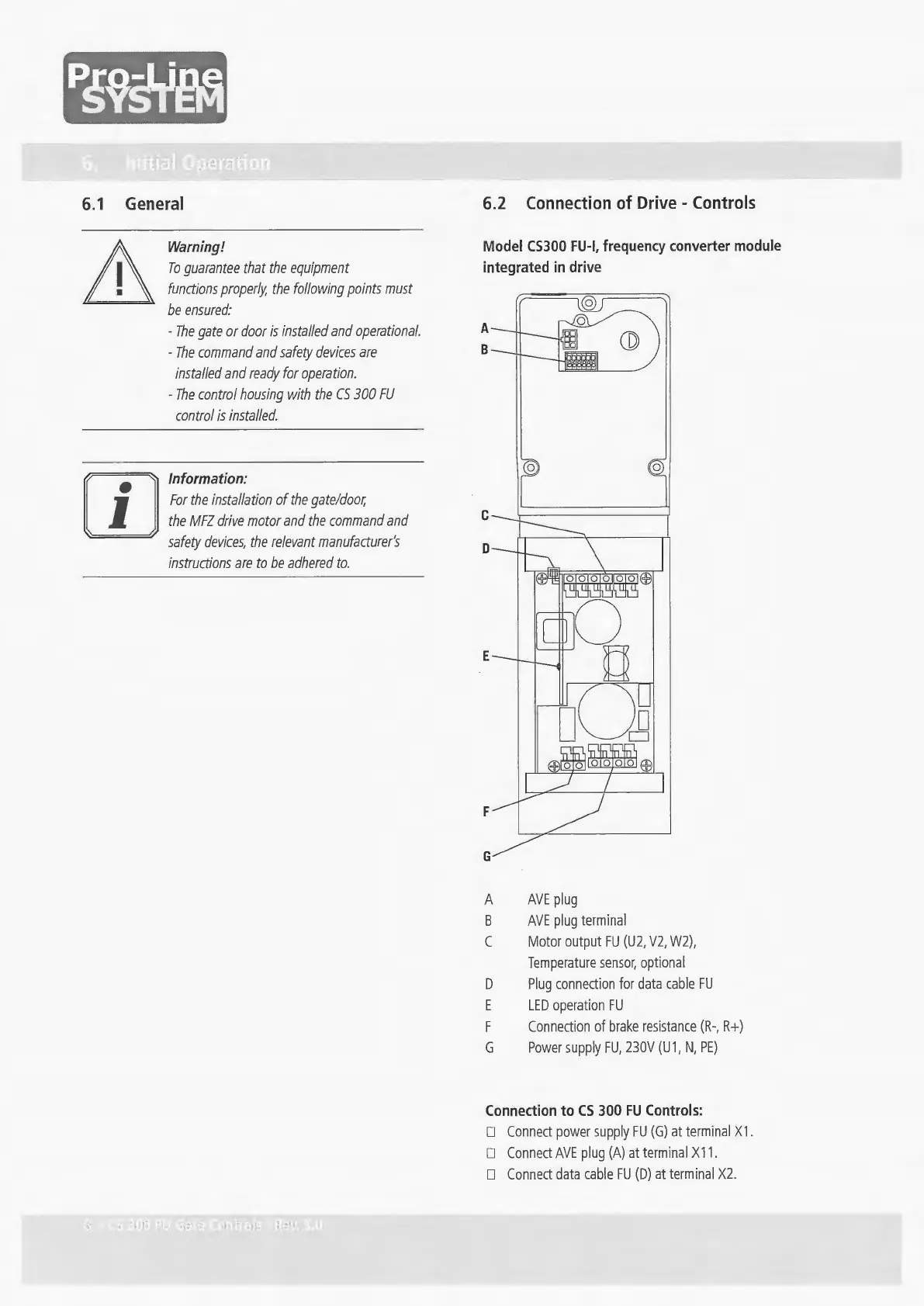

6.2
Connection
of
Drive
-
Controls
Model
CS300
FU-l,
frequency
converter
module
integrated
in
drive
A
B
c
D
E
F
G
A
AVE
plug
B
AVE
plug
terminal
C
Motor
output
FU
(U2,
V2,
W2),
Temperature
sensor,
optional
D
Plug
connection
for
data
cable
FU
E
LED
operation
FU
F
Connection
of
brake
resistance
(R-,
R+)
G
Power
supply
FU,
230V
(U
1,
N,
PE)
Connection
to
CS
300
FU
Controls:
o
Connect
power
supply
FU
(G)
at
terminal
Xl.
o
Connect
AVE
plug
(A)
at
terminal
X11.
O
Connect
data
cable
FU
(D)
at
terminal
X2.
