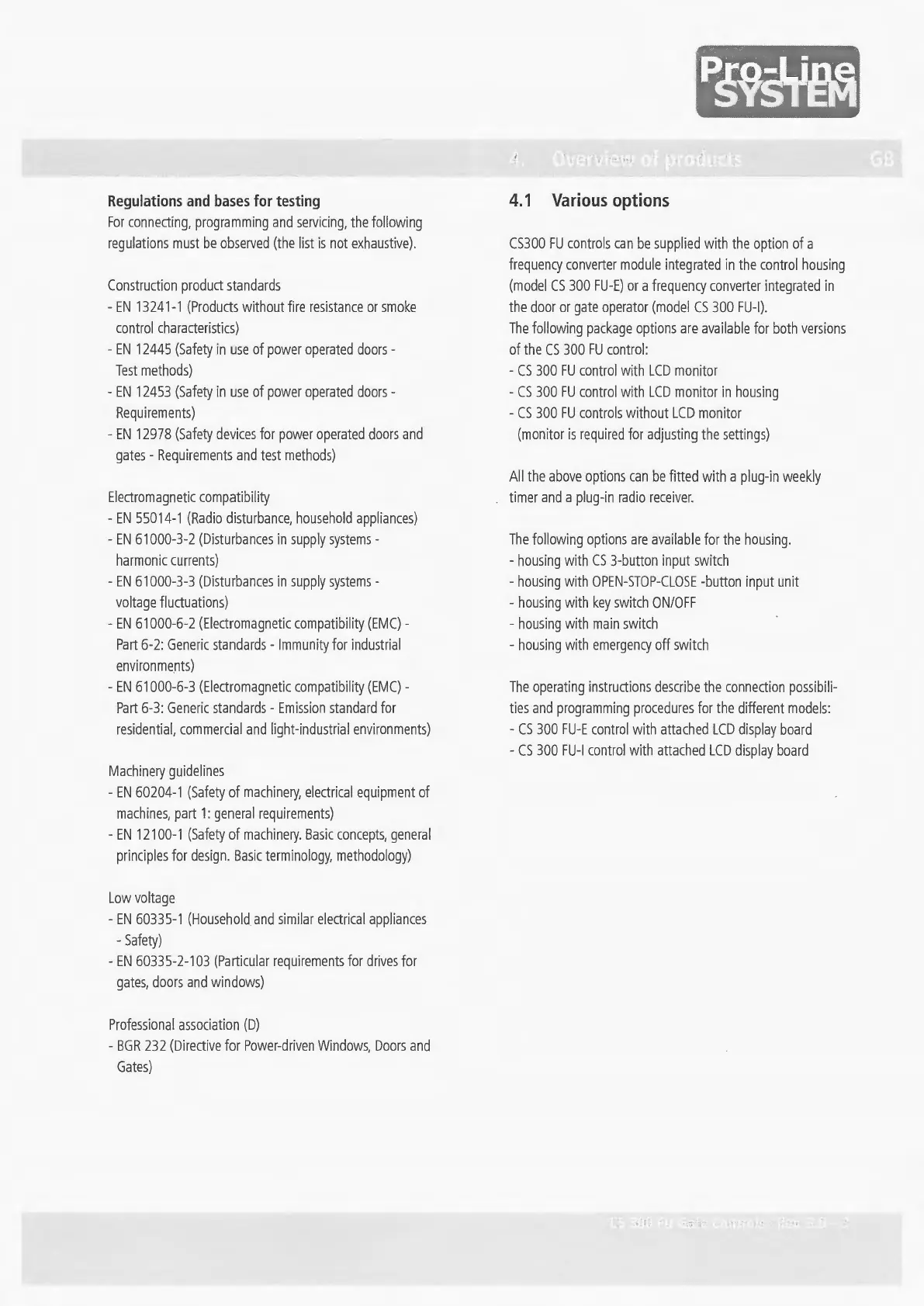

Regulations and bases for testing
For connecting, programming and servicing, the following
regulations must be observed (the list is not exhaustive).
eonstruction product standards
- EN 13241-1 (Products without fire resistance or smoke
control characteristics)
- EN 12445 (Safety in use of power operated doors-
Test methods)
- EN 12453 (Safety in use of power operated doors -
Requirements)
- EN 12978 (Safety devices for power operated doors and
gates - Requirements and test methods)
Electromagnetic compatibility
- EN 55014-1 (Radio disturbance, household appliances)
- EN 61000-3-2 (Disturbances in supply systems-
harmonic currents)
-EN 61000-3-3 (Disturbances in supply systems-
voltage fluctuations)
- EN 61 000-6-2 (Eiectromagnetic compatibility (EMe) -
Part 6-2: Gen eric standards- lmmunity for industrial
environments)
- EN 61000-6-3 (Eiectromagnetic compatibility (EMe)-
Part 6-3: Generic standards- Emission standard for
residential, commercial and light-industrial environments)
Machinery guidelines
- EN 60204-1 (Safety of machinery, electrical equipment of
machines, part 1: general requirements)
- EN 12100-1 (Safety of machinery . Basic concepts, general
principles for design. Basic terminology, methodology)
Low voltage
- EN 60335-1 (Household and similar electrical appliances
- Safety)
- EN 60335-2-103 (Particular requirements for drives for
gates, doors and windows)
Professional association (D)
- BGR 232 (Directive for Power-driven Windows, Doors and
Gates)
';· ~ ".'
4.1 Various options
eS300 FU controls can be supplied with the option of a
frequency converter module integrated in the control housing
(model es 300 FU-E) or a frequency converter integrated in
the door or gate operator (model es 300 FU-l).
The following package options are available for both versions
of the es 300 FU control:
-es 300 FU control with LeD monitor
- es 300 FU control with LCD monitor in housing
-es 300 FU controls without LCD monitor
(monitor is required for adjusting the settings)
All the above options can be fitted with a plug-in weekly
timer and a plug-in radio receiver.
The following options are available for the housing.
- housing with es 3-button input switch
- housing with OPEN-STOP-eLOSE -button input unit
- housing with key switch ON/OFF
- housing with ma in switch
- housing with emergency off switch
The operating instructions describe the connection possibili-
ties and programming procedures for the different models:
- es 300 FU-E control with attached LCD display board
- es 300 FU-l control with attached LeD display board
