Pro-Line System CS300FU User Manual

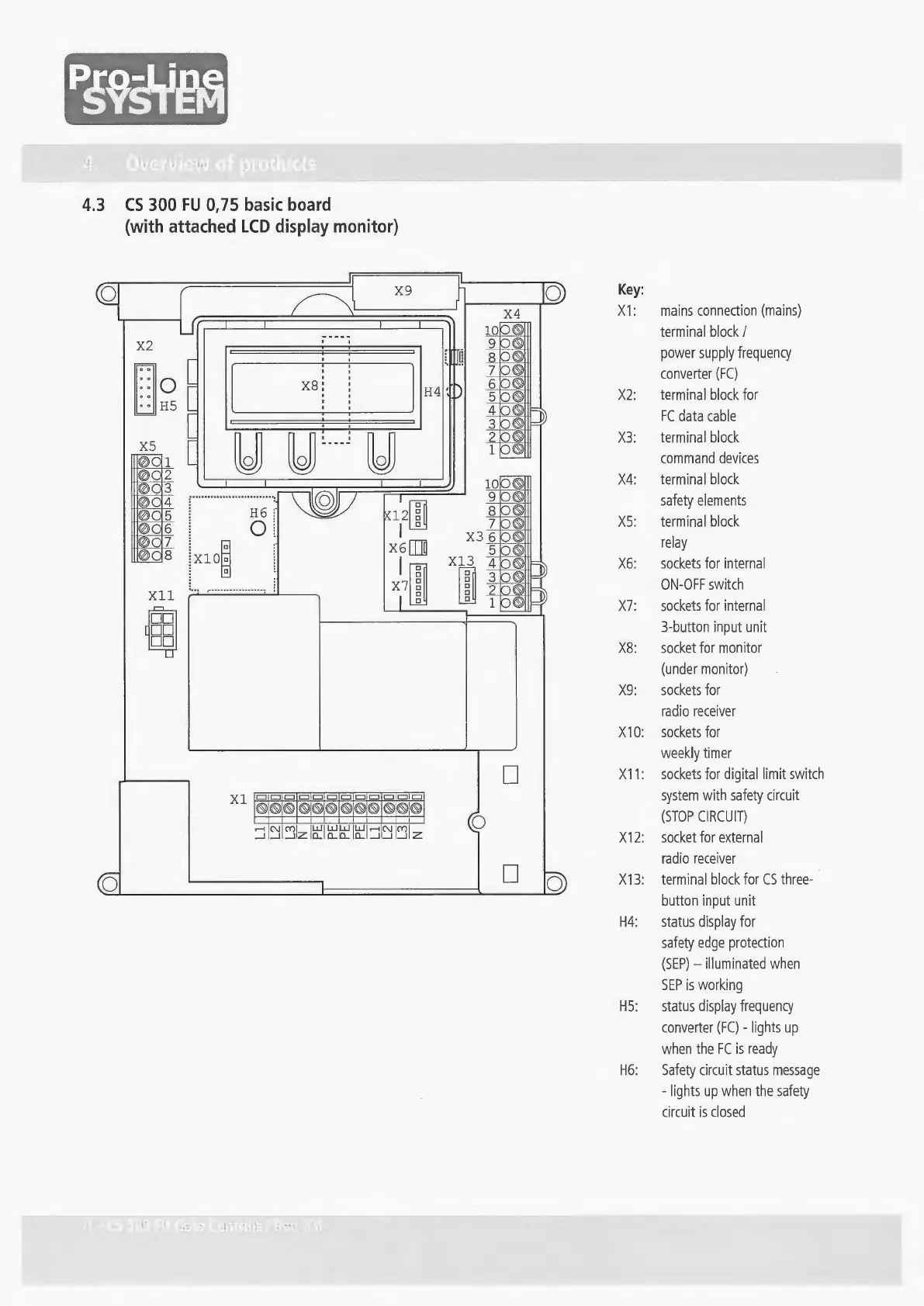

4.3 CS 300 FU 0,75 basic board
(with attached LCD display monitor)
Key:
X1:
mains connection (mains)
terminal block 1
power supply frequency
converter (FC)
X2 :
terminal block for
FC data cable
=
X3: terminal block
command devices
X4 : terminal block
Xll
1
r·········· · ········~· · r~
IXlo® ~
: @j
t.. . ----- - ----------- - ~ f
·rn
~12 g
1 o
X6[j]
'rn
X7 g
1 g
safety elements
X5: terminal block
relay
X6: sockets for interna!
ON-OFF switch
X7 : sockets for interna!
3-button input unit
X8: socket for monitor
(under monitor)
X9: sockets for
radio receiver
X10: sockets for
weekly timer
D
X11: sockets for digital limit switch
Xl CJ ID I CJ CJ I CJ I CJ CJ i c::::J I CJ CJICJ I CJ
1 ~1~ 1 ~ 1 ~ : ~ 1 ~ 1 ~ 1 ~ 1 ~ ~1~ 1 ~1
1 1 11 11 11 o
=: I ::J I :J iz 1 ~ 1 ~ ~ ~ 1 ~ 1 =: I ::J 1 :3 1 z
system with safety circuit
(STOP CIRCUIT)
X12:
socket for external
radio receiver
X13:
terminal block for es three-
button input unit
H4: status display for
safety edge protection
(SEP)- illuminated when
SEP is working
H5 :
status display frequency
converter (FC) - lights up
when the FC is ready
H6 :
Safety circu it status message
- lights up when the safety
circuit is closed
