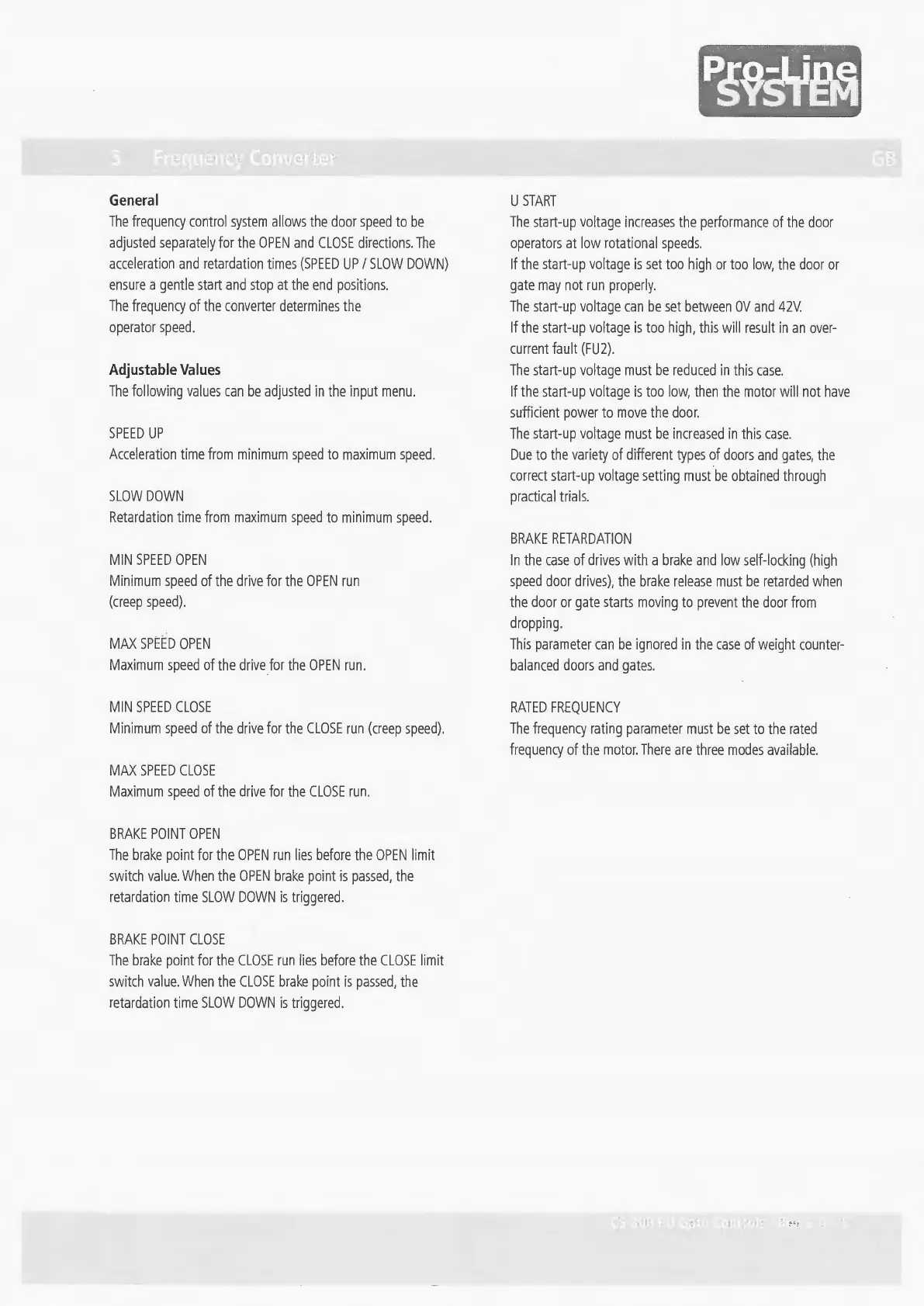

General
The frequency control system allows the door speed to be
adjusted separately for the OPEN and CLOSE directions. The
acceleration and retardation times (SPEED UP 1 SLOW DOWN)
ensure a gentle start and stop at the end positions.
The frequency of the converter determines the
operator speed .
Adjustable Values
The following values can be adjusted in the input menu.
SPEED UP
Acceleration time from minimum speed to maximum speed.
SLOW DOWN
Retardation time from maximum speed to minimum speed.
MIN SPEED OPEN
Minimum speed of the drive for the OPEN run
(creep speed).
MAX SPEED OPEN
Maximum speed of the drive for the OPEN run.
MIN SPEED CLOSE
Minimum speed of the drive for the CLOSE run (creep speed).
MAX SPEED CLOSE
Maximum speed of the drive for the CLOSE run .
BRAKE POINT OPEN
The bra ke point for the OPEN run lies before the OPEN limit
switch value . When the OPEN brake point is passed, the
retardation time SLOW DOWN is triggered.
BRAKE POINT CLOSE
The bra ke point for the CLOSE run lies before the CLOSE limit
switch value . When the CLOSE brake point is passed, the
retardation time SLOW DOWN is triggered.
U START
The start-up voltage increases the performance of the door
operators at low rotational speeds.
lf the start-up voltage is set too high or too low, the door or
gate may not run properly.
The start-up voltage can be set between OV and 42V.
lf the start-up voltage is too high, this will result in an over-
current fault (FU2).
The start-up voltage must be reduced in this case.
lf the start-up voltage is too low, then the motor will not have
sufficient power to move the door.
The start-up voltage must be increased in this case.
Due to the variety of different types of doors and gates, the
correct start-up voltage setting must be obtained through
practical trials.
BRAKE RETARDATION
ln the case of drives with a bra ke and low self-locking (high
speed door drives}, the brake release must be retarded when
the door or gate starts moving to prevent the door from
dropping .
This parameter can be ignored in the case of weight counter-
balanced doors and gates.
RATED FREQUENCY
The frequency rating parameter must be set to the rated
frequency of the motor. There are three modes available .
