Pro-Line System CS300FU User Manual

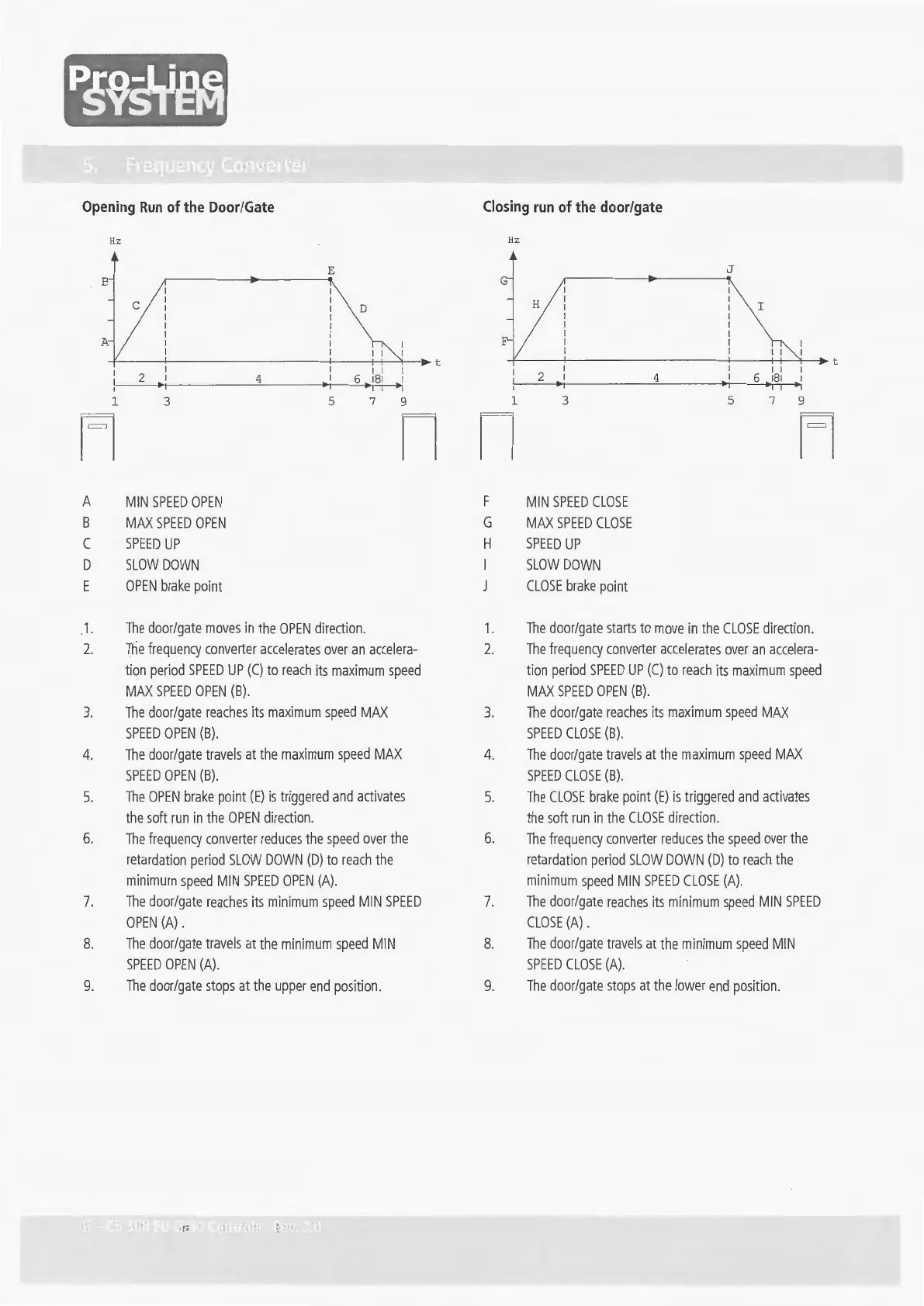

Opening Run of the Door/Gate
Hz
E
2
1 1
6 181
4
1 3 5
7 9
Fl n
A MIN SPEED OPEN
B MAX SPEED OPEN
C SPEED UP
D
E
1.
2.
3.
4.
5.
6.
7.
8.
9.
SLOW DOWN
OPEN brake point
The door/gate moves in the OPEN direction.
nie frequency converter accelerates over an accelera-
tion period SPEED UP (C) to reach its maximum speed
MA X SPEED OPEN (B).
The door/gate reaches its maximum speed MAX
SPEED OPEN (B).
The door/gate travels at the maximum speed MAX
SPEED OPEN (B) .
The OPEN brake point (E) is triggered and activates
the soft run in the OPEN direction .
The frequency converter reduces the speed over the
retardation period SLOW DOWN (D) to reach the
minimum speed MIN SPEED OPEN (A).
The door / gate reaches its minimum speed MIN SPEED
OPEN (A).
The door/gate travels at the minimum speed MIN
SPEED OPEN (A).
The door/gate stops at the upper end position.
Closing run of the door/gate
Hz
J
1 1
2
4
6 181
1 3 5
7 9
n 1=1
F MIN SPEED CLOSE
G MAX SPEED CLOSE
H SPEED UP
1.
2.
3.
4.
5.
6.
7.
8.
9.
SLOW DOWN
CLOSE brake point
The door/gate starts to move in the CLOSE direction.
The frequency converter accelerates over an accelera-
tion period SPEED UP (C) to reach its maximum speed
MAX SPEED OPEN (B).
The door/gate reaches its maximum speed MAX
SPEED CLOSE (B).
The door/gate travels at the maximum speed MAX
SPEED CLOSE (B).
The CLOSE brake point (E) is triggered and activates
the soft run in the CLOSE direction.
The frequency converter reduces the speed over the
retardation period SLOW DOWN (D) to reach the
minimum speed MIN SPEED CLOSE (A) .
The door/gate reaches its minimum speed MIN SPEED
CLOSE (A).
The door/gate travels at the minimum speed MIN
SPEED CLOSE (A).
The door/gate stops at the lower end position.
