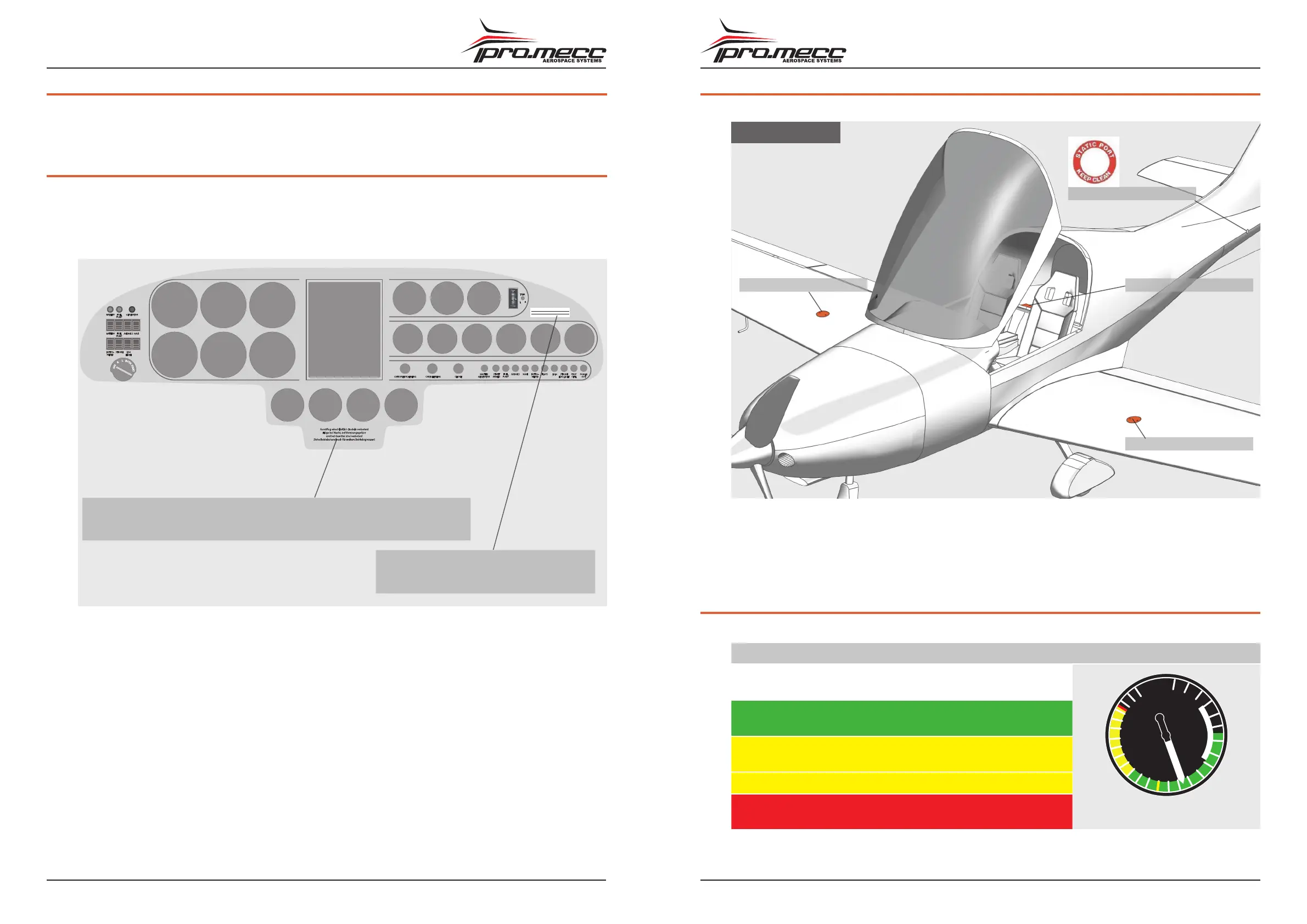

7. INFORMATION SIGNS AND MARKINGS
This chapter describes the labels and the location of signs are described on the aircraft.
7.1. PANEL
All designations for switches, controls and fuses are printed directly on the panel. The printing
depends on the cockpit configuration.
Example of an analog configuration:
TRIM
L R
BATTERY FUEL
PUMP
GENERATOR
INSTRU-
MENTS
STROBE LDG
LIGHT
Kunstug einschließlich Trudeln verboten!
Flüge bei Nacht, bei Vereisungsgefahr
und bei Gewitter sind verboten!
Siehe Betriebshandbuch für weitere Betriebsgrenzen!
BATTERY FUEL
PUMP
AVIONICS
NAVI
START
ARMED
MASTER
GENERATOR
STROBE
LDG LIGHT
PROP
CTRL
FUEL
PUMP
INSTRU-
MENTS
CABIN HEATINGCARBURETOR HEATING
CHOKE
FLAPS
TRIM
POWER
OUT
AVIONICS NAVI
maximale Abugmasse 472,5 kg
Minimale Zuladung 67,5 kg
Maximale Zuladung 98,5 kg
Additionally, the following warning is
printed on the panel:
Aerobatics including spinning prohibited!
Flights at night, at the risk of icing and thunderstorms are prohibited!
Refer to the flight manual for further operating limits!
Maximum take-off weight 472,5 kg
Minimum load 67,5 kg
Maximum load 98,5 kg
The warnings may vary according to configuration are also available at other locations of the pa-
nel, however, are always clearly visible to the pilot and may not be removed.
7.2. FURTHER MARKINGS
MARKINGS
min 95 ROZ unleaded
max 20 kg Zuladung
static port - keep clean
min 95 ROZ unleaded
Tankcover: min 95 ROZ unleaded
Baggage compartment: max 20 kg load
Static port - keep clean
7.3. AIRSPEEDINDICATOR MARKS
Marking IAS (km/h) Remark
White arc 69 – 119 Operating range with full flaps
extended
300
250
200
180
160
140
120
100
80
60
40
Green arc 94 – 200 Normal operating range
Yellow arc 200 - 274 Caution range,
only in good weather condition
Yellow line 170 Max. maneuver speed
Red line 274 Never exceed speed
