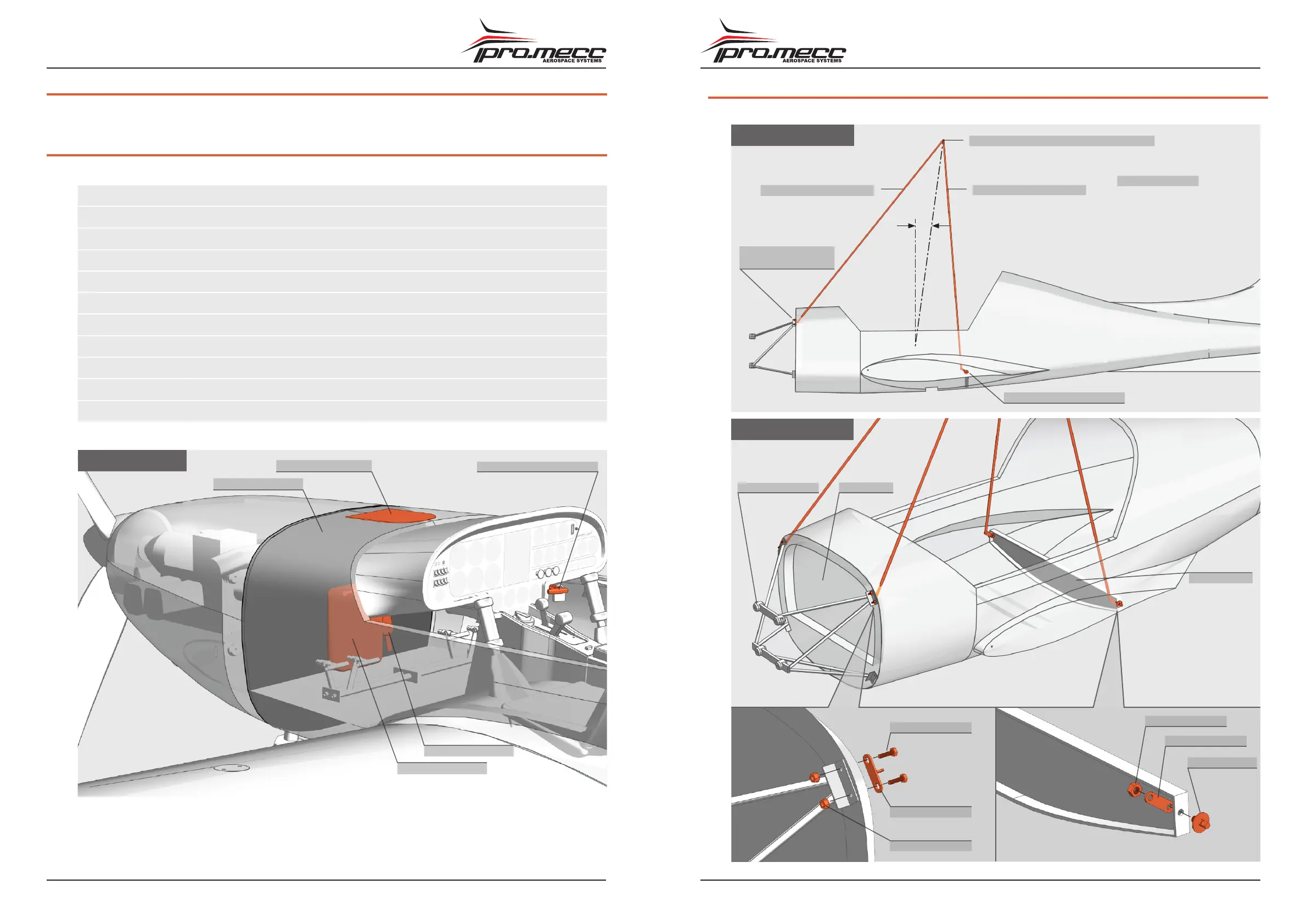

8. RESCUE SYSTEM
8.1.
TECHNICAL DATA OF THE MAGNUM LIGHT SPEED SOFTPACK
Length of container 340 mm
Width of container 240 mm
Thickness of container 190 mm
Total weight 9.65 kg
Area of canopy 86 m2
Number of cords 32
Max tested operating speed 300 km/h
verage descent rate by 475 kg 7.33 m/s
Opening time at standard speed min 100 km/h 3.9 s
Rocket container diameter 60 mm
Rocket container length 270 mm
RESCUE SYSTEM
Opening for the rocket
Firewall
Softpack
Rocket
Release Lever Rescue System
8.2.
INSTALLATION DRAWINGS
CABLE SETUP
CABLE MOUNTING
7°
PARACHUTE-BRIDLE CONNECTION POINT
CABLE LENGTH 2200 mm
FIREWALL
ENGINE MOUNT
ENGINE MOUNT
FRAME 914
DIN 931 M10X35
DIN 982 M12X1,5
P-N: RS02
P-N: FL0603-RS
T EYELET PN RS01
DIN 982 M10
CABLE LENGTH 2250 mm
REAR ATTACHMENT POINT
FRONT ATTACHMENT
POINT
