V1.0 6,000W SHOP HEATER 8553521
Visit www.princessauto.com for more information 7
ASSEMBLY & INSTALLATION
Letter references in parenthesis (A) refer to the included
Identification Key.
HEATER INSTALLATION
1. Keep the unit at least 8 feet (2.4 m) away from the floor.
This minimum distance must be maintained.
2. Do not install closer than 1 foot (or 0.3 m) to any adjacent
vertical surfaces or walls.
3. Keep at least 4.5 inches (11.5 cm)
from the back wall (with or
without using the wall hanging
mounting bracket).

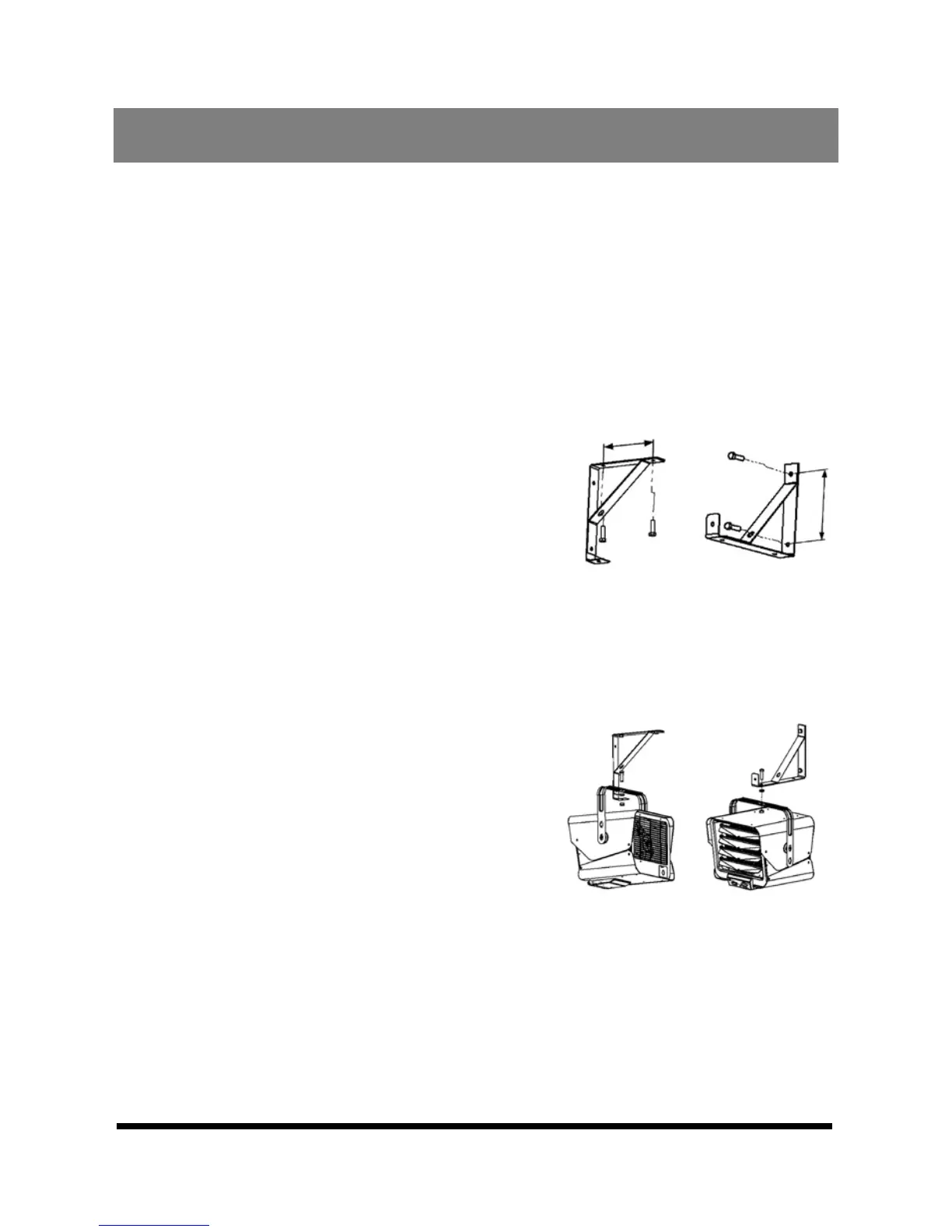

4. Mark the drill-hole positions in the
wall or ceiling for the mounting
bracket (Fig. 2).
5. Drill the required holes with a diameter fit for the anchor
provided for positioning the mounting bracket.
6. Insert the anchors.
7. Hook the unit to the mounting
bracket and let the unit hang from
the mounting bracket (Fig. 3).
8. Insert the screw through the
mounting bracket and the heater
handle, tighten the nut.
Fig. 3
Fig. 2
