pro.point JPC60 - Parts List - Vibratory Housing

8570533 JPC60 Plate Compactor V1.2
22 For technical questions call 1-800-665-8685

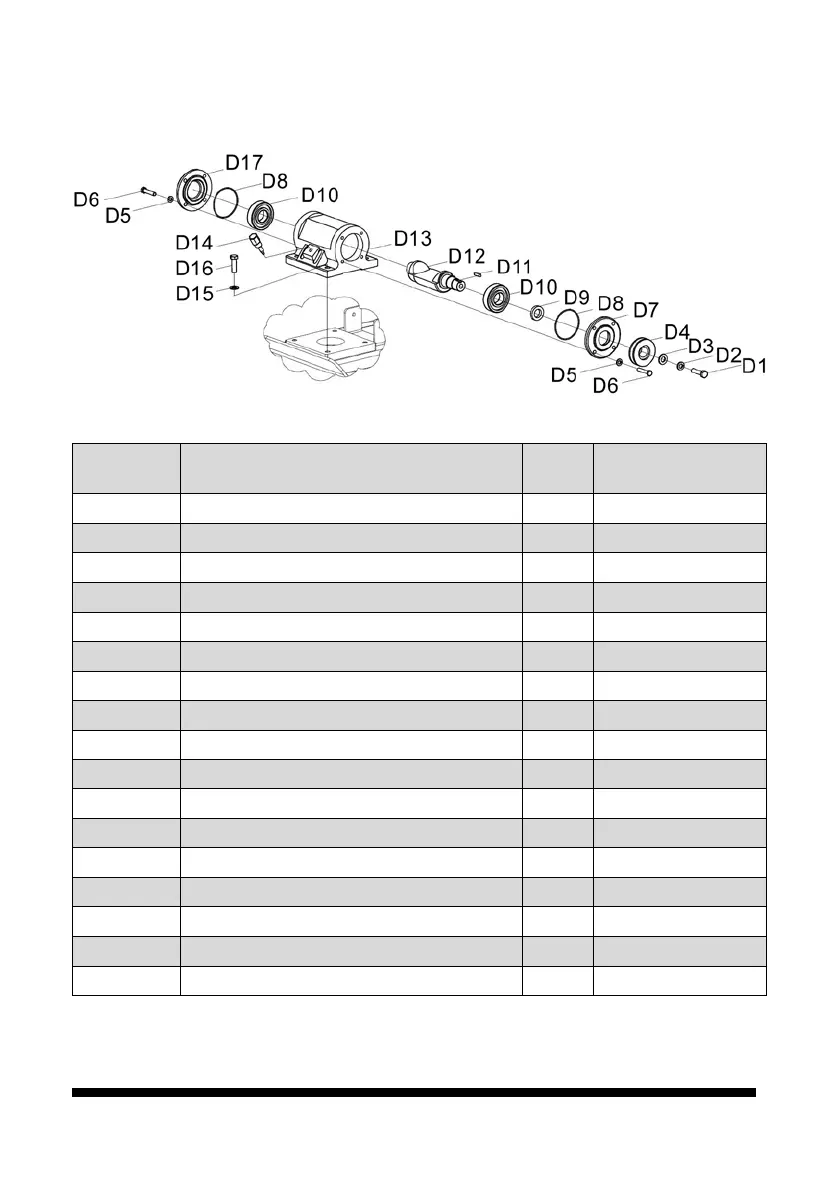

PARTS LIST – VIBRATORY HOUSING
PART #
DESCRIPTION
QTY
PARTS
IDENTIFIER
D1
Bolt, M12x35
1
QBL-M12X35
D2
Spring Washer, M12
1
QWS-SM12
D3
Washer, M12 Ø40
1
QWS-SPM12
D4
Vibrator Pulley, GCD200
1
PA040-006
D5
Spring Washer, M8 (10.9T)
8
QWS-SM8H
D6
Bolt, M8X20 (10.9T)
8
QBL-M8X20H
D7
Vibrator Front Cover, GCD200
1
PA040-004
D8
O-ring, G80
2
QOR-G80
D9
Oil Seal, 32x48x8 NOK
1
QOS-32X48X8
D10
Bearing, #6307
2
QBR-6307
D11
Key, 7x7x20
1
QKY-7X7X20
D12
Vibrator Rotary Shaft, GCD450
1
PA040-001
D13
Vibrator Housing, GCD450
1
PA040-002
D14
Vibrator Oil Gauge, SM20C
1
PP200-005
D15
Spring Washer, M12 (10.9T)
4
QWS-SM12S
D16
Bolt, M12x40 (10.9T)
4
QBL-M12X40S
D17
Vibrator Rear Cover, GCD200
1
PP200-003
