10

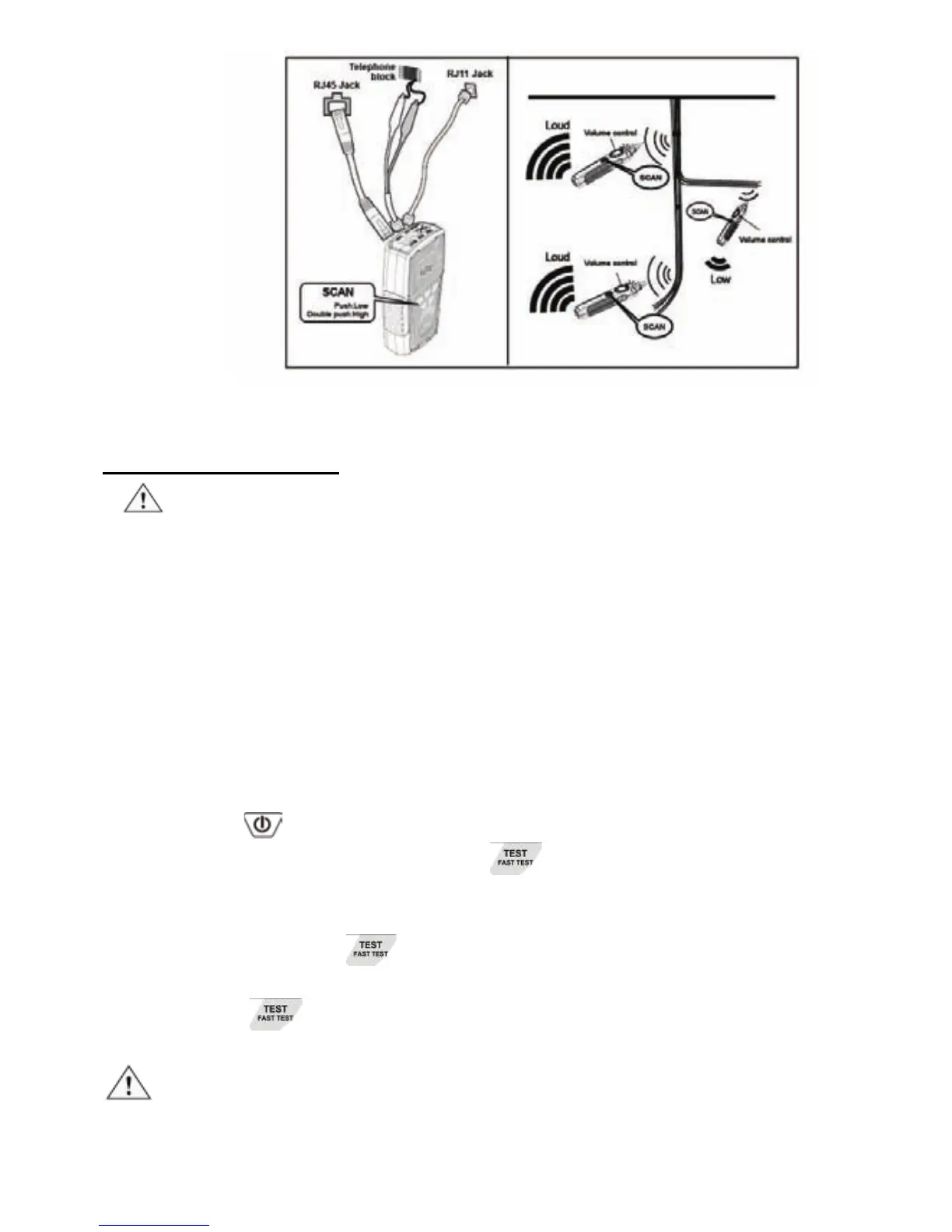

Figure 4 Isolating Cable
Cable Map Testing：
Caution
• When use the product for RJ45 or RJ11 cable mapping, please
only plug in the cable to the RJ45/RJ11 “TEST socket” on the
transmitter. Do not use RJ45 SCAN or RJ11 SCAN socket.
• You can use the MT-7029 Transmitter or Receiver to validate
the cable map on RJ45/RJ11 by RJ45/RJ11compatible
connector on transmitter. The cable map function finds the most
common wiring faults on twisted pair cabling: shorts, opens, and
crossed pairs.
1. Connect the MT-7029 Transmitter or Receiver to RJ45/ RJ11
jacks.
2. Press“
”, the indicator of “POWER/ BAT LOW” will light up
and turn on the power. Press“
” on MT-7029 transmitter
for cable mapping and shielded function indication. When the
green LED indicator flickers slowly, the low speed scan is
working. Press “
” button again, the green LED indicator
flickers faster, and the fast speed scan will be operated.
Press “
” button again, the product will be standby for
next operation.
Caution
• Each LED that corresponding to an active pin flashes
briefly and should light for about 1 second. For fast scan
To Next Page
