Pro'sKit SS-989 - SMD rework operation instructions; Cleaning; Soldering iron operation instructions; Soldering iron stand assembly

6
lifting the pick up puller (Fig. 5)
5. After removing SMD components, remove residual soldering solder tin
with desoldering tool.
●SMD rework operation instructions
1. Apply proper quantity of solder paste and install the SMD components
on PCB.
2. Refer to (Fig. 6) to preheating components
3. Heat the lead frame evenly (Fig. 7)
4. Cleaning
When soldering is completed, clean the residual flux from the board
with an appropriate cleaner.
V. Soldering iron operation instructions
1. Soldering iron stand assembly
● Install the cleaning sponge into the seat. (Fig. 8)

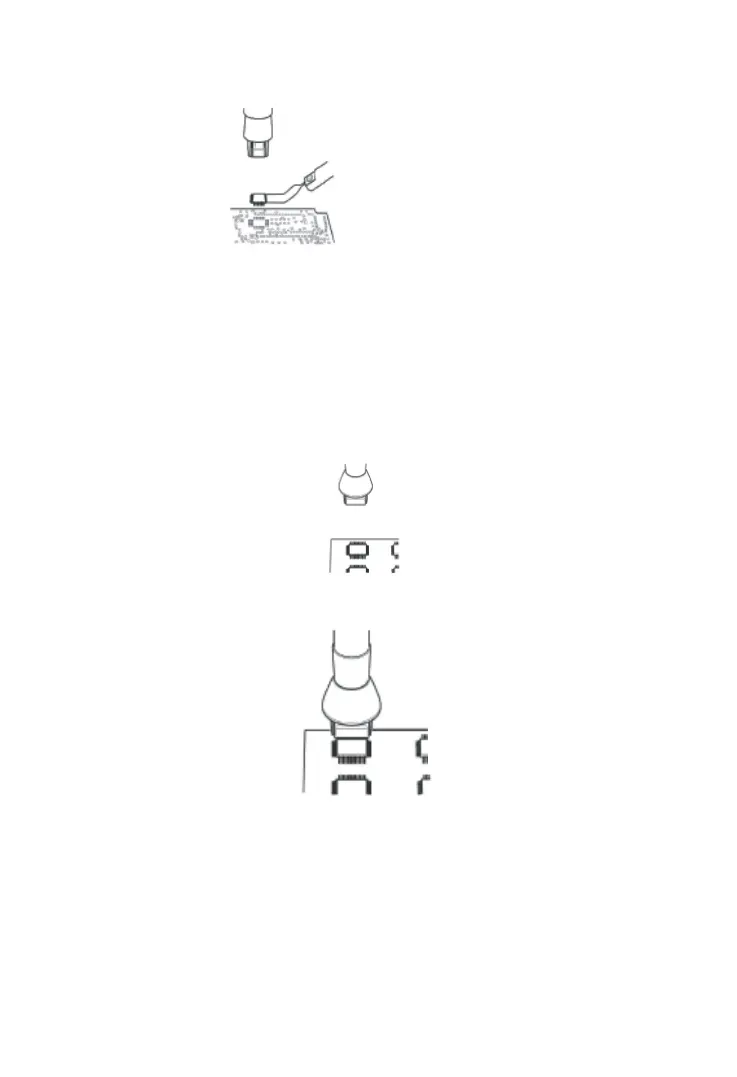

Fig. 5
Fig. 6
Fig. 7
