VRD - ON/OFF
Selection of the Voltage Reduction Device ON or OFF. As default this is OFF.
In arc mode, the unit powers off at the end of welding to automatically restart when the electrode gets in
touch with the workpiece.
D.M. DIGITAL METER - ON/OFF
Set the digital display ON to view the real voltage and current values while welding. As default this is ON.
LCD CONTRAST - 30/63
Setting of the LCD display contrast according to the environment temperarure and brightness.
UNITS
Select the desired unit of lenght between meters or inches.
Press the Mode Key - 1 - to go back to the welding process screen and save set parameters. The Display
views the screen of the last welding process performed by the unit.
RESET
Press and hold Prog key - 4 - to reset all parameters and go back to the parameters set as default.
3
5
6
7
2
1
4

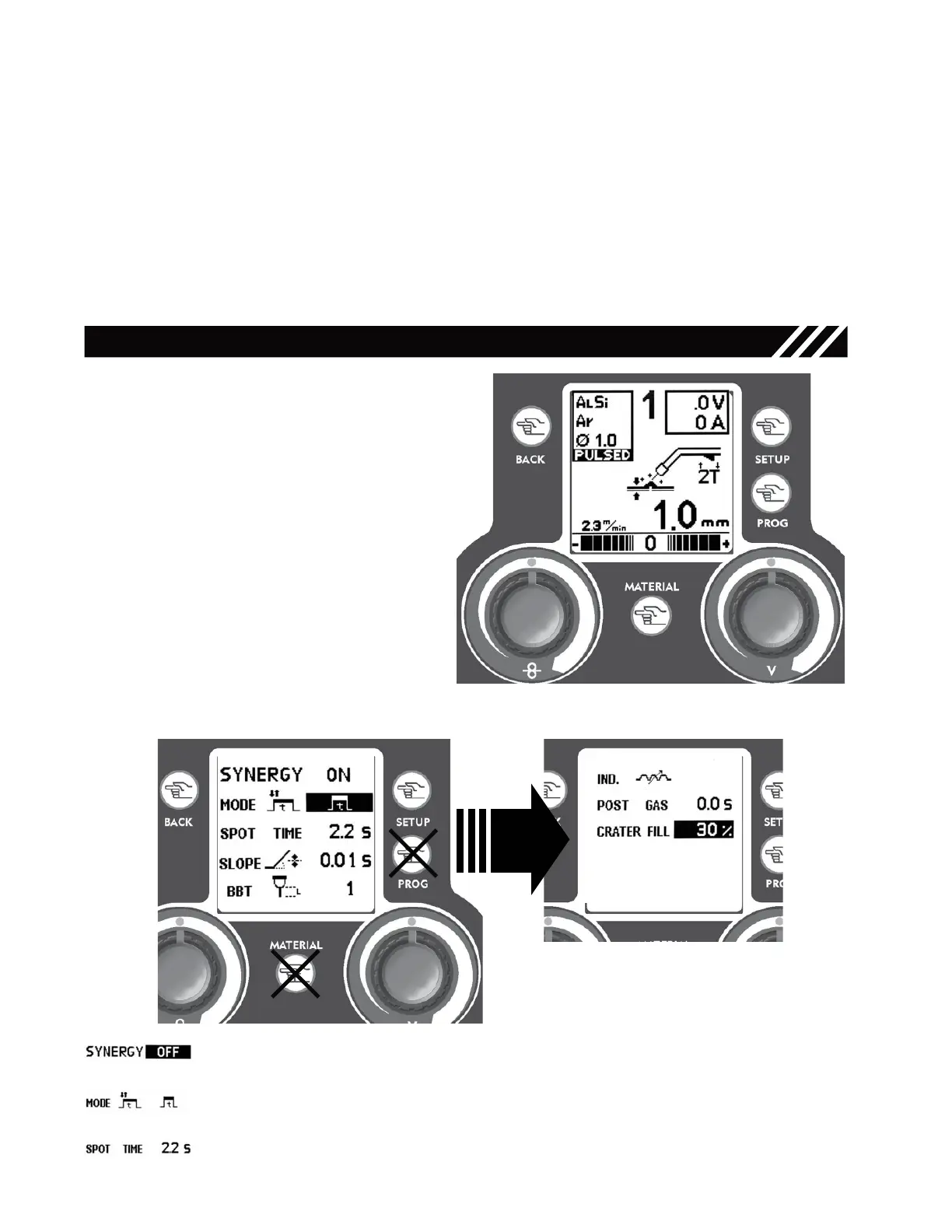

Figure 8
1
5
Figure 9
MIG/MAG WELDING SETUP
Unit can be set for working in three different
modes:
Normal MIG
Synergic MIG
Pulsed MIG.
Follow carefully the following instructions paying
particular attention to the pictures.
Torch Selection
Press the trigger of the torch that you need to use
for welding. The display will view the number cor-
respondent to the selected torch. All parameters
that will be changed in the next steps will refer to
the selected torch only.
MIG/MAG Function Setup Key - 3.2 -
In MIG/MAG Mode press the Setup Key - 3 - to enter the parameters change screen. Use
the Setup Key - 3 - to run through the parameters and adjust their values by turning the
Right regulation Knob - 5 -.
SYNERGY OFF - unit ready for NORMAL MIG/MAG welding, voltage and wire speed are adjustable
SYNERGY ON - unit ready for Synergic Mode Welding
PULSED - unit ready for Pulsed Mode Welding
MODE: selection of the 2Stroke / 4Stroke / Spot Welding Mode
Spot Time - adjustable only when Spot Welding Mode is set: regulation of the maximum
duration of the Spot Welding Time (0-10 sec)
