Product Manual
PR-4
4.1 –Inputs

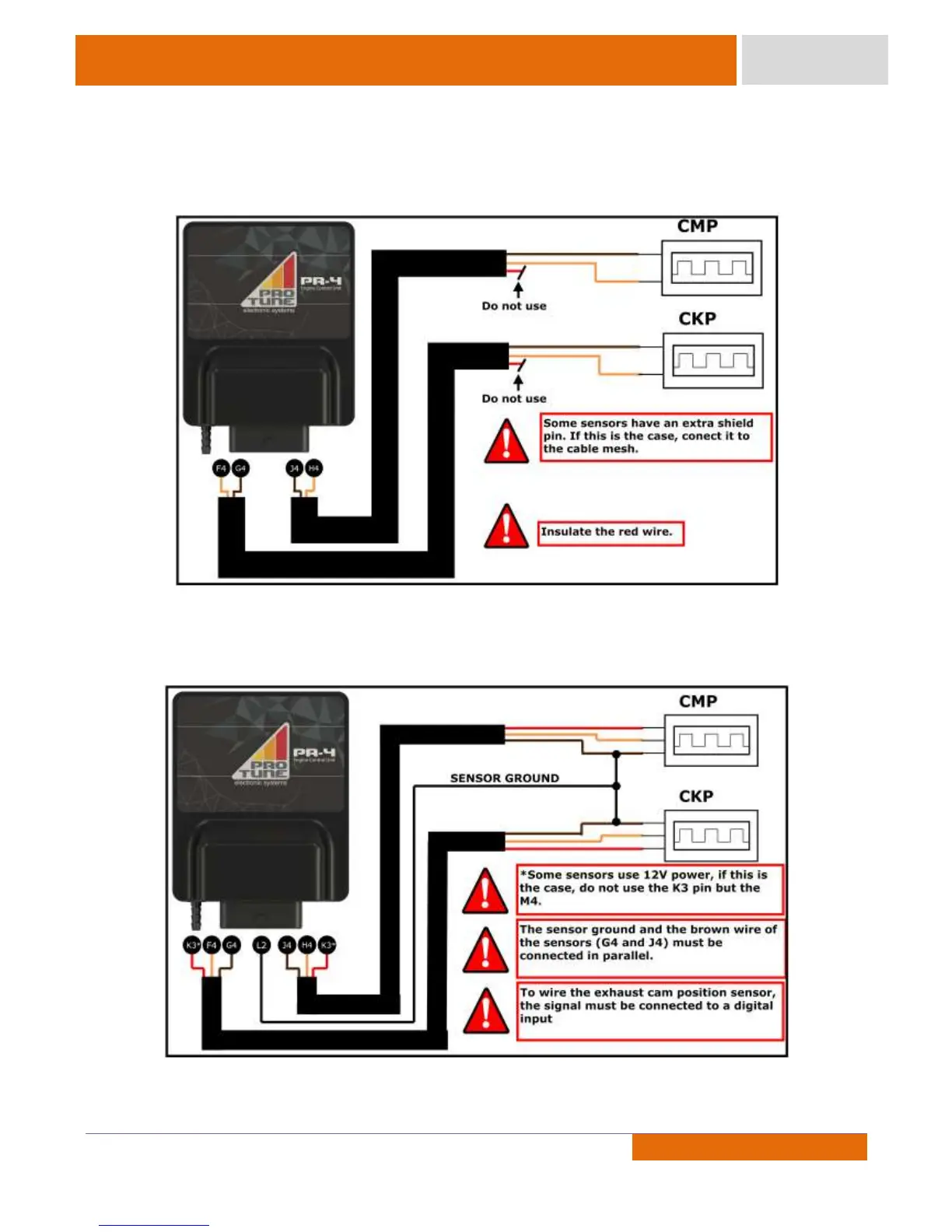

Crank and Camshaft Position Sensors
1 – Inductive type:
*PS: The mesh must be grounded either on the Power GND pin of the ECU or through the sensor. If the mesh is
not grounded or grounded in the both sides, sync problems may occur.
2 – Hall effect type:
