PRO TUNE PR-4 - Load on Shift Lever

17
Document Revision: (2)
17
17
Product Manual
PR-4
Load on Shift Lever

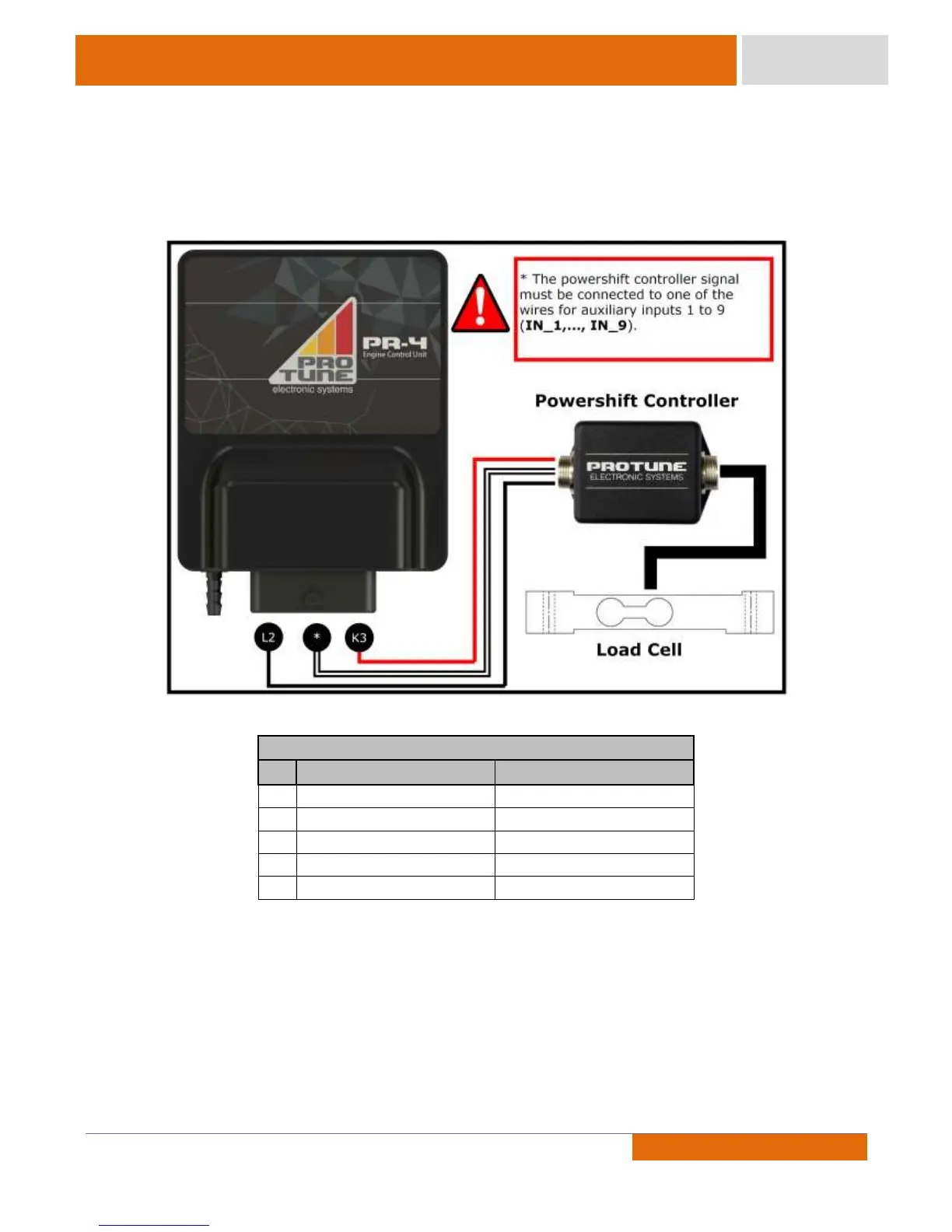

In order to use the Quick-Shift function, a load cell sensor must be applied to the vehicle shift lever. This
sensor is installed in Pro Tune’s factory, by sending the lever. For further information, contact technical support.
Alternatively, an activation signal switch can be used, the connection description is located on page 24.
Pinout
Pin
Function (4-way connector )
Function (5-way connector)
1
GND(-)
+ 12V
2
Sensor -
3
Sensor +
GND(-)
4
+ 5V
5
Signal (Vout)
