PRO TUNE PR-4 - Engine and Intake Air Temperatures Sensors

13
Document Revision: (2)
13
13
Product Manual
PR-4

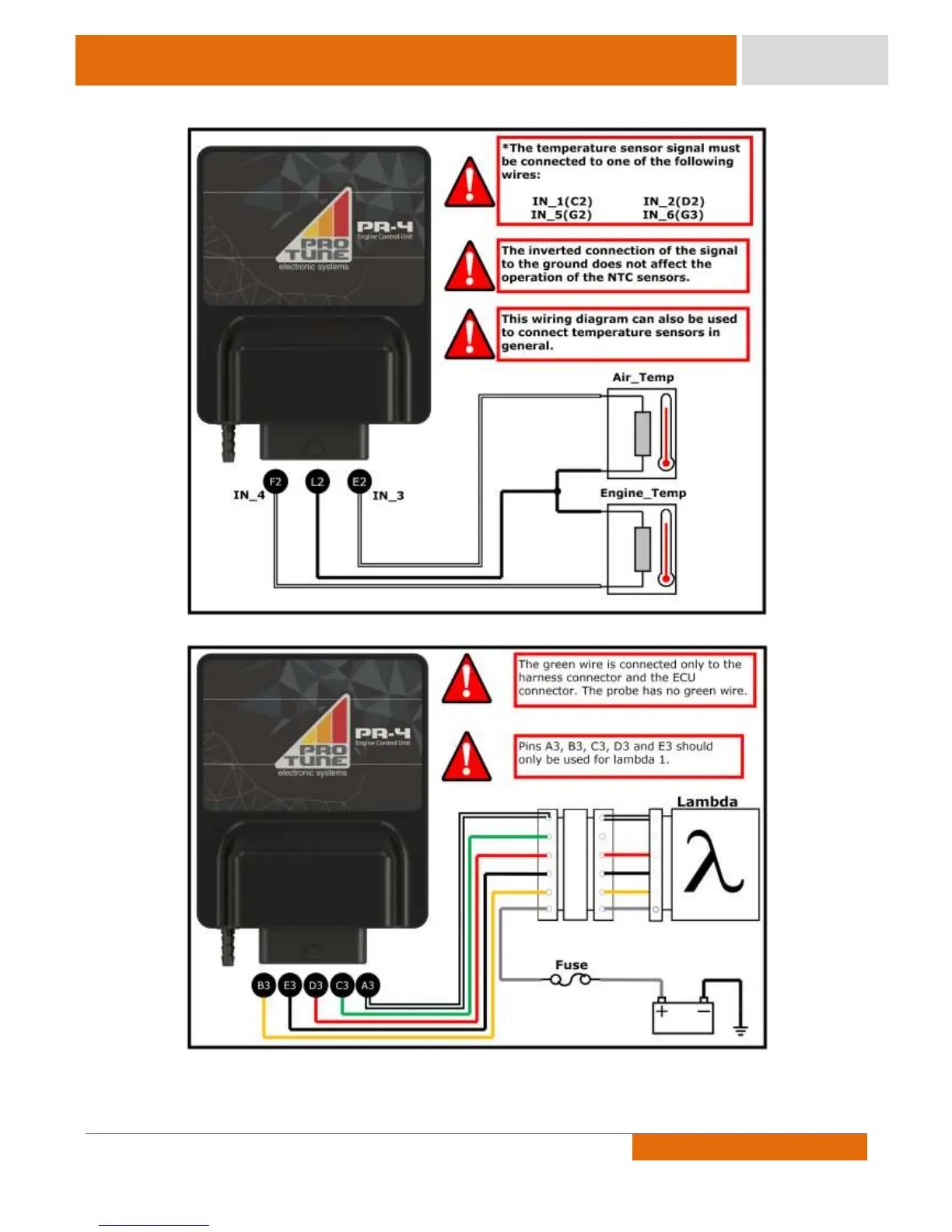

Engine and Intake Air Temperatures Sensors
Lambda Sensor LSU 4.2 / 4.9
CAUTION: LSU 4.2 and LSU 4.9 have different pinout. This scheme doesn’t illustrates sensor pinout.
