13

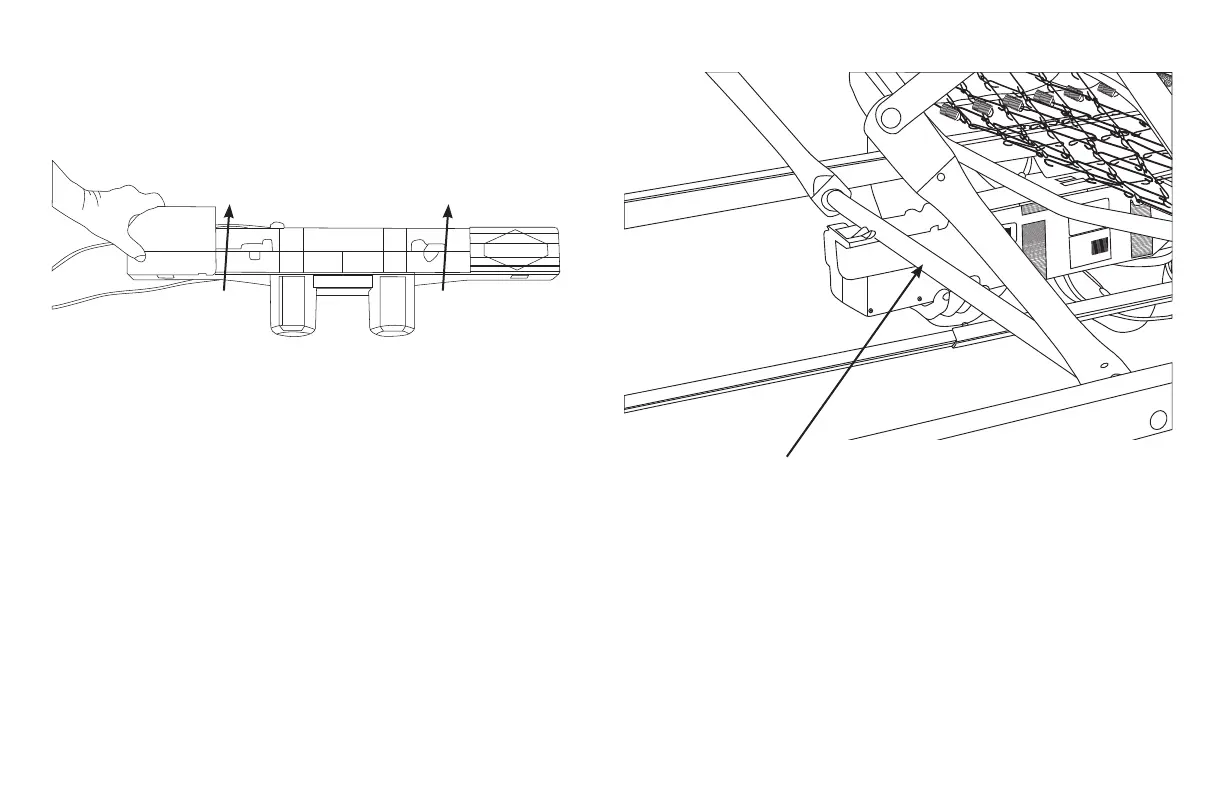

• To install motor, remove both locking caps on top of the motor. • Align the motor with the actuator rod and raise the head spring
to the highest position. The motor will be pull towards the bed
and lock on the actuator rod. Repeat for foot section.
• After the motor is fully installed, slide both locking covers back
onto the motor.
• Once fully assembled and checked, plug the unit in to test
operation and ensure the bed is working properly.
• Before placing a mattress on the assembled bed frame, ip up the
mattress guard at the foot of the bed frame to reduce mattress
movement when in use.
Actuator Rod
Figure 12
Figure 13
