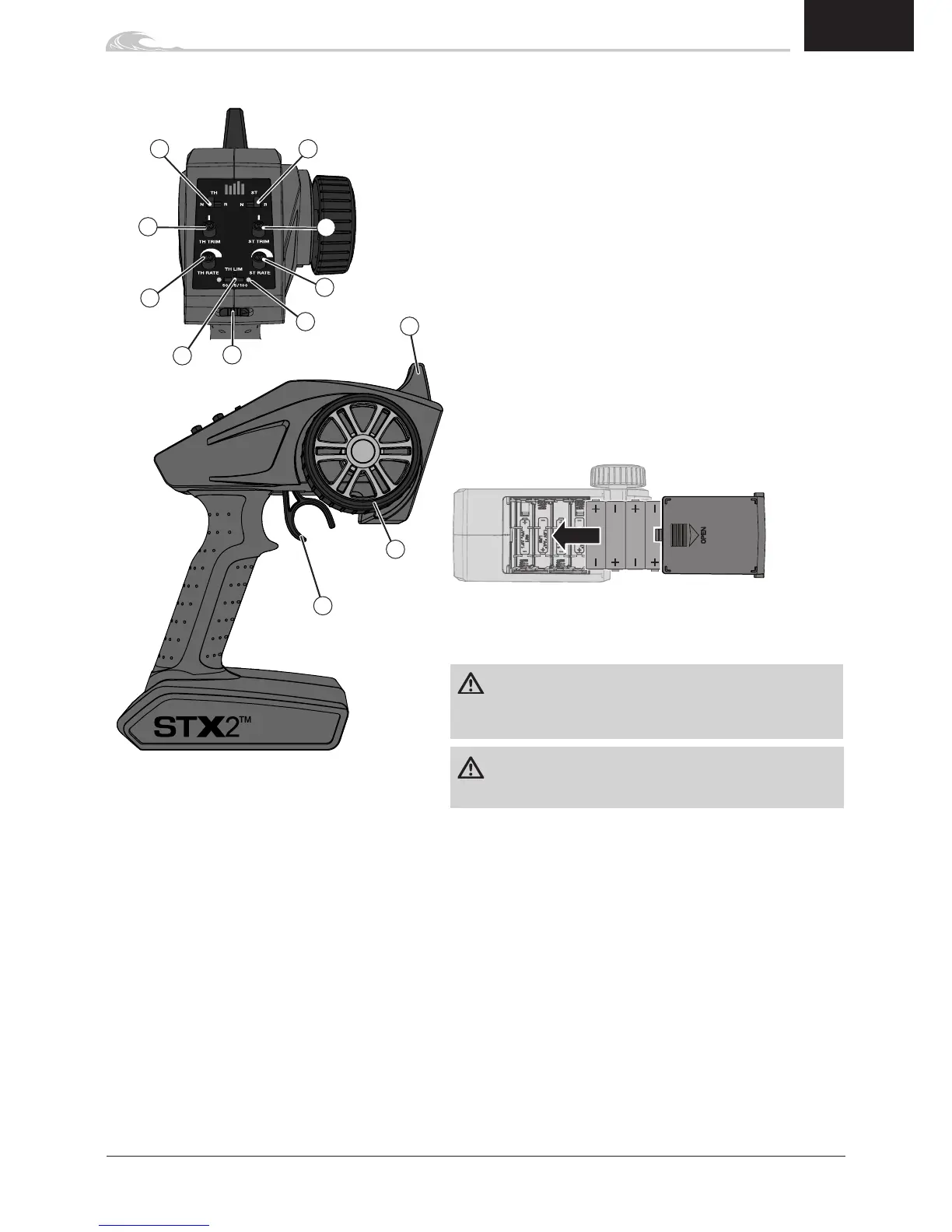

Transmitter Controls
Installing Transmitter Batteries
CAUTION: If using rechargeable batteries, charge only
rechargeable batteries. Charging non-rechargeable batteries
may cause the batteries to burst, resulting in injury to persons
and/or damage to property.
This transmitter requires 4 AA batteries.
1. Remove the battery cover from the transmitter.
2. Install the batteries as shown.
3. Install the battery cover.
CAUTION: Risk of explosion if battery is replaced by an
incorrect type. Dispose of used batteries according to
national regulations.
2.4GHZ DIGITAL
RADIO SYSTEM
1
2
11
3
4
8
7
9
6
10
5
12
1. Steering Wheel Controls direction (left/right) of the model
2. Throttle Trigger Controls speed and direction (forward/brake/
reverse) of the model
3. ON/OFF Switch Turns the power ON/OFF
4. Throttle Limiting Switch Adjusts the throttle limit from
50%, 75%, and 100%
5. TH Rate Adjusts the end point of the throttle
6. TH Trim Adjusts the throttle neutral point
7. TH REV Reverses the function of the speed control when
pulled back or pushed forward
8. ST REV Reverses the function of the steering when the
wheel is turned left or right
9. ST Trim Adjusts the steering center point
10. ST Rate Adjusts the end point of the steering
11. Antenna Transmits the signal to the model
12. Indicator Lights
• Solid red lights—Indicates radio connectivity and
adequate battery power
• Flashing red lights—Indicates the battery voltage is
critically low. Replace batteries
