probst VPH-150 - General Information; Authorized Use

Safety
6 / 24
5271.0008
V1
GB

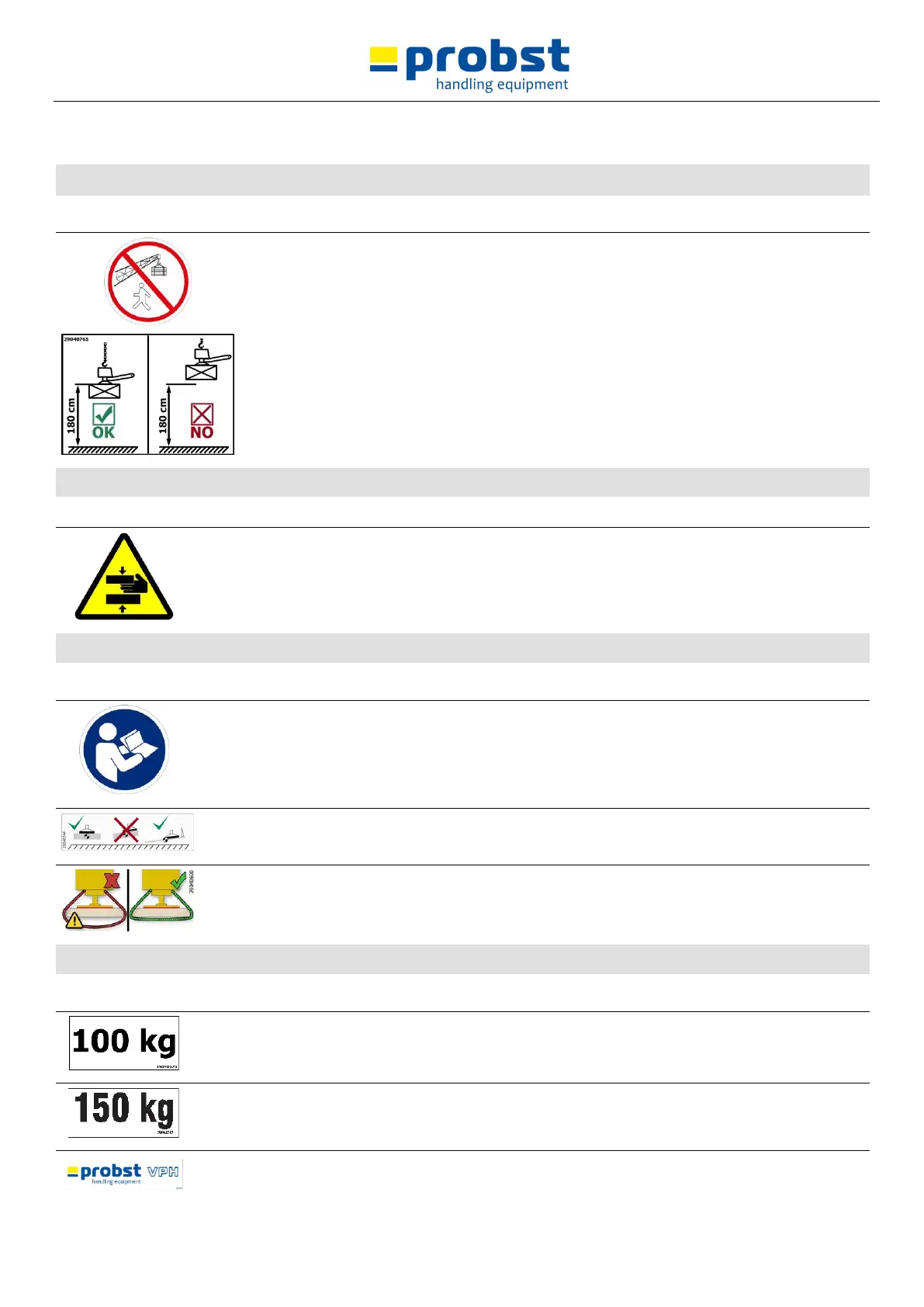

2.4 Safety Marking
PROHIBITION SIGN
Symbol
Meaning
Order-No.
Size
It is not allowed to stand under hanging loads. Danger to life!
2904.0210
2904.0209
2904.0204
Ø30 mm
Ø50 mm
Ø80 mm
Working with this device is only permitted in proximity to the
ground.
The sucked load must never be lifted more than 1.8 m
(measured from the top edge of the load to the ground).
Swinging the device over persons is prohibited.
2904.0765
100 x70 mm
WARNING SIGN
Symbol
Meaning
Order-No.
Size
Danger of squeezing the hands.
2904.0221
2904.0220
2904.0107
30 x 30 mm
50 x 50 mm
80 x 80 mm
REGULATORY SIGN
Symbol
Meaning
Order-No.
Size
Each operator must have read and understood the operating
instructions (and all safety instructions).
2904.0665
2904.0666
Ø30 mm
Ø50 mm
Loads have to be sucked in centered. With a suitable device (height
adjustable stop) loads can also be sucked in eccentrically.
2904.0744
107 x 32 mm
Safety chains has to fit tightly to the load.
Safety chains should never hang loosely under the load!
2904.0690
2904.0689
2904.0688
25 x 55 mm
70 x 41 mm
146 x 85
mm
OPERATING INFORMATIONS
Symbol
Meaning
Order-No.
Size
Maximum working load limit of the suction plate (VPH-100)
2904.0575
80 x 40 mm
Maximum working load limit of the suction plate (VPH-150)
2904.0207
80 x 35 mm
Label with device title
2904.0129
200 x 50
mm
