4 S/PDIF (ON RCA) DIGITAL INPUTS 2-5
Digital Inputs 2-5 accept digital audio conforming to the 75Ω S/PDIF digital
interface standard (via 75Ω cables equipped with RCA-type connectors)
from a digital satellite receiver, compact disc, laserdisc, DVD or other digital
source component. Connect the 75Ω S/PDIF output of your source compo-
nent to either of this input of the AVP2, using a high quality 75Ω cable
such as Madrigal MDC-2.
If you have the
optional internal RF demodulator installed in your Audio
Video Preamplifier, Digital Input 3 is dedicated to that RF connection and
can only be used for that purpose. Connect the RF (Dolby Digital/AC-3)
output from your laserdisc player to Digital Input 3 if you have the internal
RF demodulator installed.
5 S/PDIF (ON BNC) DIGITAL INPUT 6
Digital Input 6 accepts digital audio conforming to the 75Ω S/PDIF digital in-
terface standard (via 75Ω cables equipped with BNC-type connectors) from
a digital satellite receiver, compact disc, laserdisc, DVD or other digital
source component. Connect the 75Ω S/PDIF output of your source compo-
nent to either of these inputs of the Audio Video Preamplifier, using a high
quality 75Ω cable such as Madrigal MDC-2.
6 EIAJ OPTICAL DIGITAL INPUT 7
Digital Input 7 accepts digital audio in the EIAJ optical (sometimes called
“Toslink™”) digital interface standard from a digital satellite receiver, com-
pact disc, laserdisc, DVD or other digital source component. Connect the
EIAJ digital output of your source component to the EIAJ input of the Audio
Video Preamplifier using a high quality EIAJ optical cable.
7 VIDEO INPUTS
The AVP2 includes four composite and four S-video inputs. Any combina-
tion of the available inputs may be used, and for your convenience, conver-
sion from S-video to composite is provided on both the main and the
record/remote paths.
Thus S-video sources may be viewed via either the S-video or the compos-
ite outputs; composite sources are only available on the composite output.
(If viewed via the S-video output, the composite signal will be in black and
white.)
Composite video inputs use RCA connectors. S-video inputs utilize “S” con-
nectors:

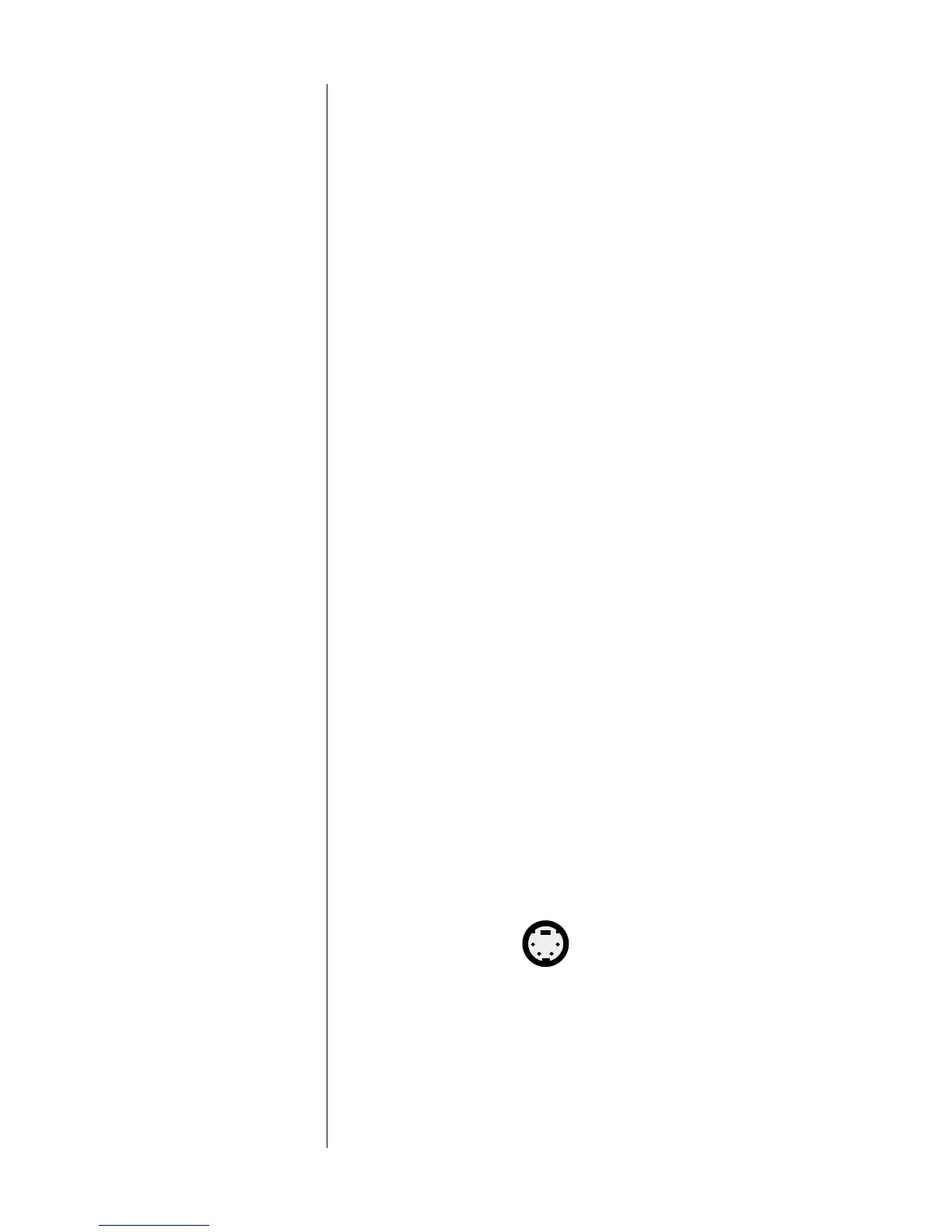

S-video connector
Connect the video outputs of your video components to appropriate video
inputs on the AVP2. (See The Setup Menu for more information on pro-
gramming your input buttons for either composite or S-video use.)
