Cleaning of the probes and the body
The probes can be removed for cleaning, replacement or
for fitting test accessories, such as the variable spacing
probe. They’re snap fit, so simply pull them off. Be careful
not to lose the spring.

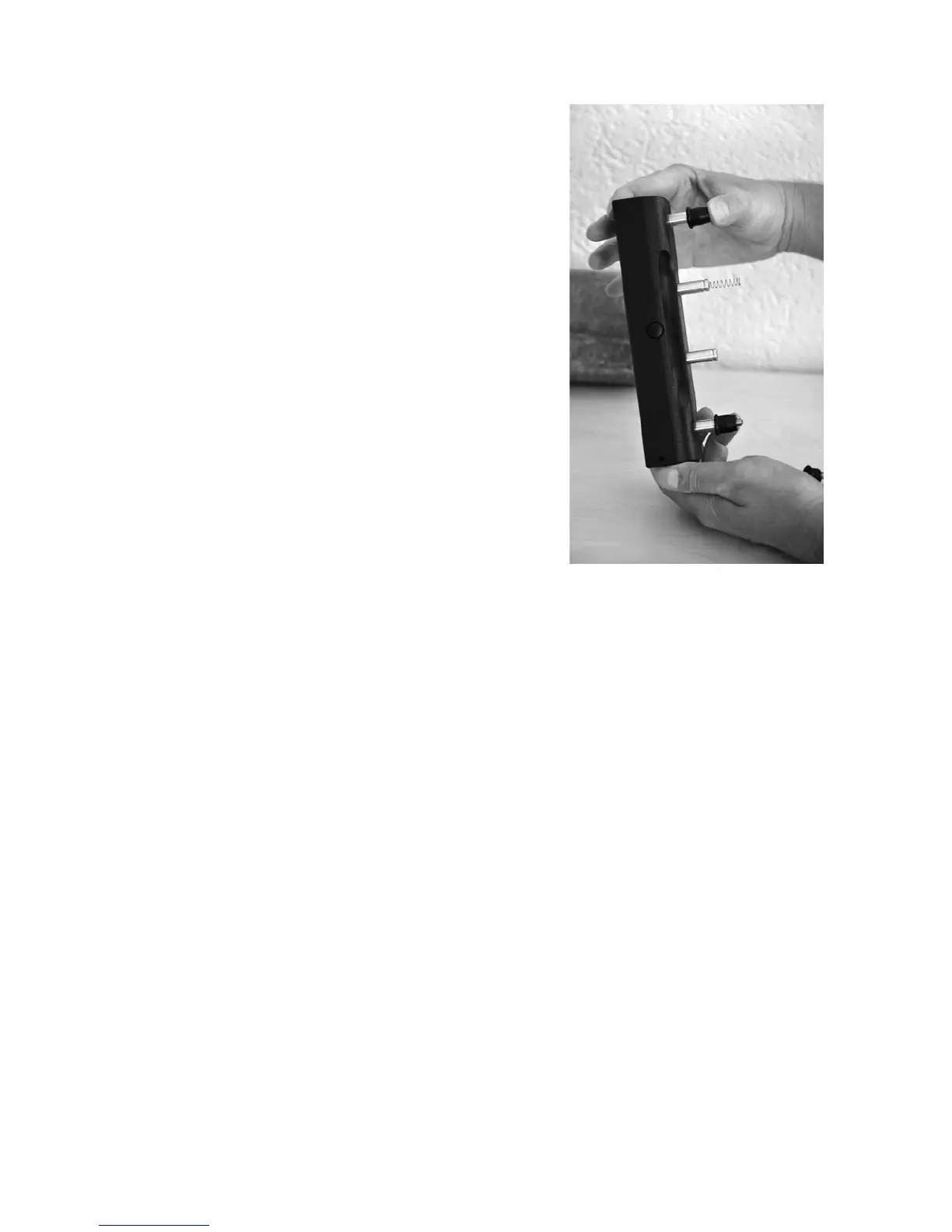

After cleaning, replace the probes by inserting them into
the shafts and snapping them firmly into place. Ensure the
fit by pressing on the rubber cap as shown in the figure.
Long caps go on outer probes.
Probes need not be kept moist when the unit is not in use.
The unit can be rinsed with water (make sure USB cover is
firmly in place). Since the instrument has an extremely high
input impedance, check that the underside of the case is
clean (dirt or salt deposits might create leakage currents
and yield faulty readings).
Note! The springs are intentionally long to ensure a con-
stant pressure on all four probes, while allowing a ± 4 mm
displacement on the inner tips to accommodate uneven or
curved surfaces.
Support Concept
Proceq is committed to providing a complete support service for this instrument by means of our
global service and support facilities. It is recommended that the user register the product on www.
proceq.com to obtain the latest on available updates and other valuable information.
Standard Warranty and Extended Warranty
The standard warranty covers the electronic portion of the instrument for 24 months and the me-
chanical portion of the instrument for 6 months. An extended warranty for one, two or three years
for the electronic portion of the instrument may be purchased up to 90 days of date of purchase.
