prodelin 3.8M - Page 22

4096-535
PRODELIN CORPORATION 3.8M C-BAND Rx/Tx ANTENNA SYSTEM
20
STEP 2:
STEP 3:

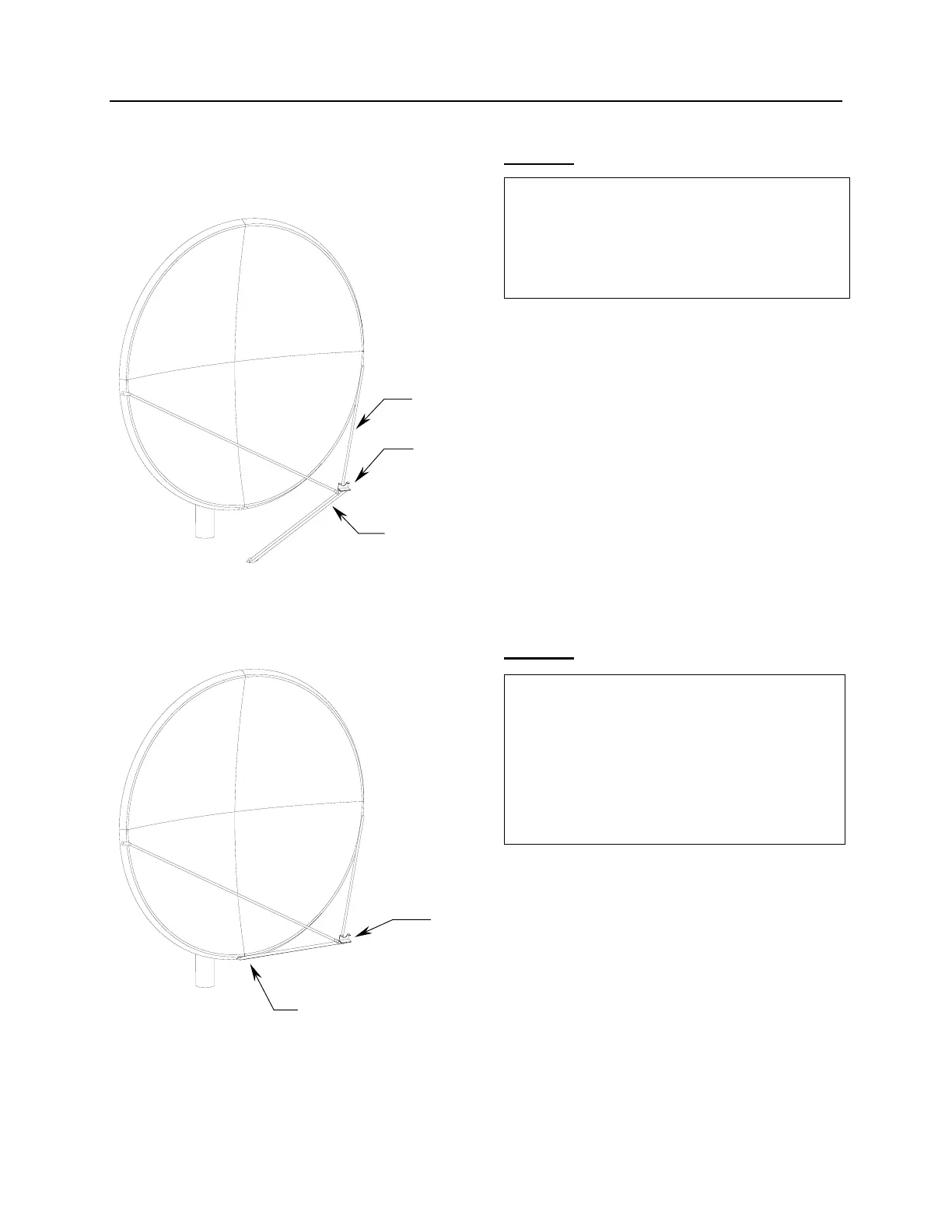

Position the feed support (item 2) in front
of the reflector as shown and attach to
the to ends of the feed rods with 1/2”
hardware (items3, 5, 6, 7).
See Detail E.
See Detail E
Feed Support
Mount the other end of the feed support
along with the feed stabilization brackets
and pivot assembly to the bottom of the
reflector with 3/8” hardware (items 4,
8, 9, 10). See detail F. Tighten all
feed support hardware at this time.
See Detail F
Feed Support
Feed Rods
