prodelin 3.8M - LNB;LNA Connection Procedure

4096-535
PRODELIN CORPORATION 3.8M C-BAND Rx/Tx ANTENNA SYSTEM
30

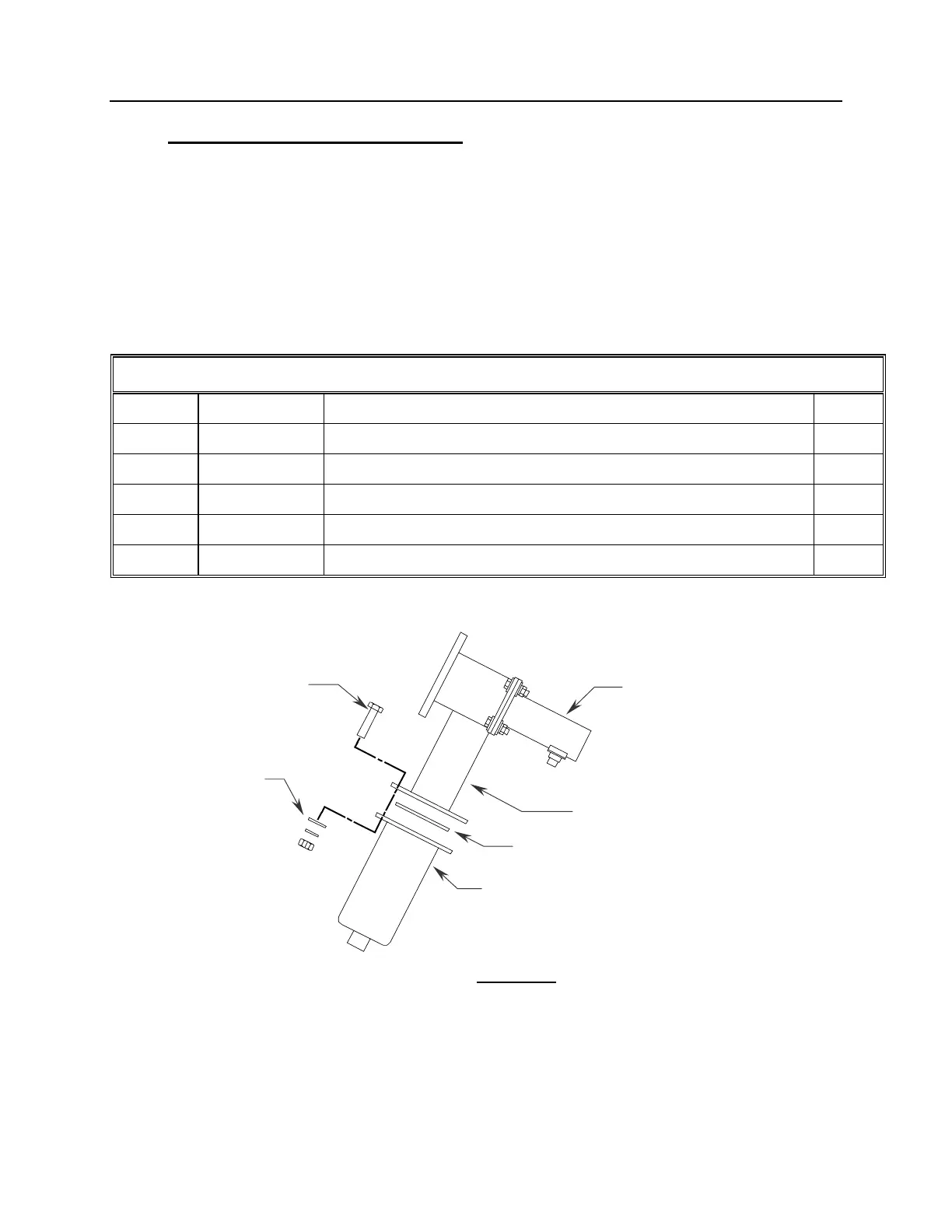

4.5 C-BAND LNB/LNA ATTACHMENT
1. Apply silicone grease to gasket (item#1) and place gasket in groove in flange of
LNA/LNB (customer supplied), as shown below in figure 9.
2. Attach LNA/LNB to side port (Rx) flange of OMT with (10) 1/4-20 x 1.00" bolts,
(10) 1/4" flatwashers, (10) 1/4" lockwashers, and (10) 1/4-20 hex nuts
(items 2,3,4,5).
3. Tighten 1/4" hardware securely.
PARTS LIST - C-BAND LNB/LNA ATTACHMENT
ITEM # PART # DESCRIPTION QTY
1 0171-073 GASKET, CPR WR2296 FLANGE HALF-THICK 1
2 8023-008 BOLT, 1/4-20 X 1.00" TYPE 304 S.S. STD. 10
3 8201--036 FLATWASHER, 1/4" S.S. STD. 10
4 8202-031 LOCKWASHER, 1/4" S.S. STD. 10
5 8100-005 NUT, HEX, 1/4-20 S.S. STD. 10
OMT
Side Port (RX)
LNA / LNB
[ 2 ]
[ 1 ]
[ 3, 4, 5 ]
Figure 9
