PRODELIN CORPORATION 3.8M C-BAND Rx/Tx ANTENNA SYSTEM
23
1. Attach the bottom feed mounting bracket (item 2) to the feed support tube with
four [4] 3/8-16 x 1.25" bolts, four [4] 3/8" lockwashers, and four [4] 3/8-16 hex
nuts (items 4,5,6) as shown. Tighten securely.
2. Place the neck of the feed horn into the cradle of the bottom mounting bracket
and secure in place by placing the top mounting bracket (item 3) over the neck of
the feed horn and fastening with two [2] 5/16-18 x 1.00" bolts, two [2] 5/16"
lockwashers and two [2] 5/16-18 hex nuts (items 7,8,9 Tighten securely.
[ 3 ]
[ 2 ]
[ 7, 8, 9 ]
[ 1 ]
[ 4, 5, 6 ]

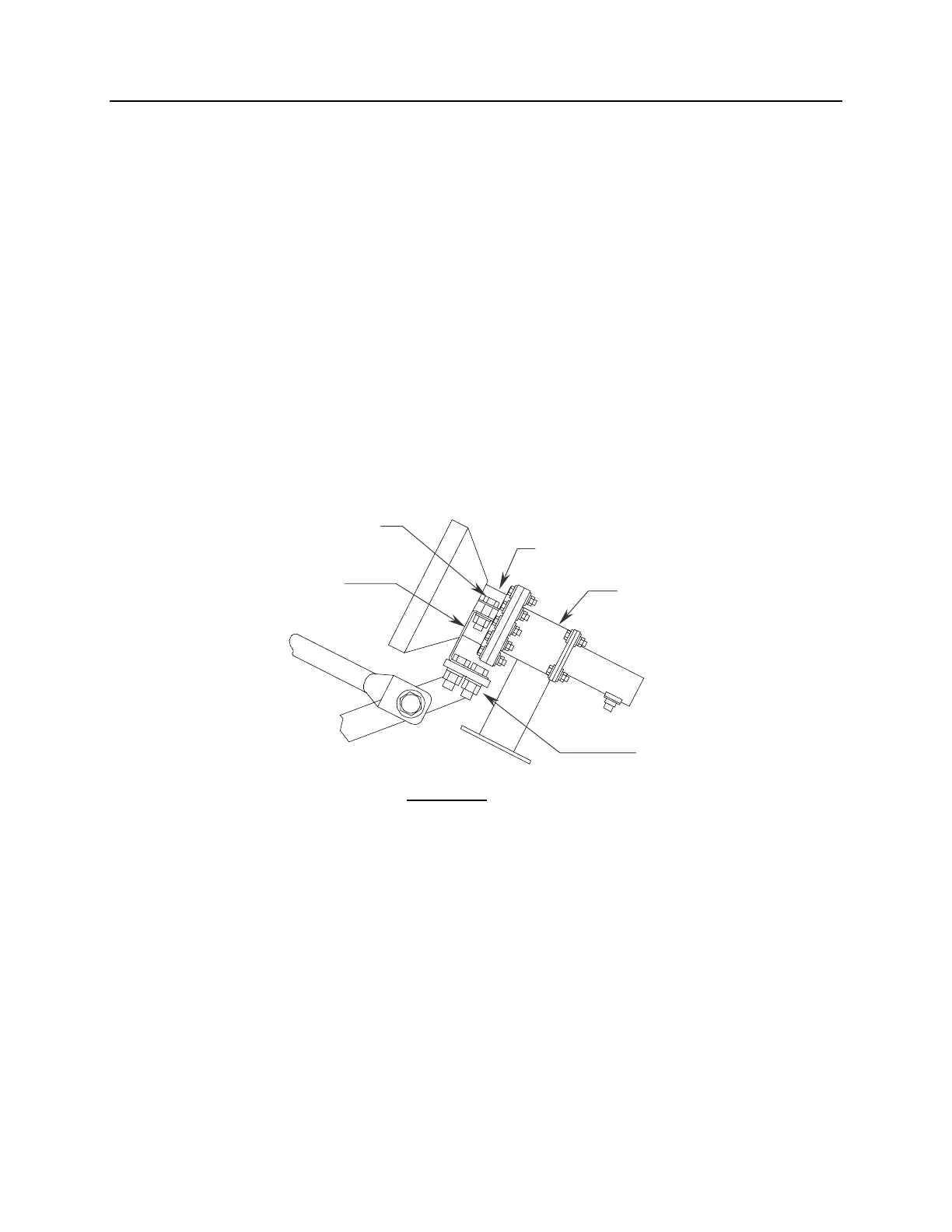

Figure 6
