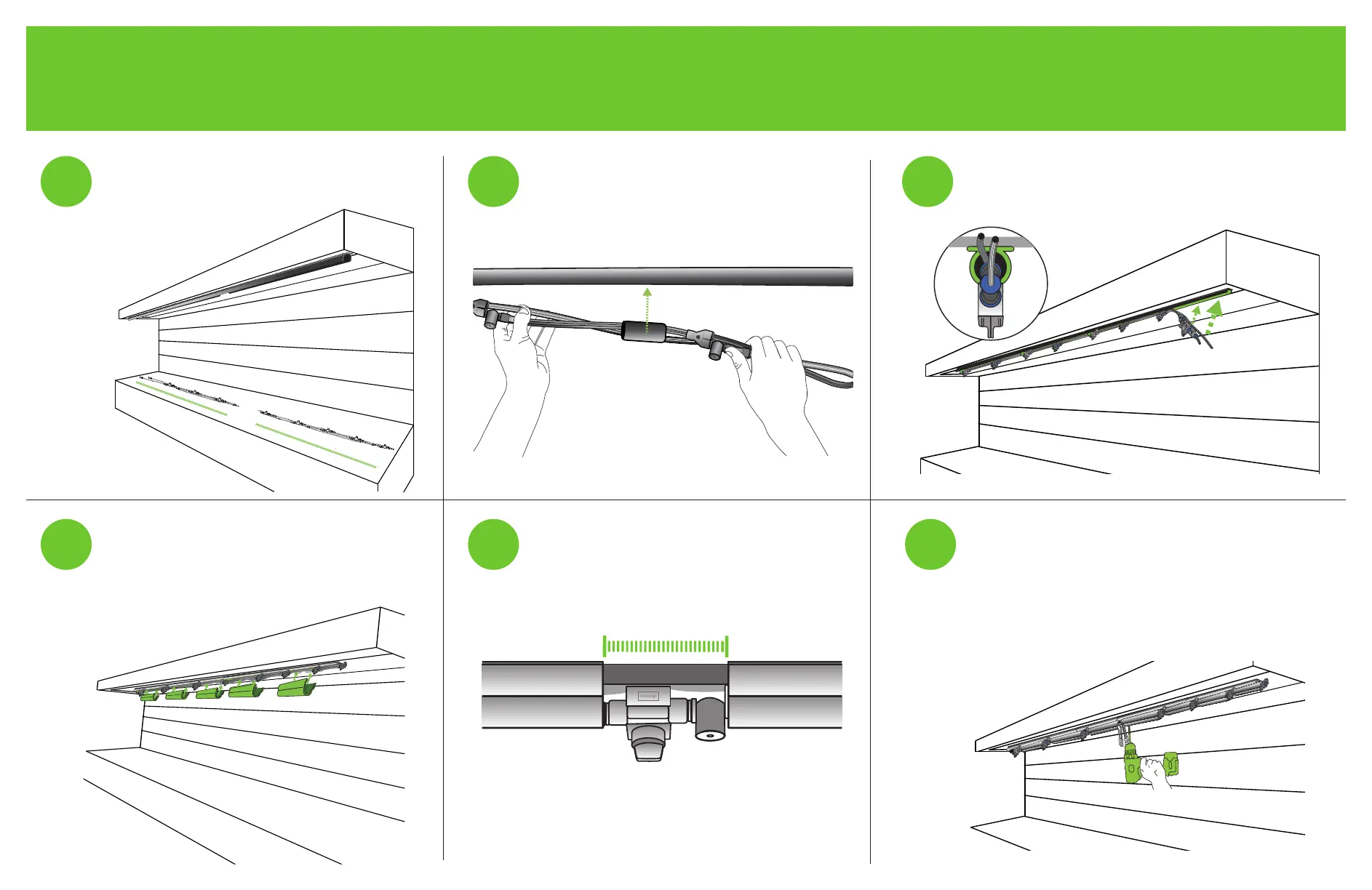

Drill a hole for the feed lines in the case ceiling
behind the track (approximately 6in).
The hole should be drilled in the middle of the
case where the two lines of track meet.
Ensure that no water, air, electrical or
refrigerated lines are in the way.
When placing the covers, do not place
over the nozzles and shut-off valve. Make
sure to leave a gap as to not obstruct
valve and mist.
Snap the covers over the lines onto the
mounting clamp. The covers will t between
the nozzle and shutoff valves on the
exposed tubing (some trimming may be
needed for proper t).
Using 3/4in tubing on the track line, insert
the lines into the clamp. (Try not to twist the
lines as you install.)
Spread the lines across the area to be
fogged, starting from the center point and
going in each direction.
Once the lines are in place, ensure that all
tubing ts into the clamp.
