System Installation
131211
14
15
Connect the Y-divider ttings to the tubing from
couplers.
1/4”
WATER
1/4”
AIR
CASE CEILING
16

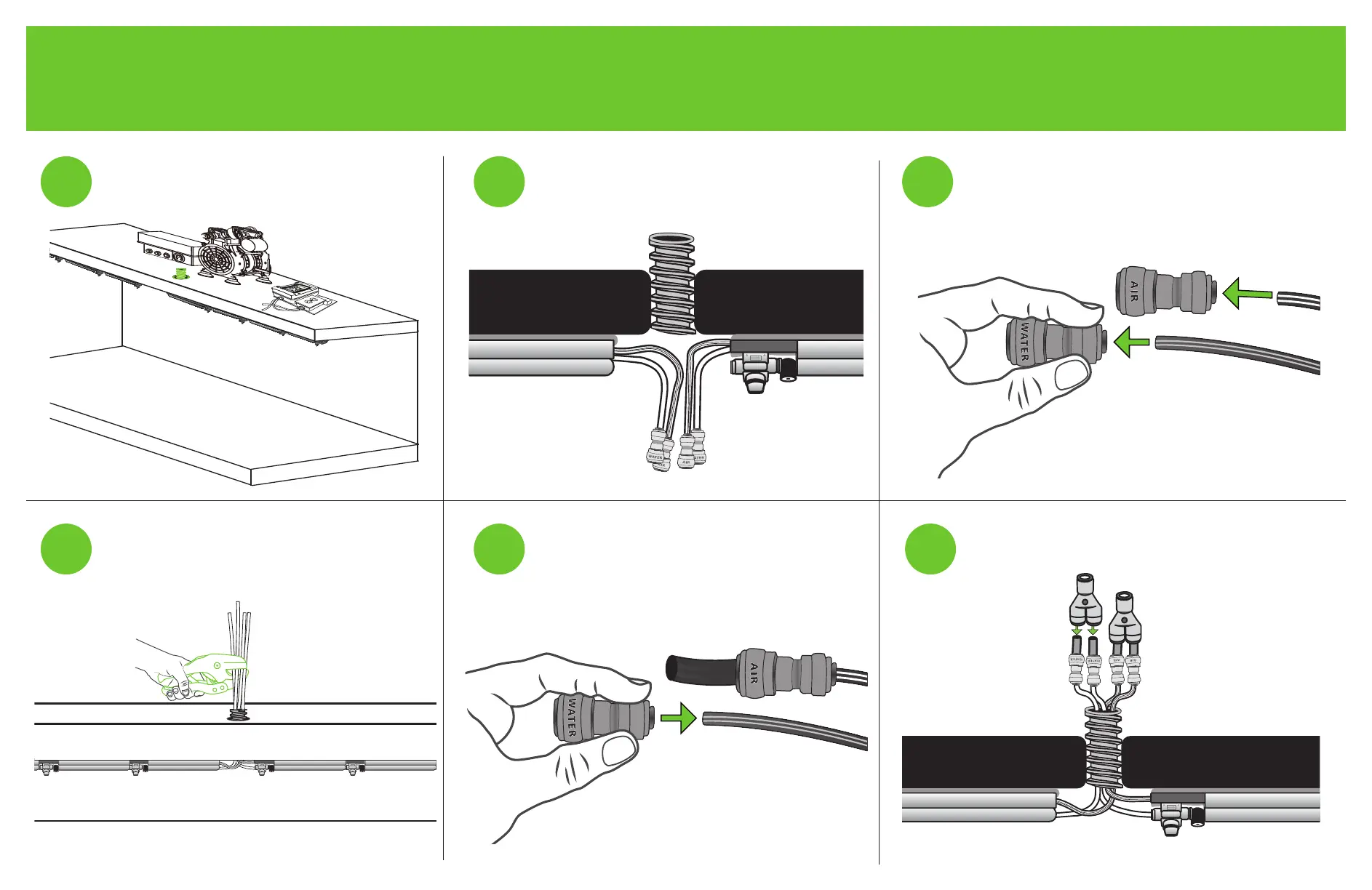

Insert a piece of corrugated tubing into
the hole to protect the lines.
Remove the couplers from the ends of the
track liners to be able to guide lines through
the corrugated tubing.
CASE CEILING
Once the corrugated tubing is set into place
it’s time to connect track lines to the controls.
Run the 6mm air and water lines through the
corrugated tubing. Cut to length if needed.
Re-attach couplers. Insert a 1/2in piece of
3/8in tubing into each coupler to connect to
the Y-divider tting.
Be sure that both
air lines are going
to one Y, and
both water lines
are going to the
other Y.
To Next Page
