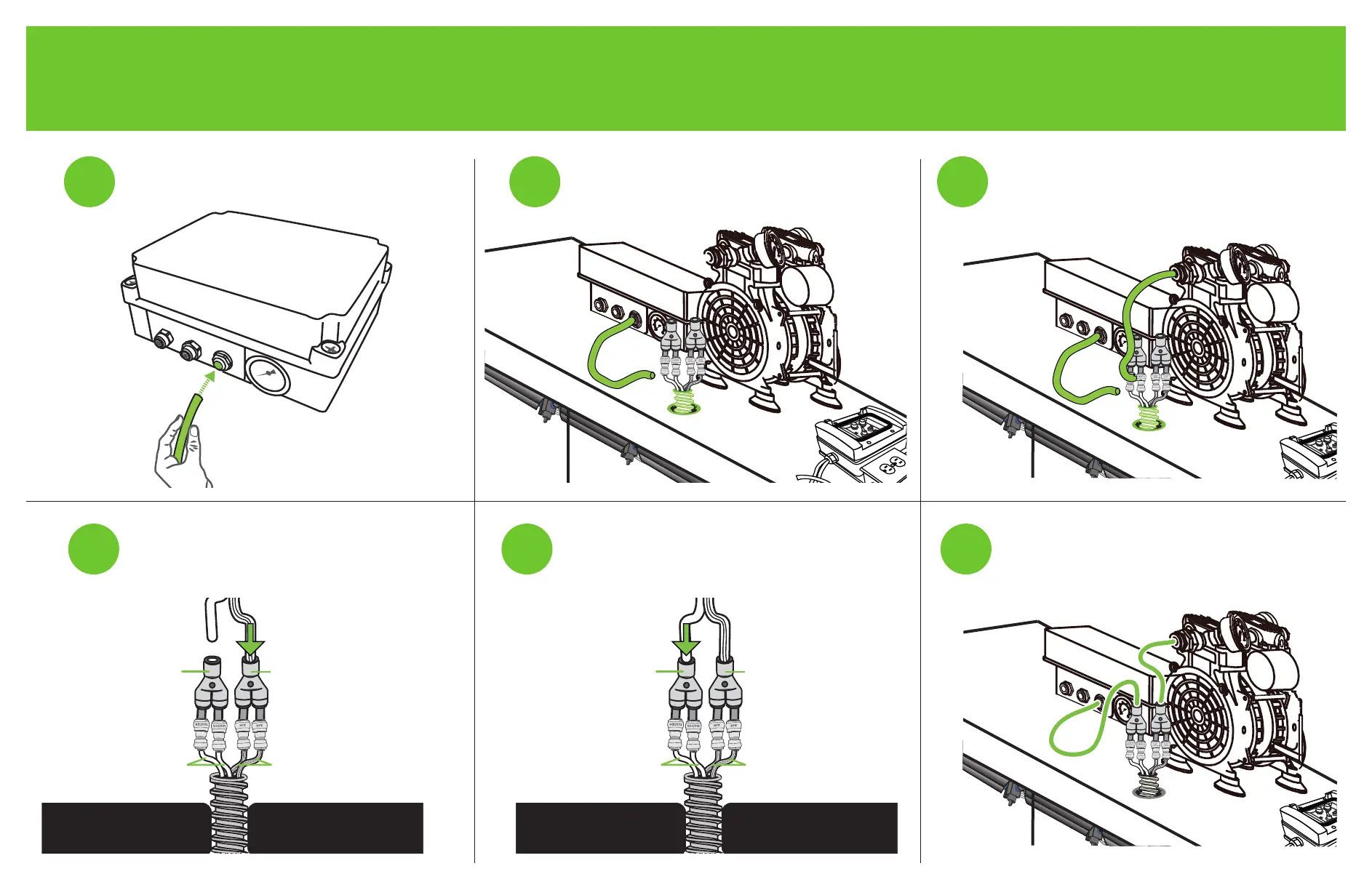

System Installation
19
20
Run 3/8in air tubing from the air compressor
to air Y-divider.
Cut to length.
21
3/8”
WATER
3/8”
AIR
1/4”
WATER
1/4”
AIR
CASE CEILINGCASE CEILING
Connect the 3/8in air tubing from the
air compressor to the Y-divider with the
6mm air lines.
Connect the 3/8in water tubing from the mist
control box to the Y-divider with the 6mm
water lines.
Attach the 3/8in water tubing to the port
labeled “NOZZLE” on the mist control box.
Run 3/8in water tubing to water
Y-divider.
Cut to length.
17 18
Your lines should look like this after they’re
runt, cut to length, and connected.
3/8”
WATER
3/8”
AIR
1/4”
WATER
1/4”
AIR
CASE CEILINGCASE CEILING
22
