6.2.- CLEANING WATER DISTRIBUTOR AND INJECTORS

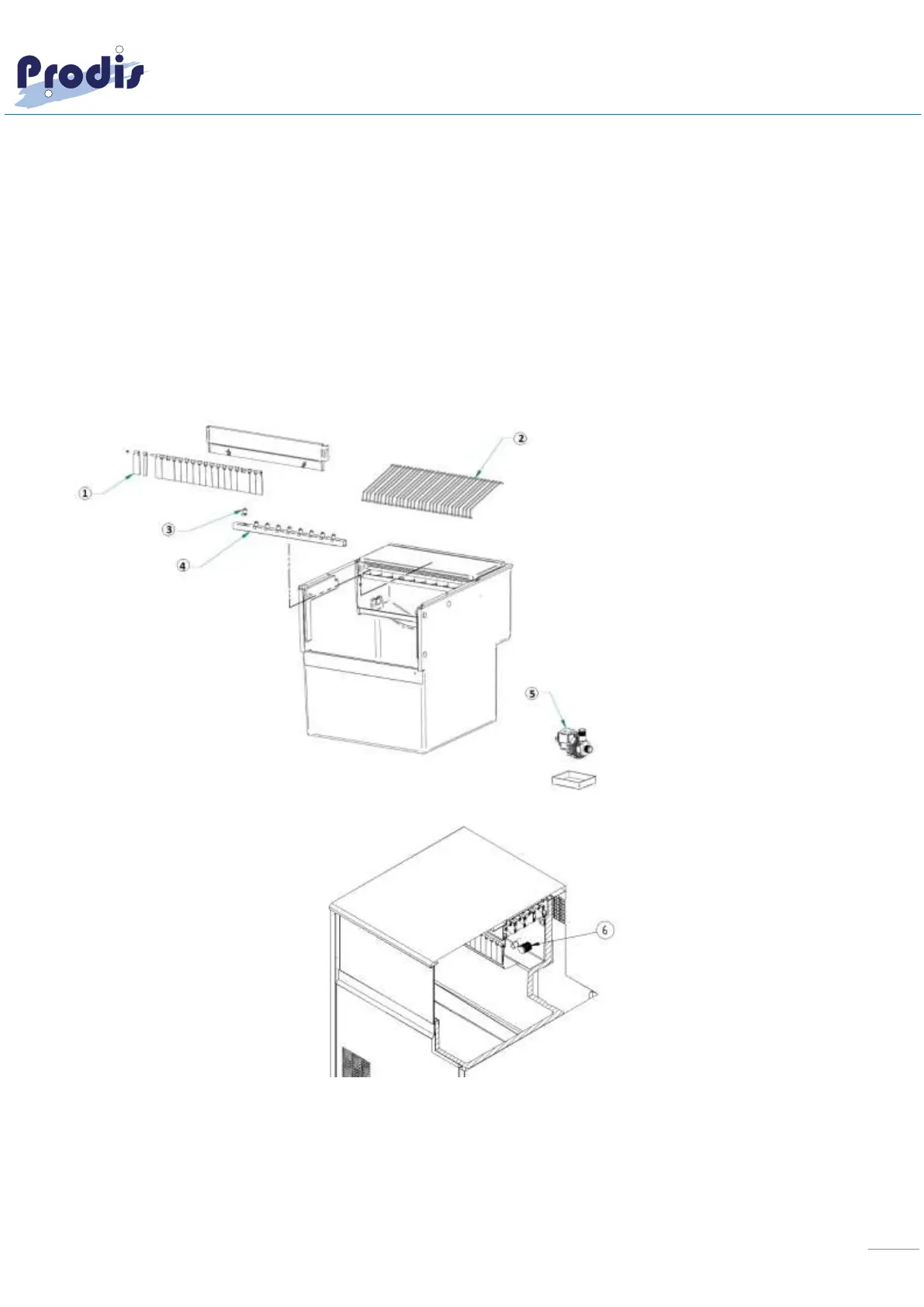

1) Remove the curtain (#1). (Take advantage to clean it with Calklin or some non-aggressive product, rinse, clean
with bleach and rinse under the tap).
2) Remove the ice fall grill (#2). (Clean it just like the curtain).
3) PULL UP THE COLLECTOR (#4) (IT IS PRESSURE MOUNTED)
4) Remove the injectors (#3) and the manifold covers, clean them.
5) Remove and clean the main suction filter (#6) of the pump (#5). (IT IS PRESSURE MOUNTED)
6) Fit filter, injectors, and collector.
ATTENTION: IT IS VERY IMPORTANT, WHEN REPLACING THE MANIFOLD THAT THE INJECTORS ARE
COMPLETELY PERPENDICULAR TO THE SAME. IF THE CUBES AT THE END ARE TWISTED, THEY CAN
REMAIN WITHOUT WATER.
