Page 21
When there is no battery connected to the unit, these icons will not be shown in
the user interface.

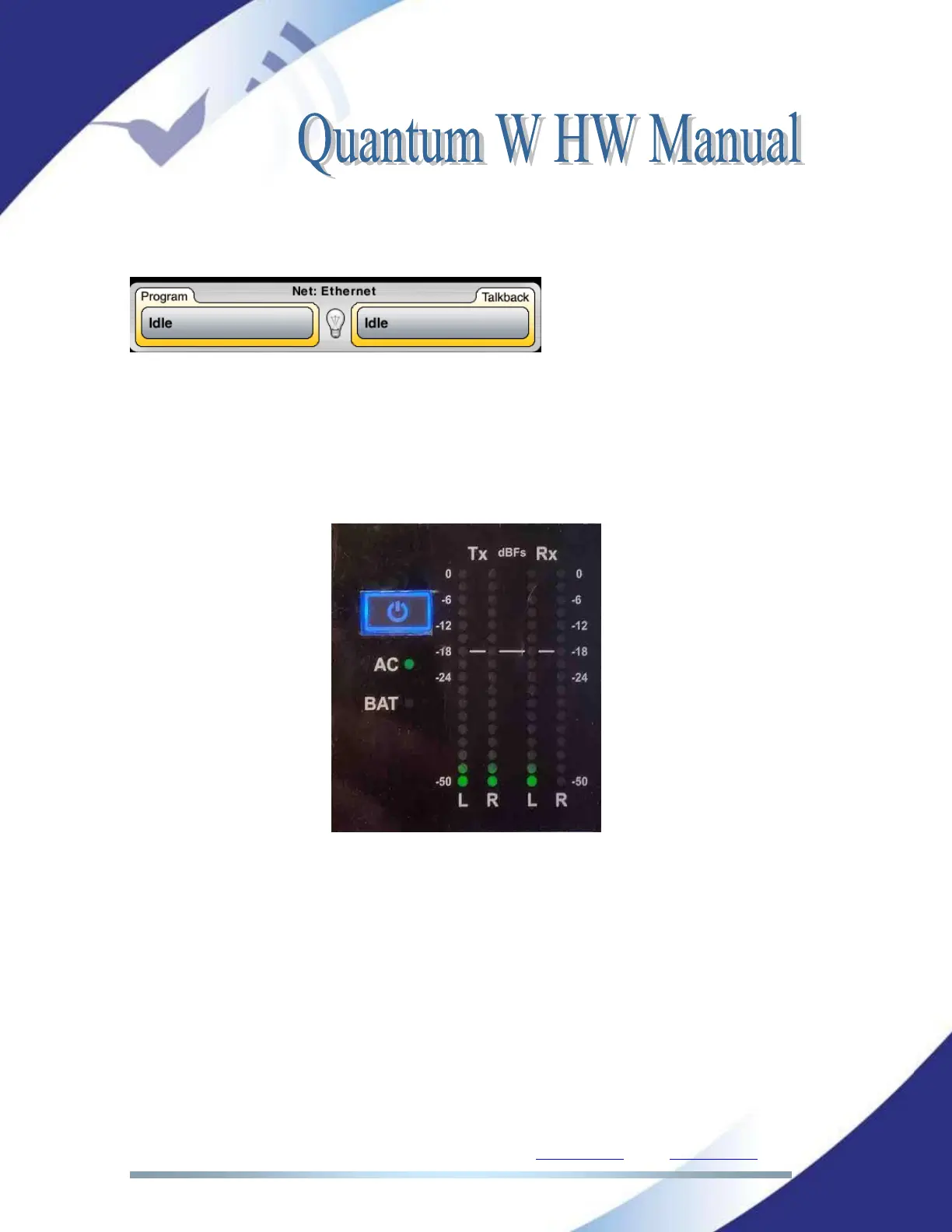

II.3.2 Vu-meter indication
Instant Vu-meter indication is provided on four vertical LED bars. It lights green
while the input signal matches the proper dynamic range.
The two Vu-meter bars on the left stands for the program audio input mix (left
and right).
The two Vu-meter bars on the right indicate the level of the incoming PROGRAM
stream (left and right).
