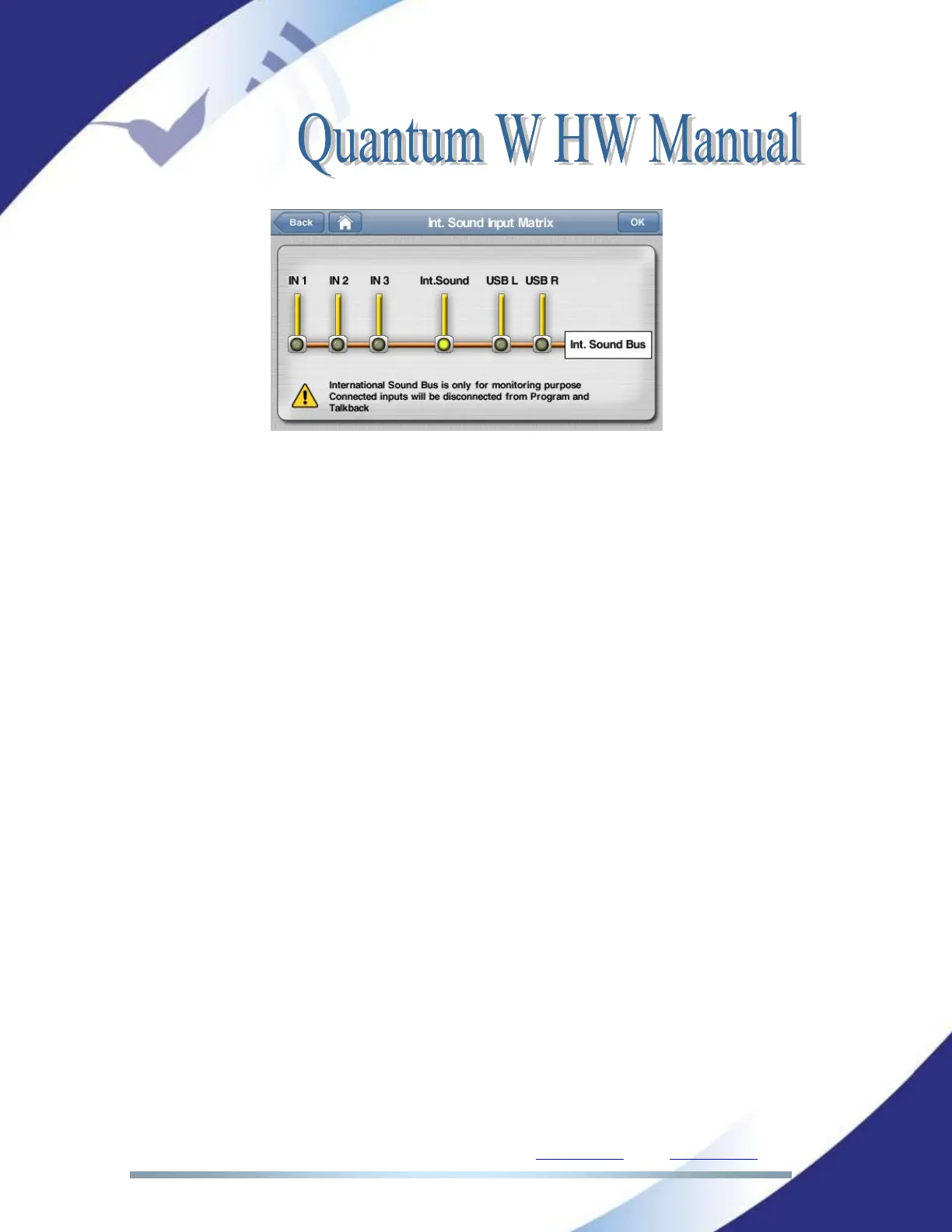

With this matrix layout example following routes are provided:
IN3 is always and only available for the Talkback bus.
IN1 and IN2 are mixed together on the PGM bus if
their
TB button
remains deactivated (
dark
).
IN1 and IN2 are mixed together on the Talkback bus if
their
TB button is
active.
USB L is available only for L channel of the PGM signal. Therefore the USB
audio is never available on the talkback bus.
USB R is available only for R channel of the PGM signal. Therefore the
USB audio is never available on the talkback bus.
Int.Sound is always and only available
locally
for International Sound
monitoring.
III.5 Adjusting the accuracy of the audio level controls
It is possible to adjust accuracy of the audio level controls for the MIC/Line level
inputs and for the headphone outputs from the Quantum W web page as it can
be seen on the picture below.
