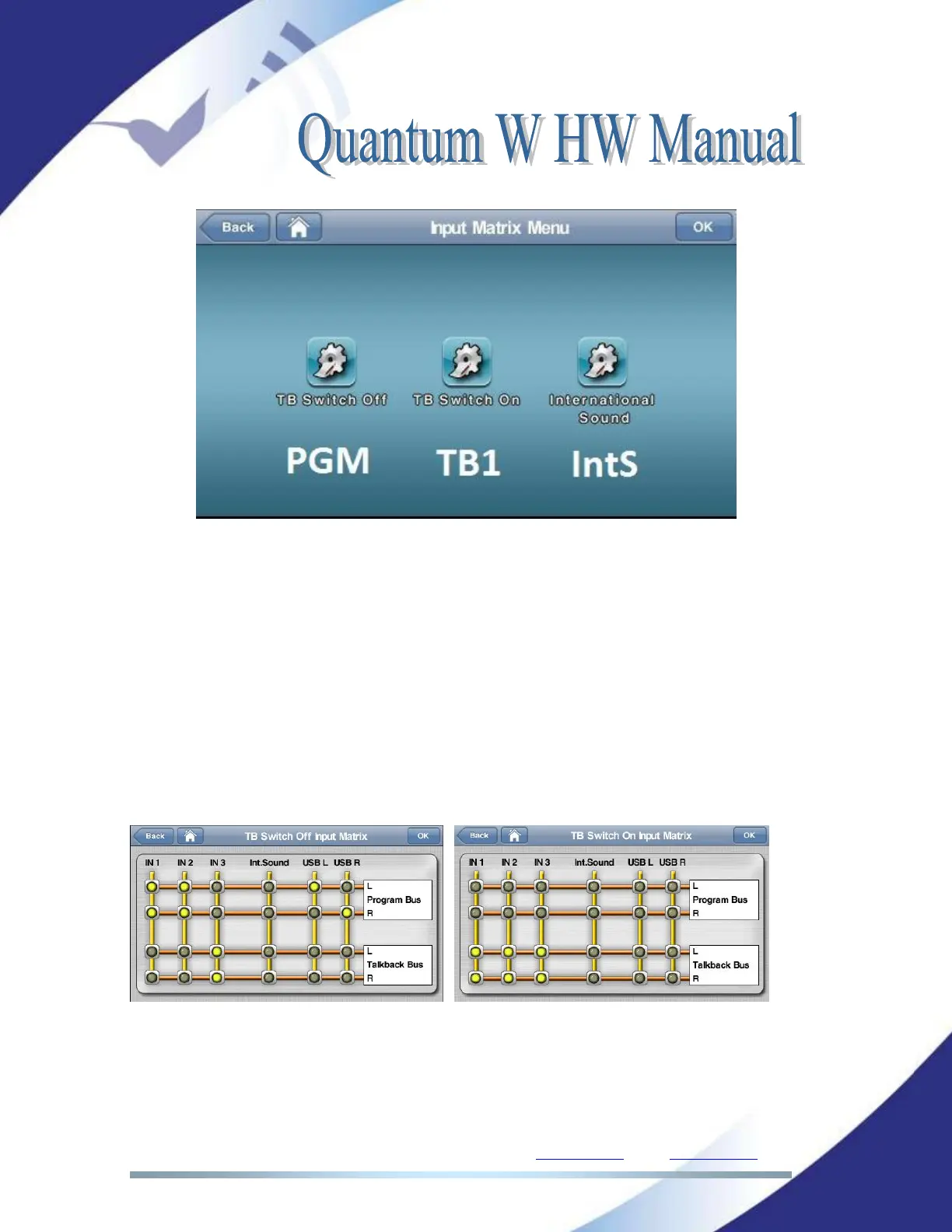

III.4.1 One example of input matrix layout (with BRAVE protocol)
The PGM matrix/mix is available at ‘Menu->Audio->Input Matrix->TB Switch
OFF’.
Let us provide following example PGM configuration as the left hand matrix.
The Talkback matrix/mix is available at Menu->Audio->Input Matrix->TB Switch
ON’.
Let us provide following example talkback configuration as the right hand matrix.
PGM or TB is OFF Talkback or TB is ON
The example for the International sound bus is arranged as following picture
