5. HOW TO USE THE SYSTEM

Wire connections as shown in the following schematic, connect the plug (fig. 2, ref. 8) to a power outlet and

turn the main switch (fig. 1, ref 1) to the ON position.

When the Larsen effect occurs, activate the SHIFT function by pressing MODE (fig. 1, ref 2), if even with the

SHIFT enabled we are in the presence of the Larsen effect, reduce the gains of the microphones on the mixer

or the levels of signal in the output amplifier stage.

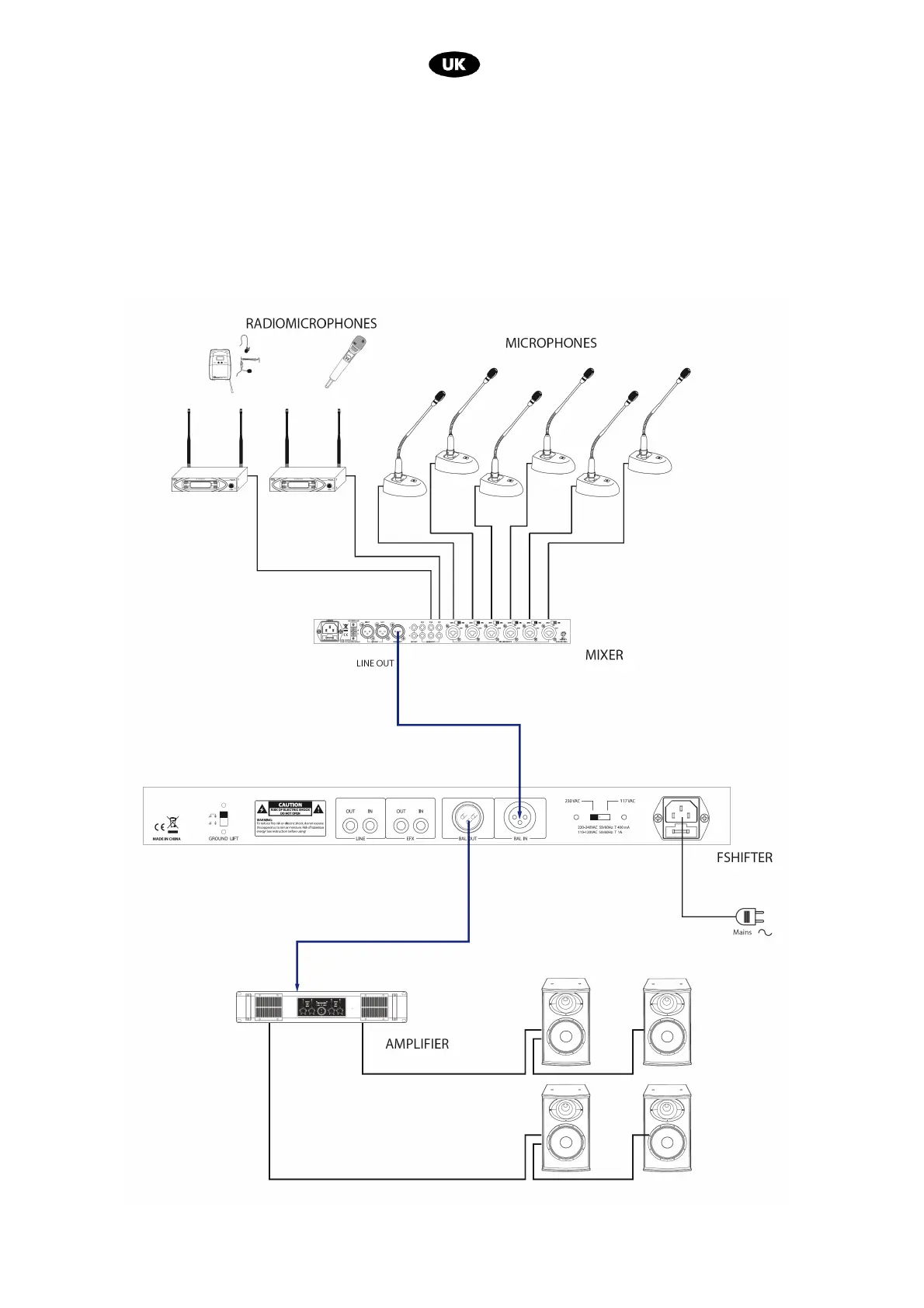

DIAGRAM OF USE WITH MIXER AND AMPLIFIER
