6. CONNECTIONS TYPES

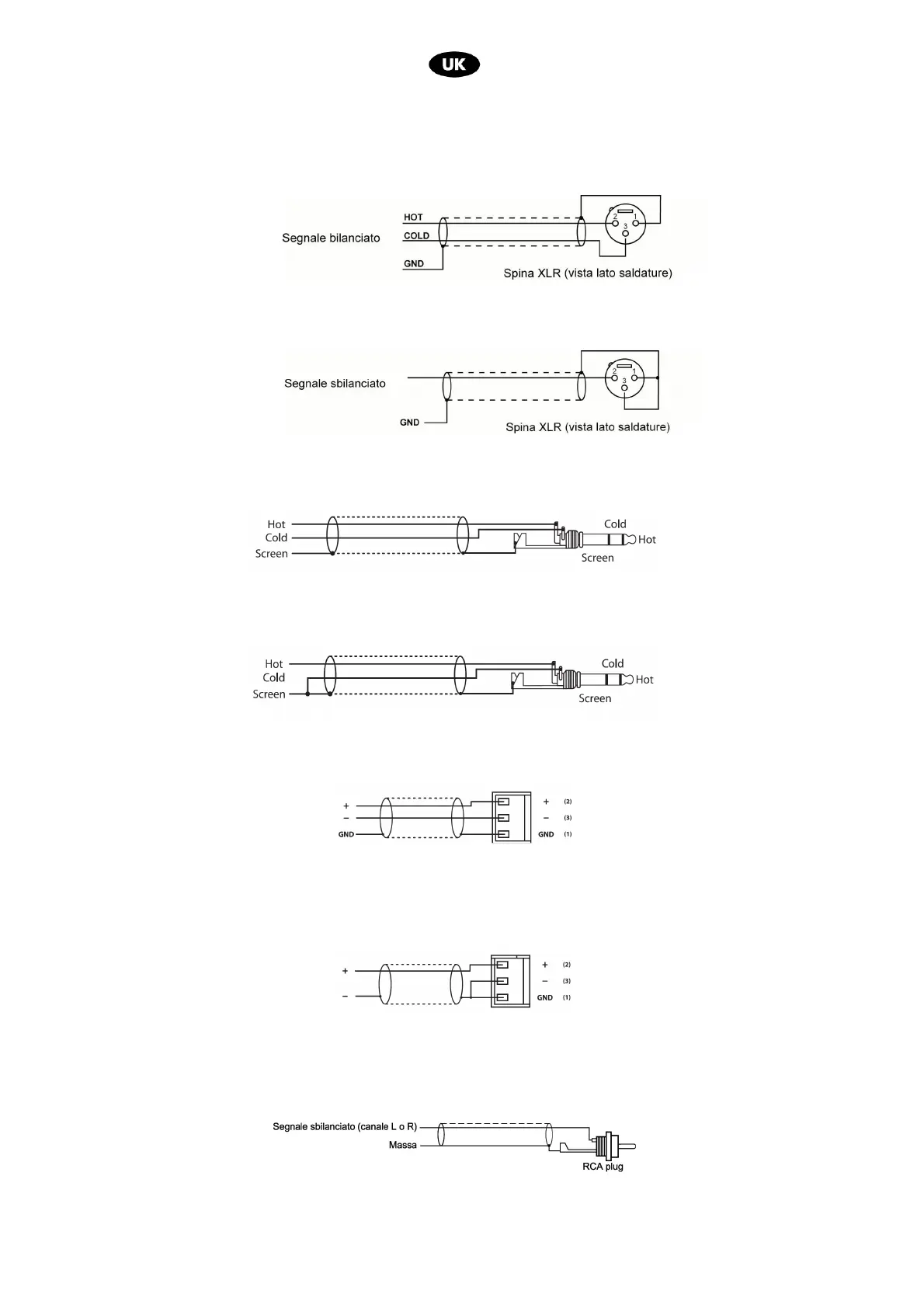

Balanced Connection:
Unbalanced Connection:
Balanced Connection to stereo jack
Unbalanced Connection to stereo jack
Balanced Connection to EUROBLOC connector
Unbalanced Connection to EUROBLOC connector
RCA Connection
