PROEL LIGHTING LED - Page 31

31

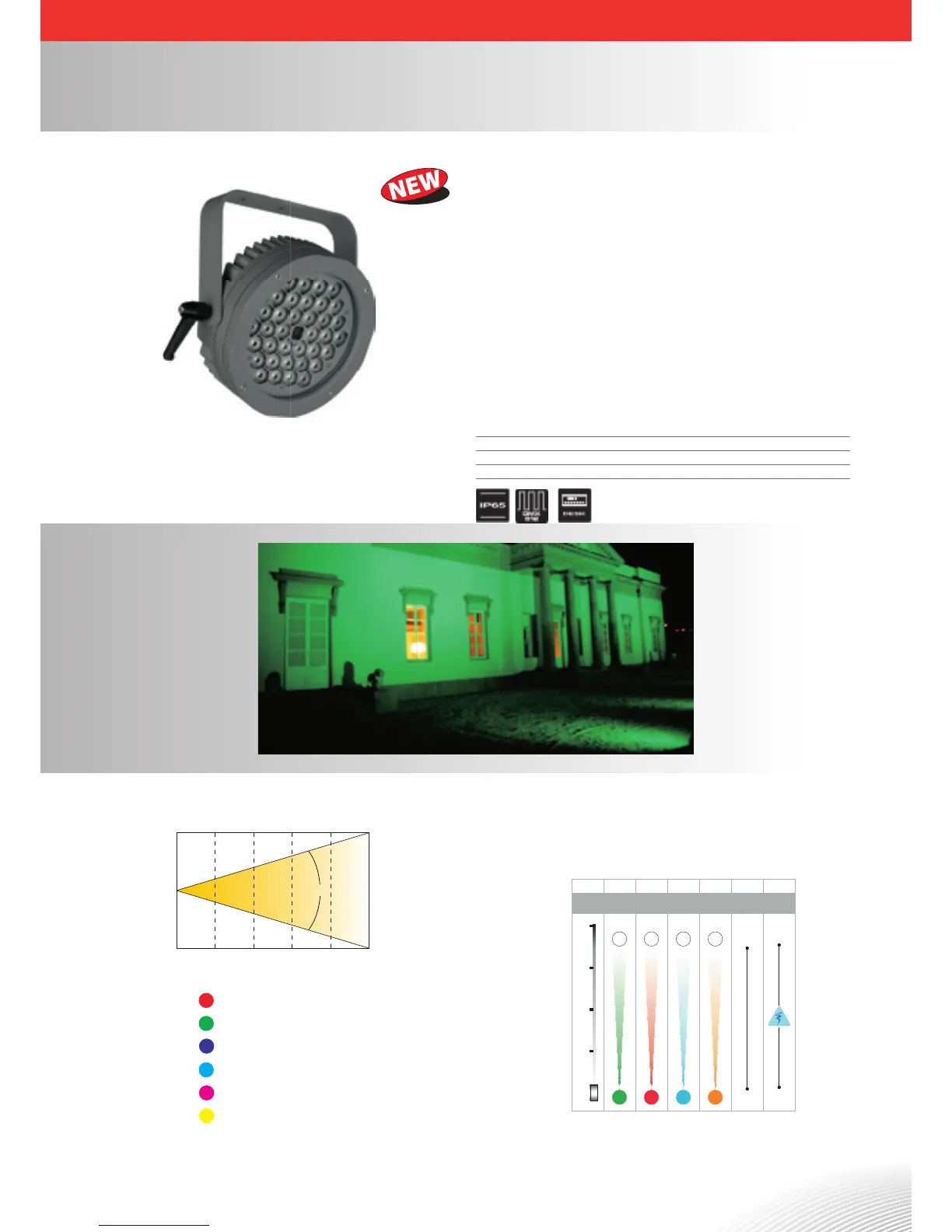

LED Projector
Power supply: 195-265V – 50/60Hz
Rated Power: 44W
LED: 36 1.2W RGB LEDs (12R – 12G – 12B – Cree LEDs)
Lens: 30° (12°, 45° and elliptical lenses available)
Eff ects: Dimmer 0-100%, Strobe
Control: 6-channel DMX – Stand Alone – Master/Slave
External power supply unit
IP rating: IP65
This unit complies with CE directives
The PLLEDTSS30 is a high power LED colour changer, ideal for use in alumi-
nium truss structures.
This fi xture is designed both for indoor and outdoor applications thanks to
its IP65 protection rating, which makes it particularly suitable for any kind of
special installation.
1
0.35
2
0.71
3
1.06
4
1.41
5
1.77
4930LUX full on
Distance (m)
Diameter (m)
1233 548 308 197
50%
100%
50%
30° LENSES
20°
RED lux = 39% of maximum light
GREEN lux = 46% of maximum light
BLUE lux = 15% of maximum light
CYAN lux = 61% of maximum light
MAGENTA lux = 54% of maximum light
YELLOW lux = 85% of maximum light
6 channels DMX
100
75
50
25
0
DMX
Strobe
sync
Value Ch5
Slow
Fast
Strobe
Ch6
Red
Ch2
Green
Ch1
Blue
Ch3
Not used
Ch4
OFF
ON
Power : 195 - 265V - 50/60Hz
LED: 36 RGB - 1,2W - (12R - 12G - 12B)
Size: L245xW75xH245 mm (projector) - L205xW152xH100 mm (controller)
Weight: 4 Kgs (projector) - 1,9 Kgs (controller)
PLLEDTSS30
