PROEL LIGHTING LED - Page 46

46

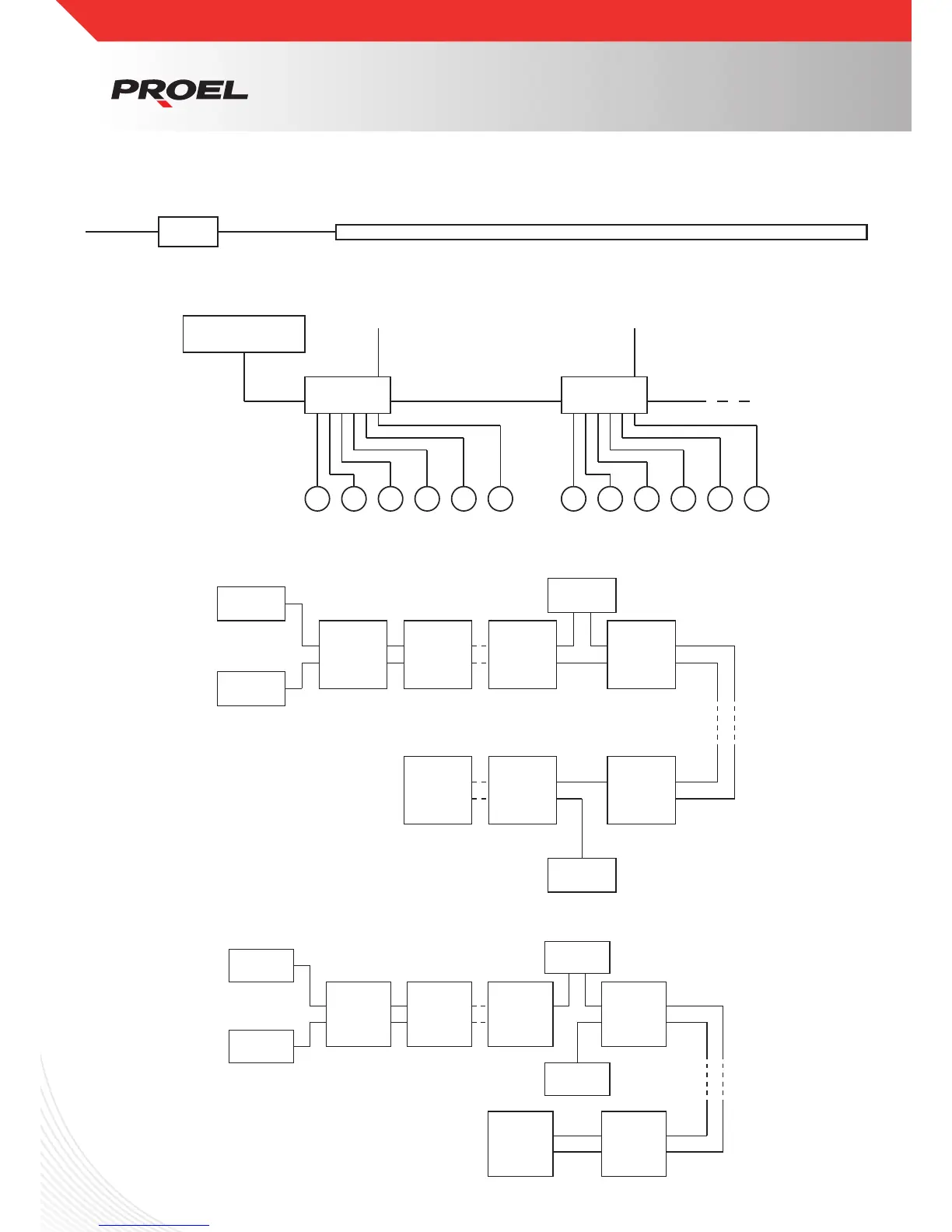

Connections
Connection for LED tubes flex type
Connection for fountain LED projector
Connection for outdoor LED panel
Connection for indoor LED panel
PLLEDJB
n°6 PLLEDFTH n°6 PLLEDFTH
DMX controller
Power in
Signal out Signal out
PLLEDJB
Power in
PLLEDC181
Power in
Max 30 mt of PLLEDFXRGBR
Max 15 mt of PLLEDFXRGB
PLLEDPN2
1 2
61
126
127
60
PLLEDC109SA
Power supply
Power supply
DMX
CONTROLLER
PLLEDPN
1 2
300
31
45
46
30
PLLEDC109SA
Power supply
Power supply
PLLEDC109
