PROEL M-6 - Connections; Connessioni

14
ENG ITA

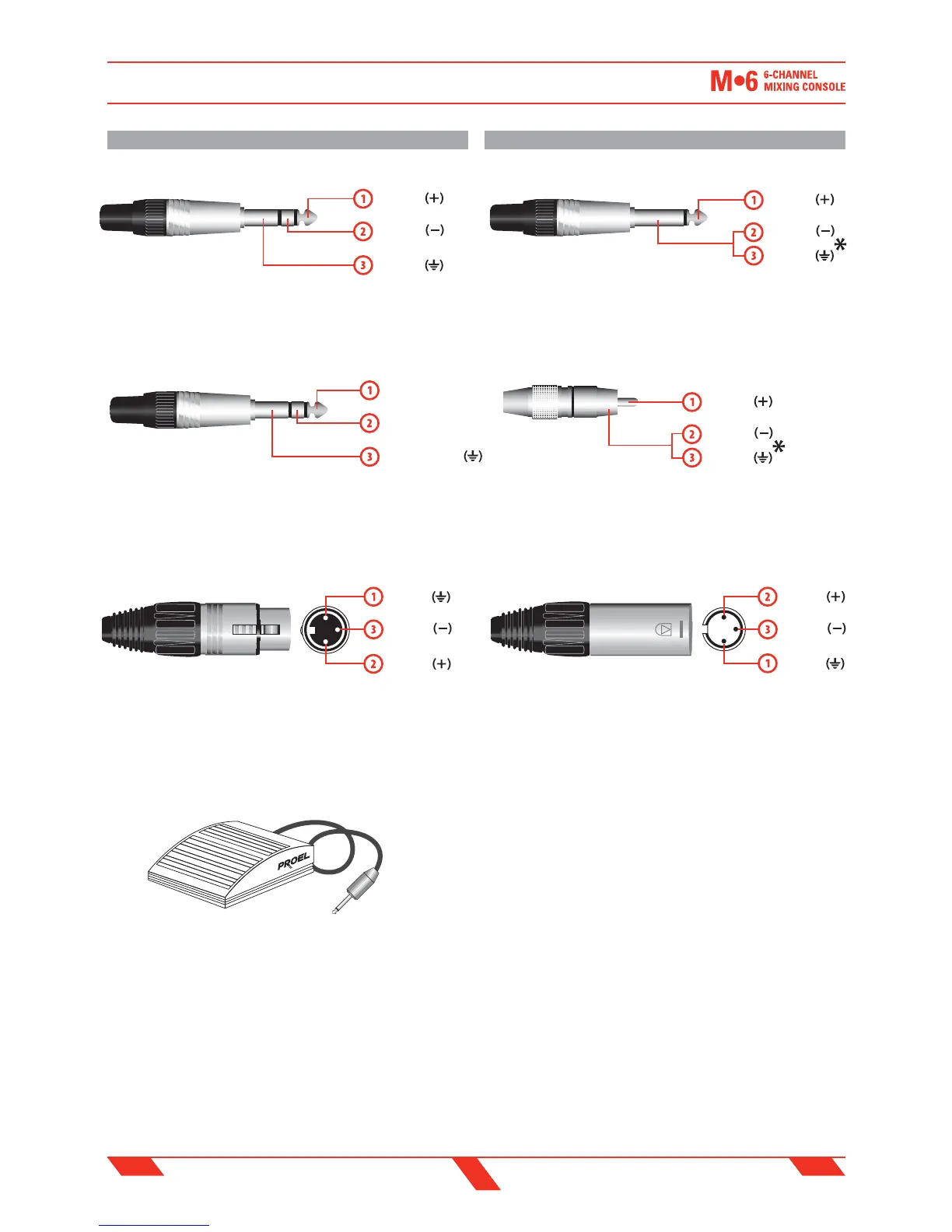

CONNESSIONICONNECTIONS
LINE IN, OUT vari
Jack (bilanciato)
LINE IN, various OUT
Jack (balanced)
ground
hot
cold
LINE IN, OUT vari
Jack (sbilanciato)
LINE IN, various OUT
Jack (unbalanced)
ground
hot
cold
*nota: connettere insieme cold e ground
per cavi da bilanciato a sbilanciato
*note: connect both cold and ground
to make cable from balanced to unbalanced
PHONES
Jack stereo
PHONES
Stereo Jack
OUTPUT
XLR bilanciato femmina
OUTPUT
Balanced female XLR
proel code: PFS29 or PFS24 (optional)
Normally open momentary footswitch
Pedale a interruttore momentaneo normalmente aperto
ground
hot
cold
OUTPUT
XLR bilanciato femmina
OUTPUT
Balanced female XLR
ground
hot
cold
tip - left
ring - right
sleeve - ground
2TRK IN, OUT
Jack (sbilanciato)
2TRK IN, OUT
Jack (unbalanced)
ground
hot
cold
*nota: connettere insieme cold e ground
per cavi da bilanciato a sbilanciato
*note: connect both cold and ground to
make cable from balanced to unbalanced
CONNECTIONS
CONNESSIONI
