PROEL SW115HA - Accessories; Speaker Stand KP210; Control Panel; Control Panel Overview (FIG. 2)

5
accessories
FIG. 1 / 2

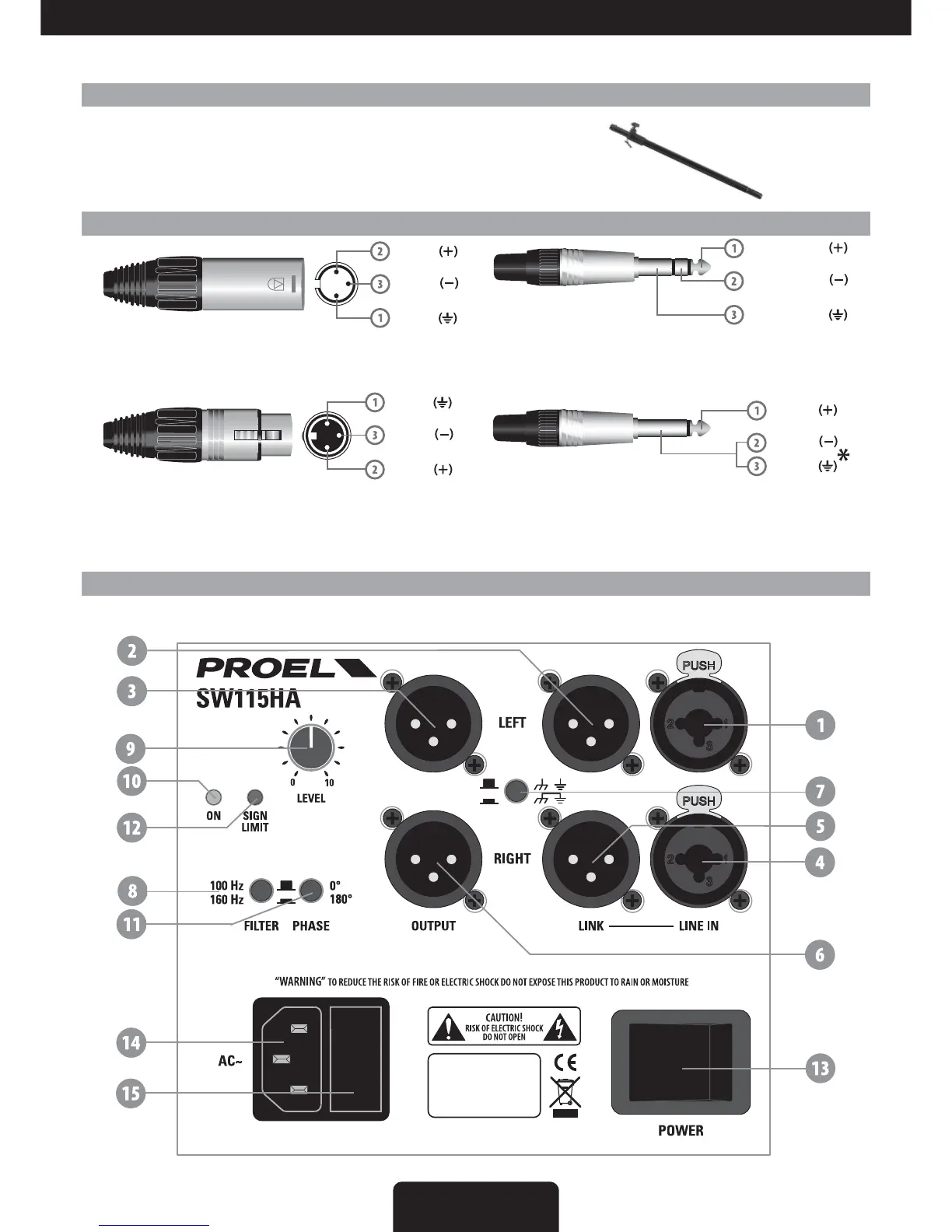

ACTIVE - CONNECTIONS (FIG. 1) ATTIVA - CONNESSIONI (FIG. 1)
INPUT (ingresso)
Jack (bilanciato)
INPUT
Jack (balanced)
sleeve - ground
tip - hot
ring - cold
INPUT (ingresso)
XLR bilanciato maschio
INPUT
Balanced male XLR
ground
hot
cold
INPUT (ingresso)
Jack (sbilanciato)
INPUT
Jack (unbalanced)
ground
tip - hot
cold
*nota: connettere insieme cold e ground
per cavi da bilanciato a sbilanciato
*note: connect both cold and ground
to make cable from balanced to unbalanced
LINK (uscita)
XLR bilanciato femmina
LINK (output)
Balanced female XLR
ground
hot
cold
ACCESSORIES ACCESSORI
KP210 - SPEAKER STAND - SUBWOOFER / SPEAKER ALUMINIUM BLACK FINISH
SUPPORTO ALTOPARLANTI - SUBWOOFER / ALTOPARLANTE ALLUMINIO FINITURA NERO
CONTROL PANEL (FIG.2) PANNELLO DI CONTROLLO (FIG. 2)
