PROEL suggested
equipment:
Mseries mixer
Subwoofer output of
analog or digital
loudspeaker processor
RIGHT
NET12A (sat) +
SW115HA (sub)
LEFT
NET12A (sat) +
SW115HA (sub)
LEFT
NET10A
RIGHT
NET10A
basic stereo system
1x SW115HA
+
2x NET10A
500W + 250W x2
= 1000W
standard stereo system
2x SW115HA
+
2x NET12A
500W x2 + 400W x2
= 1800W
subwoofer reinforcement
PHASE must be the
same for all subs
LA FASE deve essere
la stessa per tutti i sub
set the PHASE switch
to obtain the louder bass level
typical with sub at centre and sats at sides is:
160Hz / 180° / level at half respect to sat
impostare l’interruttore della FASE
per ottenere il maggior livello di bassi
tipicamente con il sub al centro e sat ai lati è:
160Hz / 180° / livello a metà rispetto ai sat
RIGHT
FLASH12HA (sat) +
SW115HA (sub)
LEFT
FLASH12HA (sat) +
SW115HA (sub)
portable stereo system
2x SW115HA
+
2x FLASH12HA
500W x2 + 500W x2
= 2000W
typical switch
setting for this configuration
impostazione tipica degli
interruttori per questa configurazione
typical switch
setting for this configuration
impostazione tipica degli
interruttori per questa configurazione
L
“WARNING”TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK
DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE
AC~ POWER
ON SIGN
LIMIT
LINE INLINK
LEVEL
CAUTION!
RISK OF ELECTRICSHOCK
DO NOT OPEN
“WARNING”TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK
DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE
AC~ POWER
ON SIGN
LIMIT
LINE INLINK
LEVEL
CAUTION!
RISK OF ELECTRICSHOCK
DO NOT OPEN
“WARNING”TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK
DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE
AC~ POWER
ON SIGN
LIMIT
LINE INLINK
LEVEL
CAUTION!
RISK OF ELECTRICSHOCK
DO NOT OPEN
“WARNING”TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK
DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE
AC~ POWER
ON SIGN
LIMIT
LINE INLINK
LEVEL
CAUTION!
RISK OF ELECTRICSHOCK
DO NOT OPEN
L
R
L
R
L
R
6

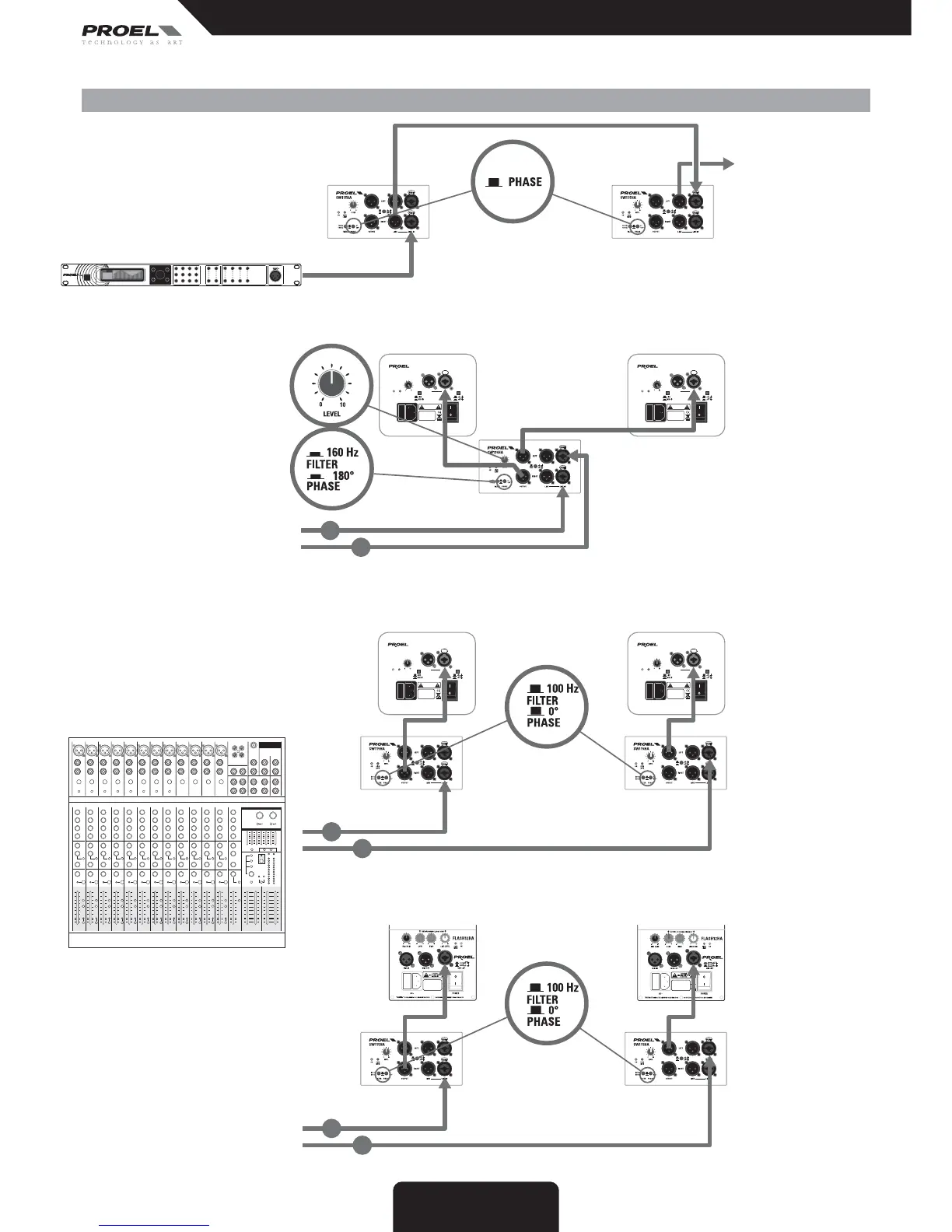

FIG. 3
CONFIGURATION EXAMPLES (FIG. 3) ESEMPI CONFIGURAZIONI (FIG. 3)
