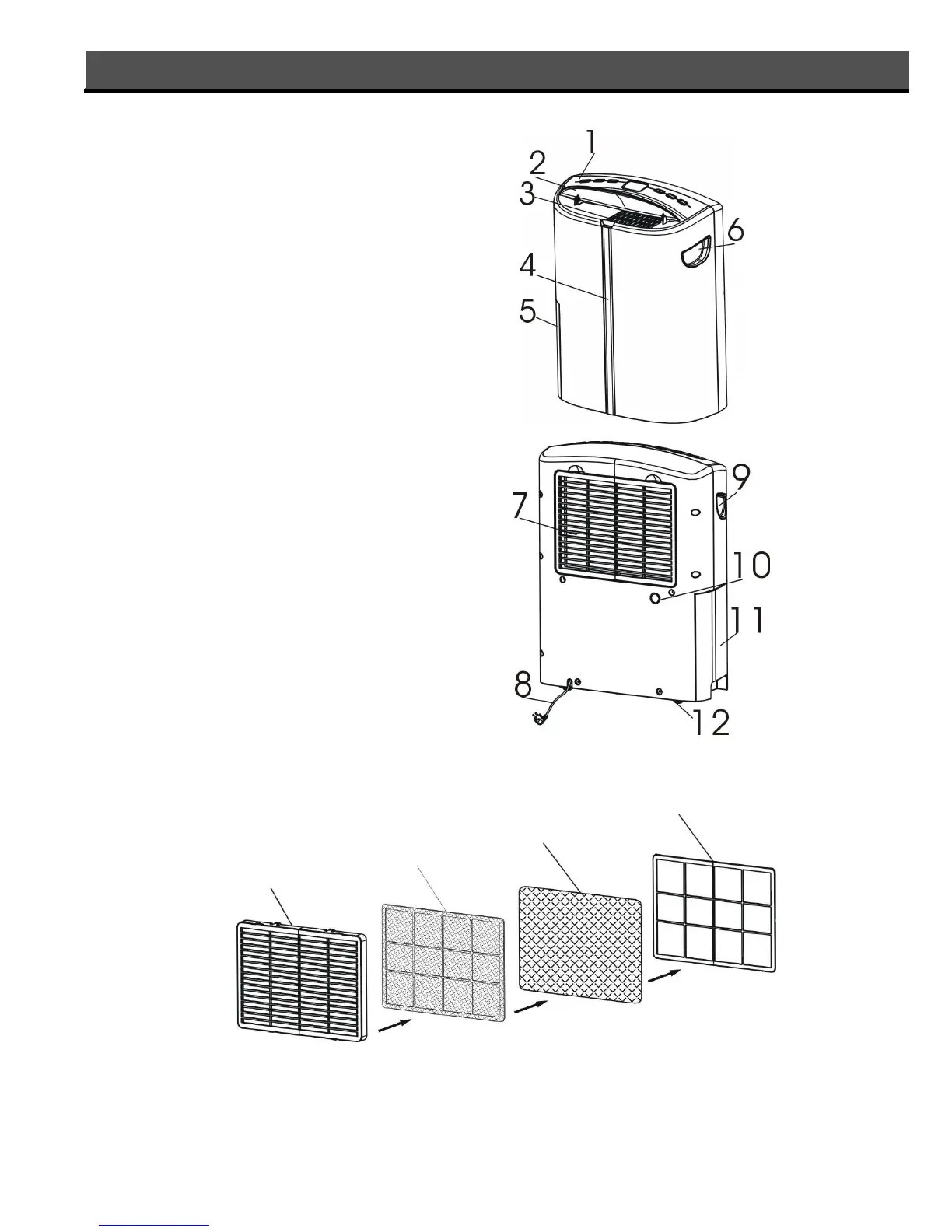

Parts

Front

1. Control panel

2. Cover for air outlet

3. Air outlet

4. Water full indicator

5. Water tank

6. Handle

Rear

7. Air filter / air inlet

8. Power cord

9. Handel

10. Hole for continuous

drainage

11. Water tank

12. Caster

Assembly of the filters

Grille

Washable

filter

Active

carbon filter

Filter fixer
