CONNECTIONS
CABLE/SAT
V
L
R
OUT
Stereo Audio/Video
Patch Cable
CABLE/SAT
A/V OUT
M40 VID 3 Audio IN
M40 VID 3 Video IN

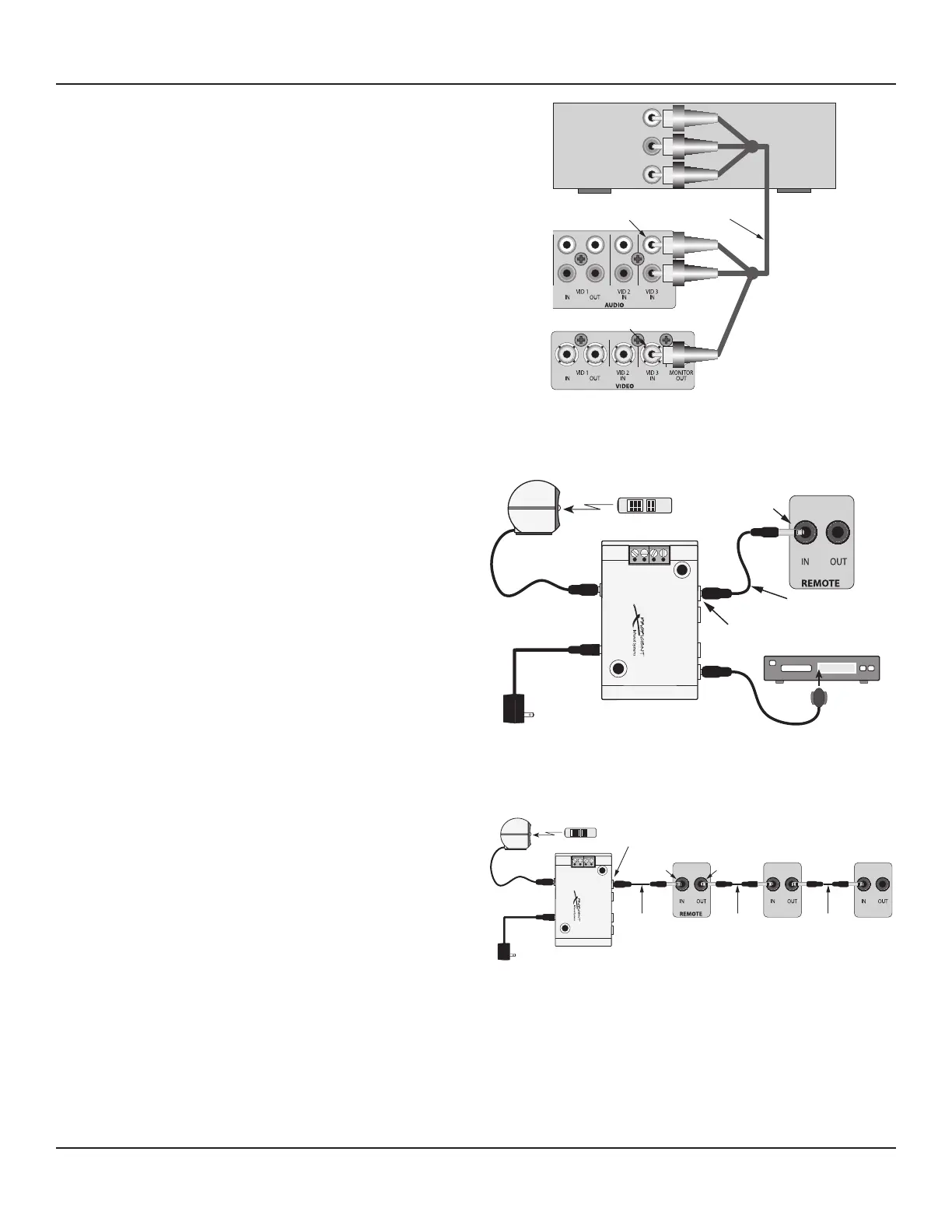

Diagram 15 Video 3 Connections
Video 3 Rear Panel Connections


Diagram 15




IR Single Flasher
w/red LED
DVD
Remote Control
FLASHERS
STATUS IN
5-24V DC
IR
RCVR
12V DC
REGULATED
FLASHERS
+12V GND ST OUT IR IN
IR Router
IR Router
M40 Rear Panel
Flasher Out
IR Power
Supply
IR Shelf Top
Receiver
Remote IN
Mono Mini to
Mono Mini Cable
Diagram 16 Remote IN Connections with IR Flashers
Remote IN/OUT Connections









Diagram 16





Diagram 17



Note:




To make M40 Remote IN/OUT Connections:
1. 


2. 


 (Diagram 16)
M40
Rear Panel
Remote IN
Mono Mini to
Mono Mini Cable
Source A
Rear Panel
Source B
Rear Panel
Remote Control
FLASHERS
STATUS IN
5-24V DC
IR
RCVR
12V DC
REGULATED
FLASHERS
+12V GND ST OUT IR IN
IR Router
IR Router
IR Power
Supply
IR Shelf Top
Receiver
Mono Mini to
Mono Mini Cable
Mono Mini to
Mono Mini Cable
Flasher OUT
Remote OUT
IR CONTROL IR CONTROL
Diagram 17 Remote IN/OUT Connections with IR Control Inputs
3. 

4. 
Diagram 17. 
