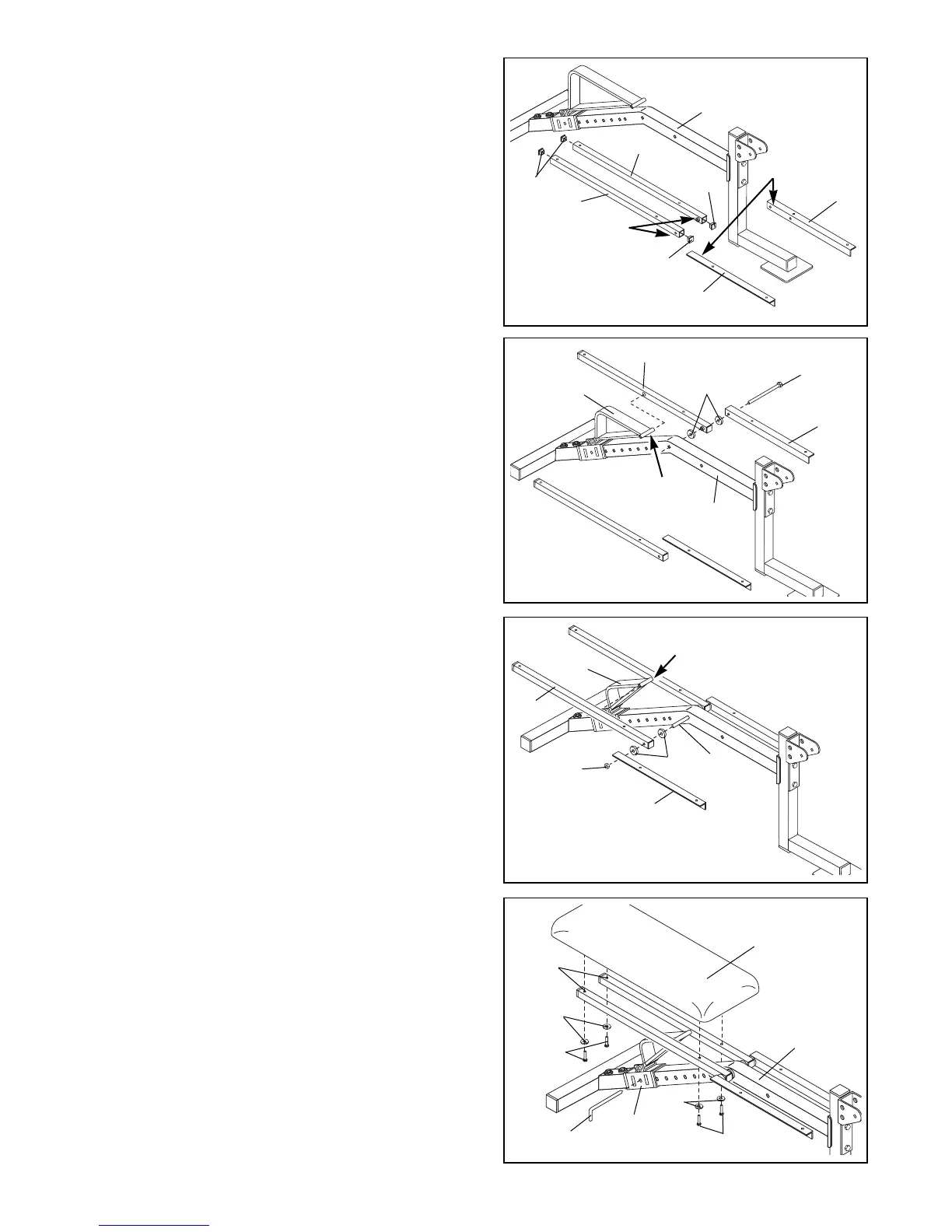

4. Lubricate the M10 x 145mm Bolt (8). Push the Bolt
through the indicated hole in the Right Seat Bracket
(9). Slide a Plastic Washer (21) onto the Bolt.
Push the M10 x 145mm Bolt (8) through the indicated
hole in one Backrest Tube (53). Make sure the
Backrest Tube is oriented as shown in the drawing.
Slide a Plastic Washer (21) onto the M10 x 145mm
Bolt (8). Push the Bolt through the indicated hole in
the Frame (54).
Lift up the Decline Strut (11) and insert the welded
rod (B) into the indicated hole in the Backrest Tube
(53).
21
53
54
9
8
4
3. Press a 1Ó Square Inner Cap (57) into each end of
the two Backrest Tubes (53). Place the Backrest
Tubes on the floor, one on each side of the Frame
(54). Orient the Backrest Tubes with the indicated
holes pointed in the direction shown.
Identify the Right (9) and Left (46) Seat Brackets by
looking at the indicated holes. Orient the Seat
Brackets as shown in the drawing and place them on
the floor on their respective sides of the Frame.
3
46
9
53
Holes
Holes
53
54
57
57
57
5. Slide a Plastic Washer (21) onto the M10 x 145mm
Bolt (8). Slide the remaining Backrest Tube (53) over
both the Bolt and the welded Rod (B) on the other
side of the Decline Strut (11).
Slide a Plastic Washer (21) onto the M10 x 145mm
Bolt (8). Slide the Left Seat Bracket (46) onto the Bolt
and secure it with an M10 Nylon Locknut (1). Do not
overtighten the Nylon Locknut. You must be able
to easily pivot the Seat Brackets and Backrest
Tubes.
5
6. Attach the Backrest (15) to the Backrest Tubes (53)
with four M6 x 38mm Screws (4) and four M6
Washers (68).
Insert the Short ÒLÓ-Pin (63) through the hole in the
Decline Carriage (44) and the Frame (54).
6
11
8
21
B
B
11
53
1
46
15
54
68
53
4
44
63
4
68
