12
7
60
54
46
82
140
35
4
Grease

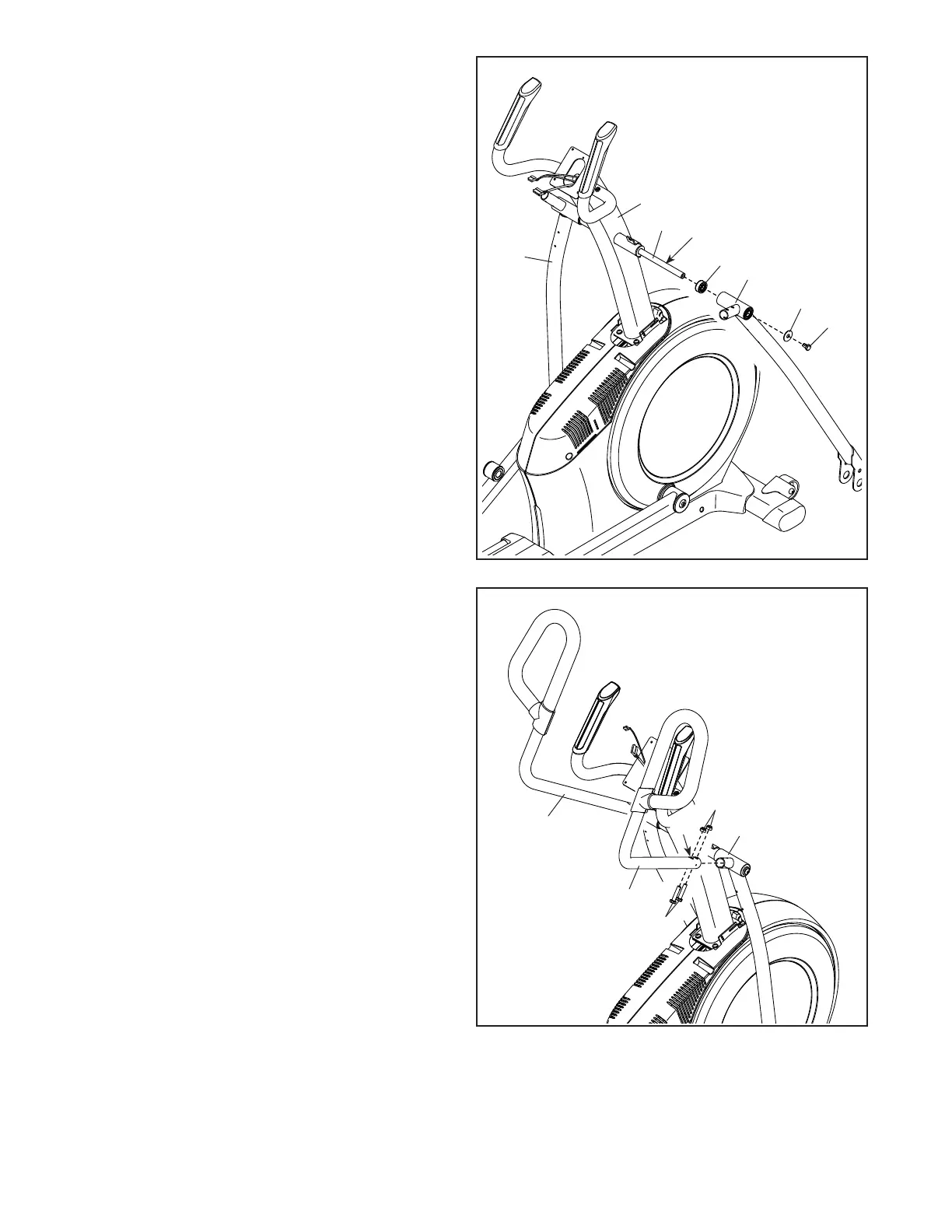

7. Using a plastic bag to keep your fingers clean,
apply some of the included grease to the Pivot
Axle (35).
Insert the Pivot Axle (35) through the Upright (4)
and center it. Tip: It may be helpful to use a
rubber mallet.
Next, slide a Pivot Spacer (54) onto the right
side of the Pivot Axle (35).
Then, identify the Right Upper Body Leg (60),
orient it as shown, and slide it onto the right side
of the Pivot Axle (35).
Repeat these actions for the Left Upper Body
Leg (46).
Then, tighten an M8 x 13mm Screw (82) with an
M8 x 28mm Washer (140) into each end of the
Pivot Axle (35) at the same time.
8. Identify the Right Upper Body Arm (61), orient it
as shown, and slide it onto the Right Upper Body
Leg (60).
Attach the Right Upper Body Arm (61) with two
M8 x 38mm Bolts (96) and two M8 Locknuts
(102); make sure that the Locknuts are in the
hexagonal holes (C).
Repeat this step for the Left Upper Body
Arm (47).
8
C
60
61
47
96
102
