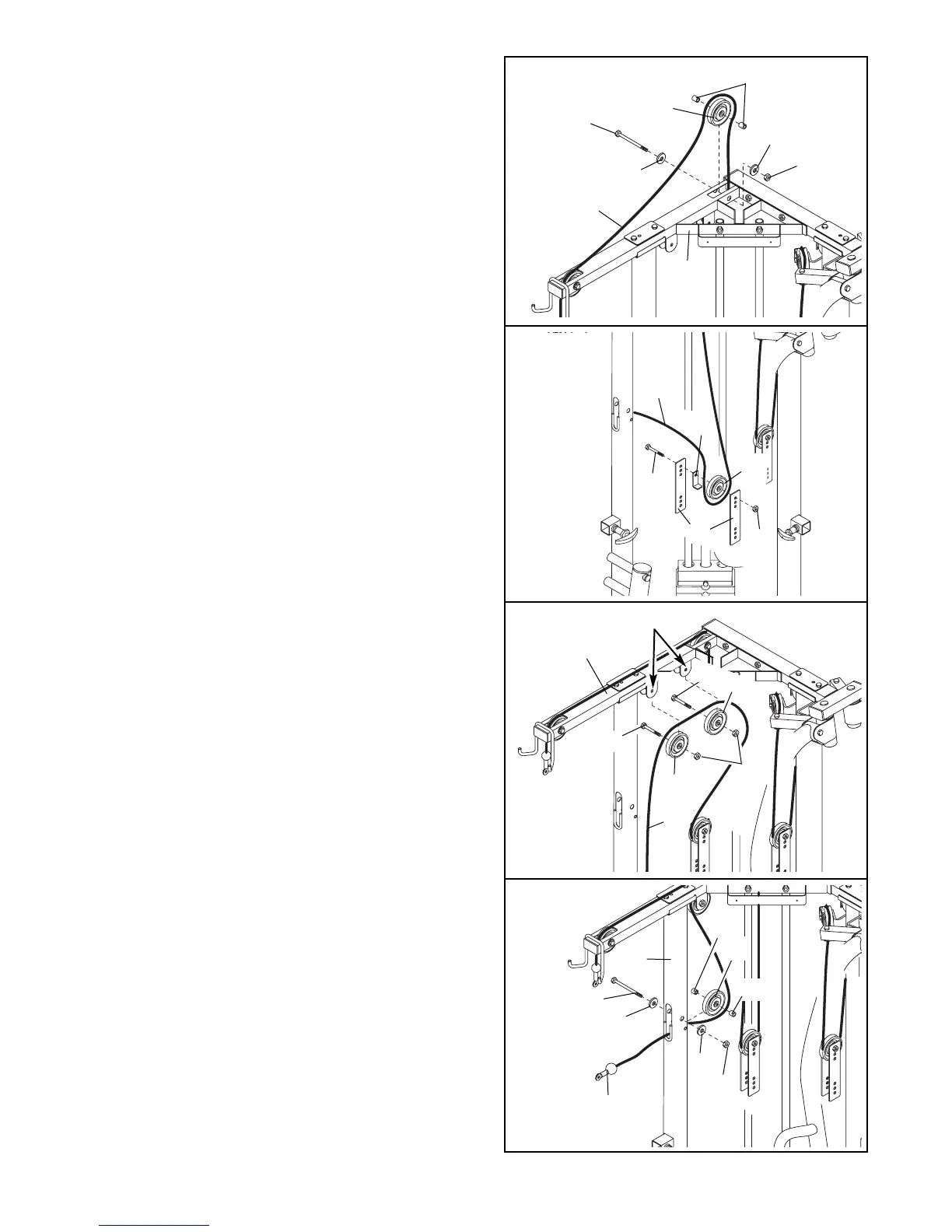

26. Wrap the Ab Cable (47) around a 3 1/2” Pulley (24).
Insert the Ab Cable down through the Press Top
Frame (9).
Slide a 3/8” Washer (48) and a 5/8” x 3/4” Bushing
(66) onto a 3/8” x 3 1/4” Bolt (62). Slide the Bolt
through the Press Top Frame (9) and the 3 1/2”
Pulley (24). Secure another 5/8” x 3/4” Bushing and
3/8” Washer to the Bolt with a 3/8” Nylon Locknut
(50).
27. Remove the preassembled 3/8” x 2” Bolts (54) from
the other Adjustable Pulley Plates (23).
Wrap the Ab Cable (47) around a 3 1/2” Pulley (24).
Attach the Pulley and a Cable Trap (25) between
the top holes in the Adjustable Pulley Plates (23)
with a 3/8” x 2” Bolt (54) and a 3/8” Nylon Locknut
(50). Be sure that the Cable Trap is turned to
hold the Cable in place.
28. Wrap the Ab Cable (47) around a 3 1/2” Pulley (24).
Attach the Pulley to the rear bracket on the Press
Top Frame (9) with a 3/8” x 2” Bolt (54) and a 3/8”
Nylon Locknut (50). Be sure the Ab Cable is rout-
ed in the direction shown.
Wrap the Ab Cable (47) around another 3 1/2”
Pulley (24). Attach the Pulley to the forward bracket
on the Press Top Frame (9) with a 3/8” x 2” Bolt
(54) and a 3/8” Nylon Locknut (50).
29. Wrap the Ab Cable (47) around a 4 1/2” Pulley (82)
and slide the Ab Cable through the hole in the
Press Upright (2).
Slide a 3/8” Washer (48) and a 5/8” x 1” Bushing
(103) onto a 3/8” x 3 3/4” Bolt (102). Slide the Bolt
through the Press Upright (2) and the 4 1/2” Pulley
(82). Secure another 5/8” x 1” Bushing and 3/8”
Washer to the Bolt with a 3/8” Nylon Locknut (50).
