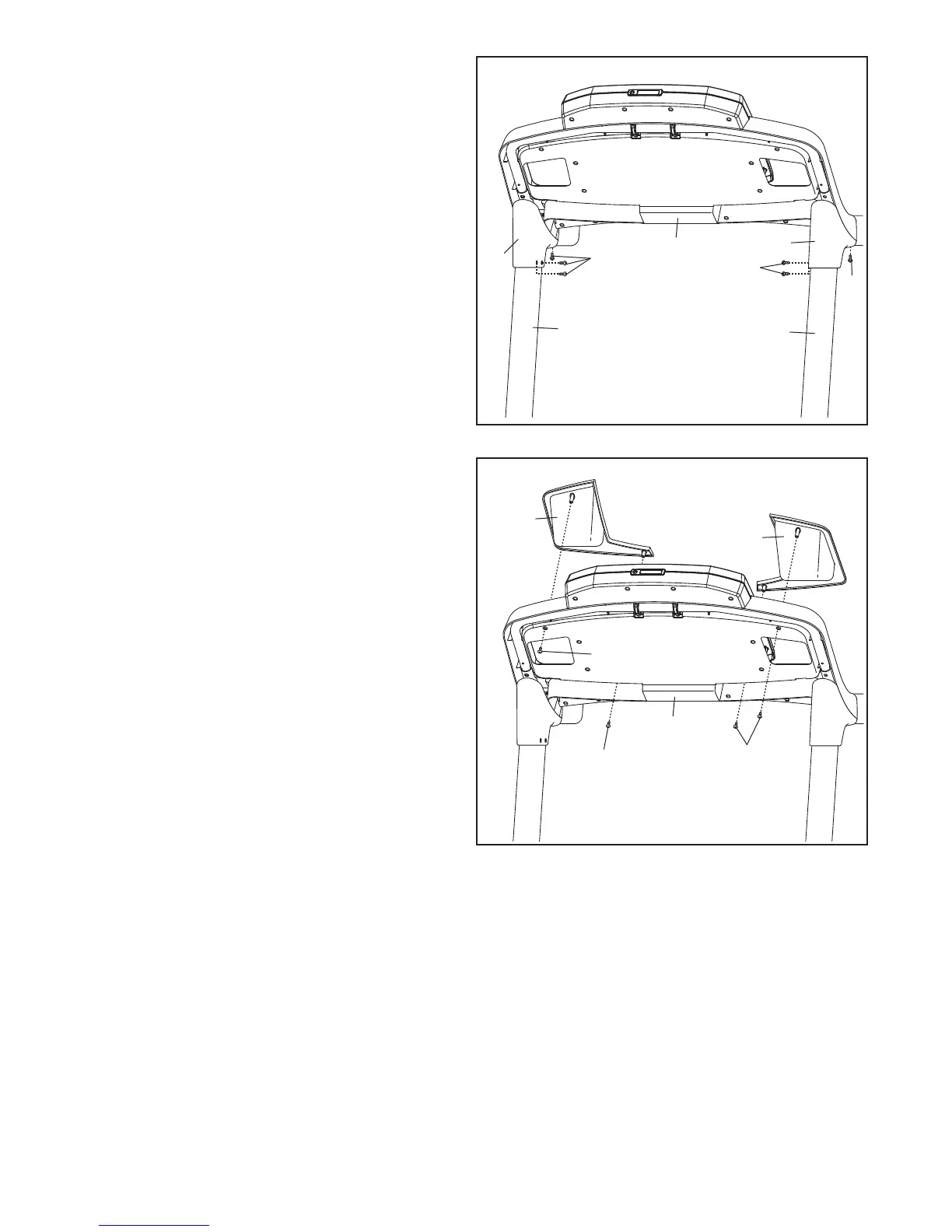

14. Hold the Left Upright Cover (79) against the
console assembly. Align the holes in the Left
Upright Cover with the holes in the Left Upright
(89). Attach the Left Upright Cover with three #8
x
1/2" Screws (1).
Attach the Right Upright Cover (80) to the
Right Upright (90) in the same way.
1
4
89
1
Console
Assembly
79
1
90
80
1
15. Attach the Left Tray (107) and the Right Tray
(108) to the console assembly with four #8 x 1/2"
Screws (1).
107
108
15
Console
Assembly
1
1
1
To Next Page
